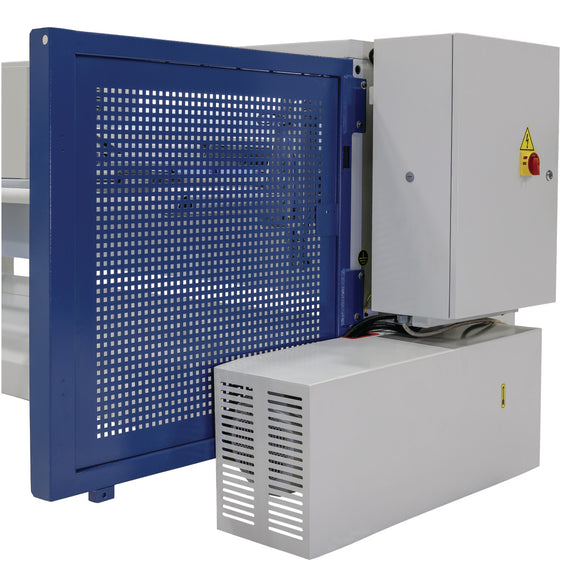

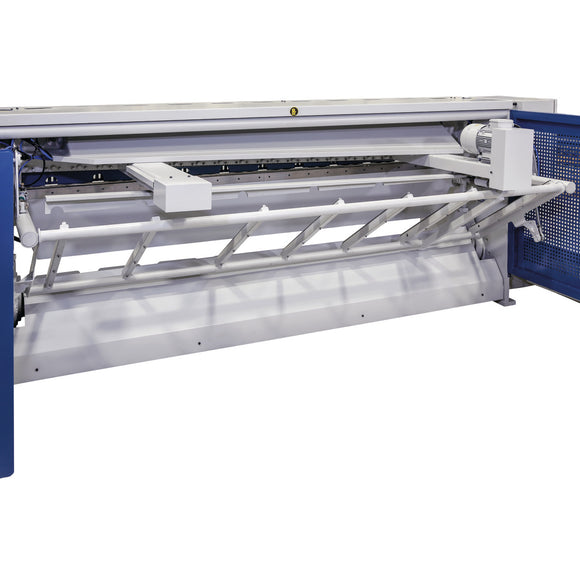

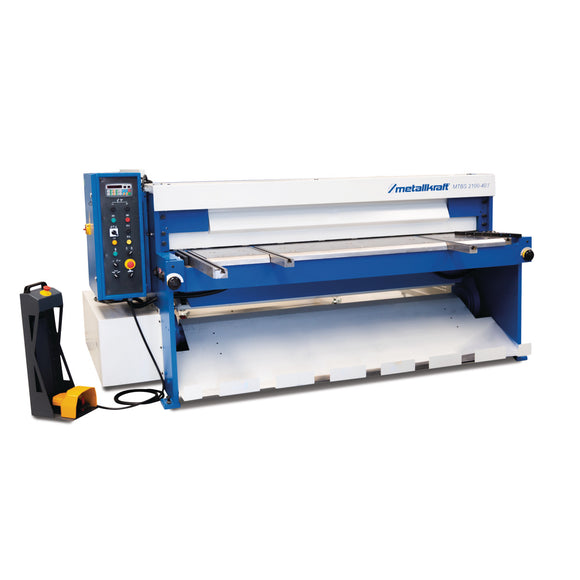

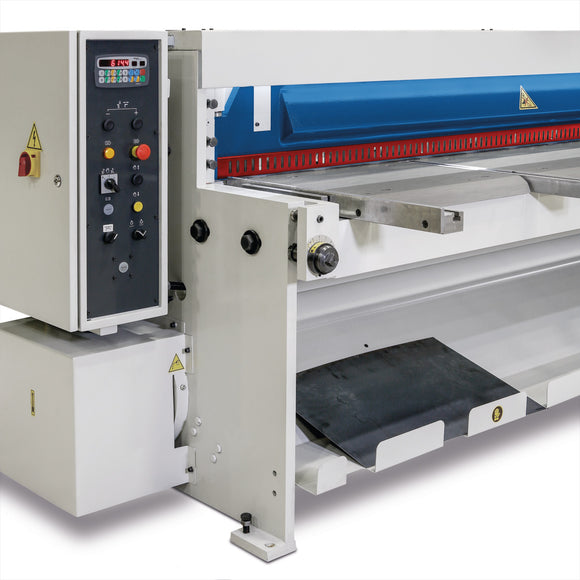

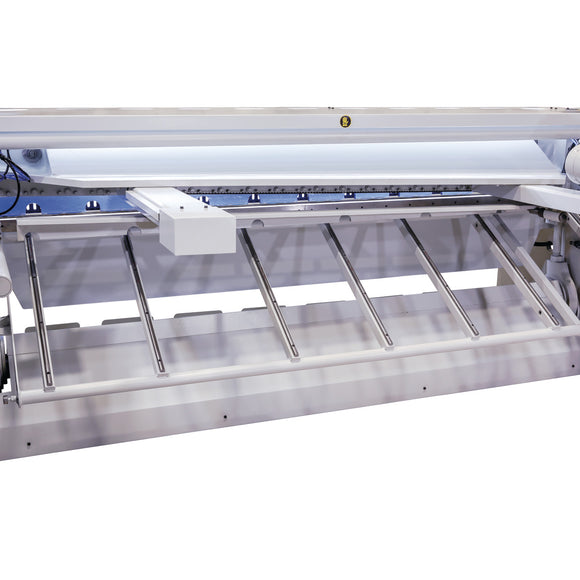

Motorized sheet metal shears MTBS 3130-40 T

• Absorbed motor power 8,45 kW
• Air consumption per cycle 14 l
• Cutting angle 1,5 °
• Cutting kerf adjustment max. 0,4 mm
• Cutting kerf adjustment min. 0,05 mm
• Cutting performance (400 N/mm²) 4 mm
• Cutting performance (450 N/mm²) 4 mm
• Cutting performance (700 N/mm²) 2,5 mm
• Delivery power 11 kW
• Duty type drive motor S1
• Frequency 50 Hz
• Height 1500 mm
• Length 3910 mm
• Machine body depth 1080 mm
• Max. strokes for full cutting length 38 /min
• Motor duty cycle 100 %
• Motor output rear stop 0,37 kW
• Net weight 5000 kg
• Rear stop range 750 mm
• Rear stop speed 28 mm/s
• Sheet support arms 3 St
• Side stop length 1000 mm
• Star-delta start-up ✔
• Supply voltage 400 V
• Table depth 530 mm
• Table height 900 mm
• Table length 3400 mm
• Table support made of stainless steel ✔
• Total current draw 16,4 A
• Total rated value 9 kW
• Width 2500 mm
• Working width 3050 mm
