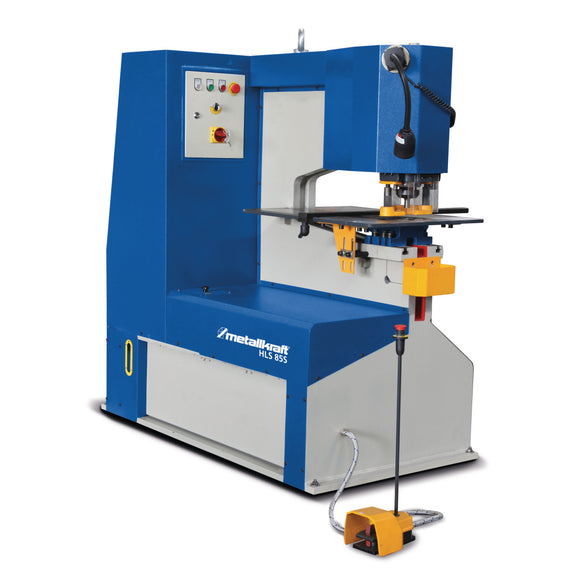

Hydraulic punch HLS 85 S

• Frequency 50 Hz
• Height 1920 mm
• Length 1850 mm
• Max. punching station diameter x sheet thickness (steel 400 N/mm²) 57 x 12 mm
• Motor power 7,5 kW
• Net weight 3270 kg
• Punching force 85 t
• Punching station diameter x max. sheet thickness (steel 400 N/mm²) 33 x 20 mm
• Punching station max. lift stroke 80 mm
• Punching station reach 625 mm
• Punching station stroke count 21 /min
• Punching station working height 950 mm
• Sheet metal bending max. width x thickness (accessory) 500 x 3 mm
• Supply voltage 400 V
• Width 950 mm

• Stamp holder with bayonet lock
• Stamp and Die Reductions No. 1, No. 2, No. 3, No. 30, No. 45 and No. 60
• Stop with scale
• pedal
• hook wrench
• hydraulic oil
