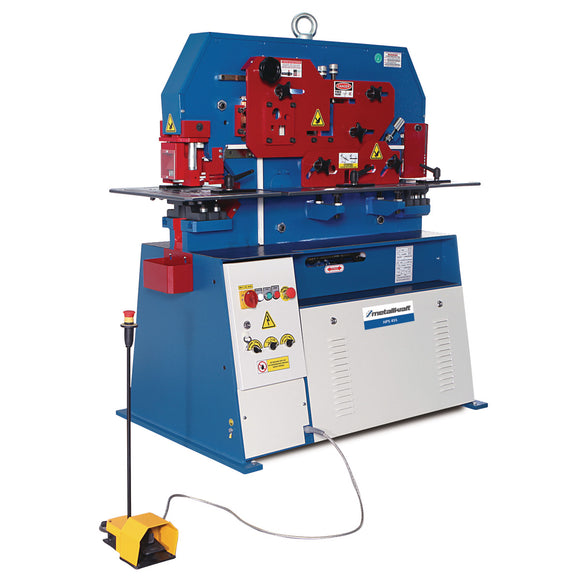

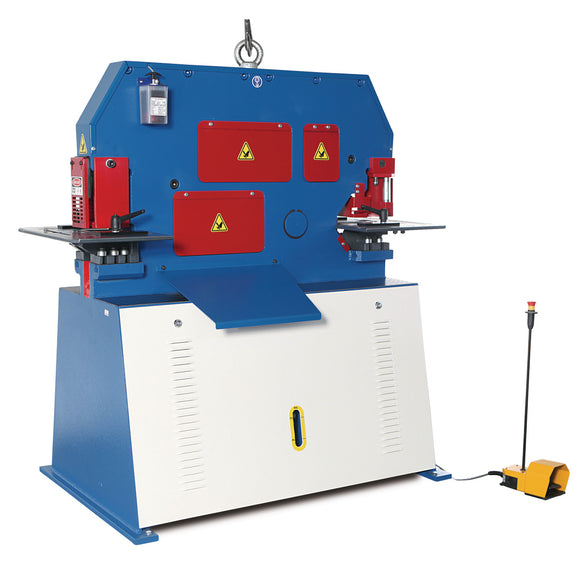

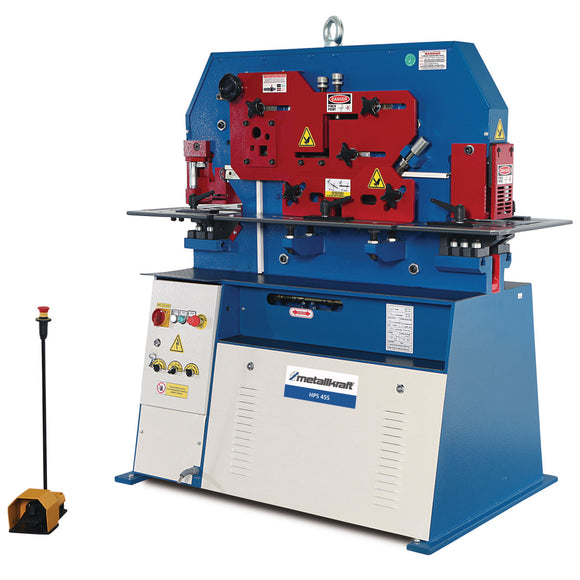

Hydraulic sectional steel shears / punching machine HPS 45 S

• Angled steel shears cutting capacity 45° L section 70 x 6 mm
• Angled steel shears cutting capacity 90° L section 100 x 100 x 10 mm
• Angled steel shears cutting capacity T section (accessory) 40 x 5 mm
• Angled steel shears working height 1140 mm
• Flat steel shears angled cut 45° max. leg length x max. thickness 80 x 10 mm
• Flat steel shears knife length 316 mm
• Flat steel shears material max. width x thickness 300 x 12 mm
• Flat steel shears material width x max. thickness 200 x 15 mm
• Flat steel shears working height 955 mm
• Frequency 50 Hz
• Height 1680 mm
• Length 1500 mm
• Max. notching depth 75 mm
• Max. notching width 35 mm
• Max. punching station diameter x sheet thickness (steel 400 N/mm²) 38 x 8 mm
• Motor power 4 kW
• Net weight 1400 kg
• Notching station max. material thickness 8 mm
• Punching force 45 t
• Punching station diameter x max. sheet thickness (steel 400 N/mm²) 22 x 15 mm
• Punching station max. lift stroke 50 mm
• Punching station reach 175 mm
• Punching station stroke count 20 /min
• Punching station working height 955 mm
• Steel bar shears capacity round material 30 mm
• Steel bar shears capacity square material 25 mm
• Supply voltage 400 V
• V notching tools (accessory) 100 x 100 x 8 mm
• Width 950 mm

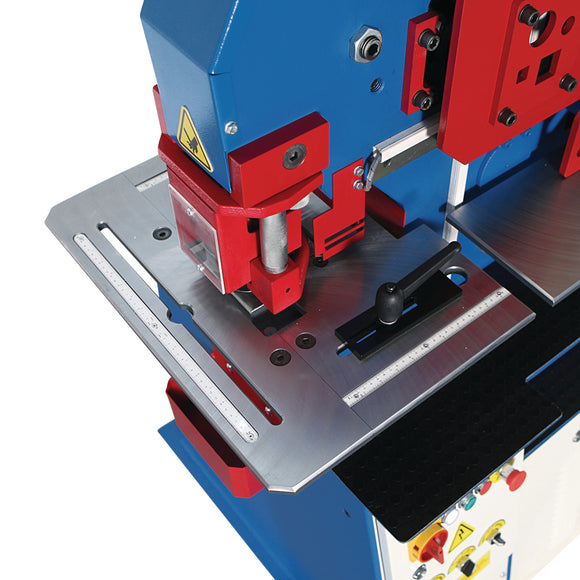

• Punching station
• Flat shear
• Angle Shear
• Section steel shears with round and square blade
• Notching
• Stamp holder with bayonet lock
• Stamp and die reductions No. 1, No. 2, No. 3, No. 30, No. 45 and No. 60
• Punch, flat steel scissors and notch with adjustable stops
• Hook wrench
• Pedal
• Hydraulic oil
