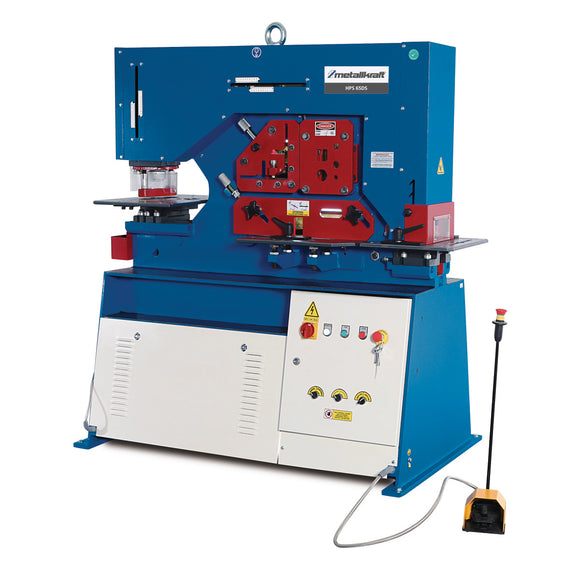

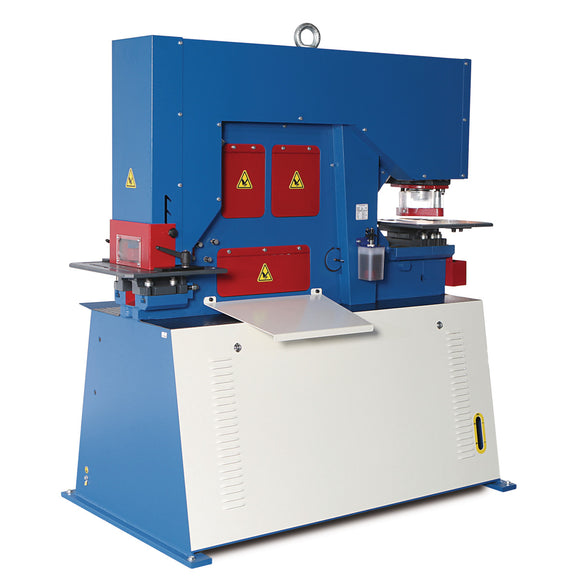

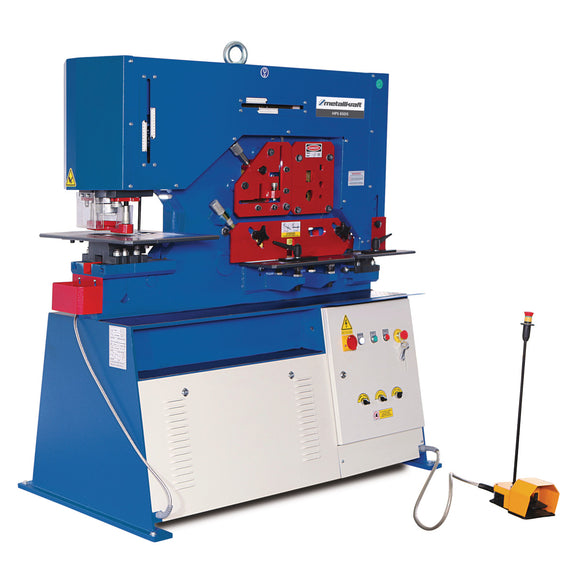

Hydraulic sectional steel shears / punching machine HPS 65 DS

• Angled steel shears cutting capacity 45° L section 70 x 10 mm
• Angled steel shears cutting capacity 90° L section 120 x 120 x 12 mm
• Angled steel shears cutting capacity T section (accessory) 90 x 11 mm
• Angled steel shears working height 1140 mm
• Flat steel shears angled cut 45° max. leg length x max. thickness 100 x 15 mm
• Flat steel shears knife length 380 mm
• Flat steel shears material max. width x thickness 375 x 15 mm
• Flat steel shears material width x max. thickness 300 x 20 mm
• Flat steel shears working height 900 mm
• Frequency 50 Hz
• Height 1880 mm
• Length 1700 mm
• Max. notching depth 90 mm
• Max. notching width 45 mm
• Max. punching station diameter x sheet thickness (steel 400 N/mm²) 57 x 10 mm
• Motor power 5.5 kW
• Net weight 1600 kg
• Notching station max. material thickness 10 mm
• Punching force 65 t
• Punching station diameter x max. sheet thickness (steel 400 N/mm²) 26 x 20 mm
• Punching station max. lift stroke 55 mm
• Punching station reach (factory option) 620 mm
• Punching station reach 305 mm
• Punching station stroke count 25 /min
• Punching station working height 900 mm
• Steel bar shears capacity round material 45 mm
• Steel bar shears capacity square material 45 mm
• Supply voltage 400 V

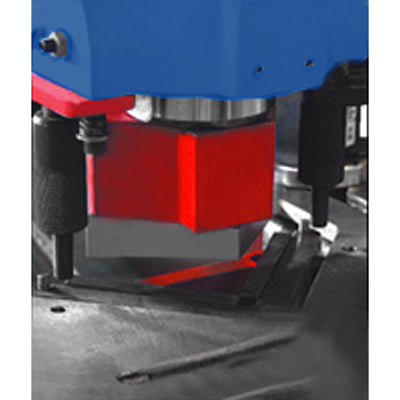

• V notching tools (accessory) 100 x 100 x 10 mm
• Width 950 mm

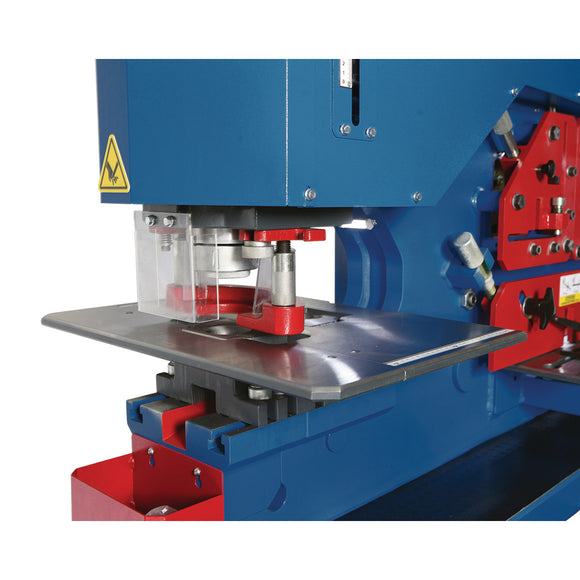

• punching station

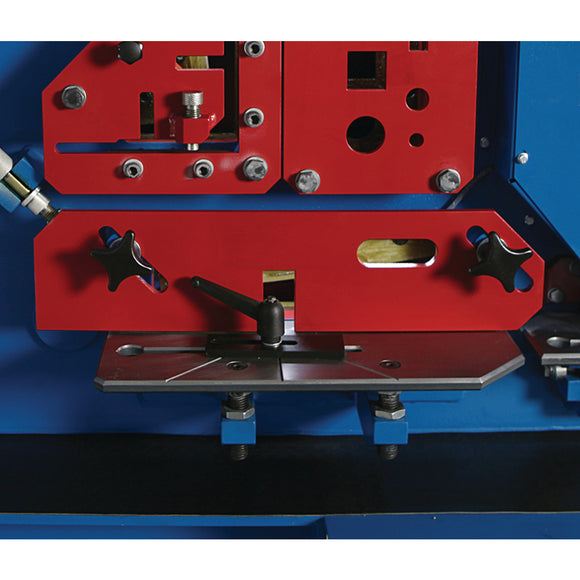

• Flat shear

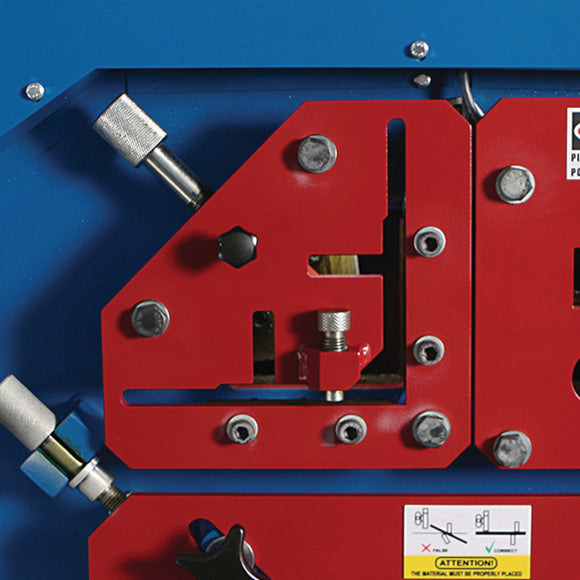

• Angle Shear

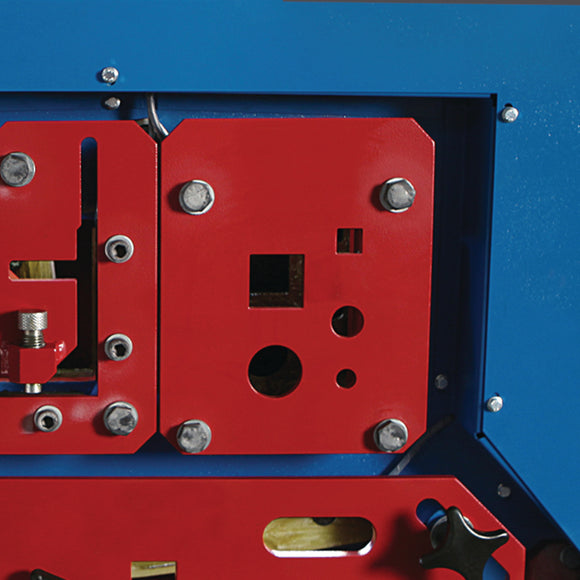

• Section steel shears with round and square blade

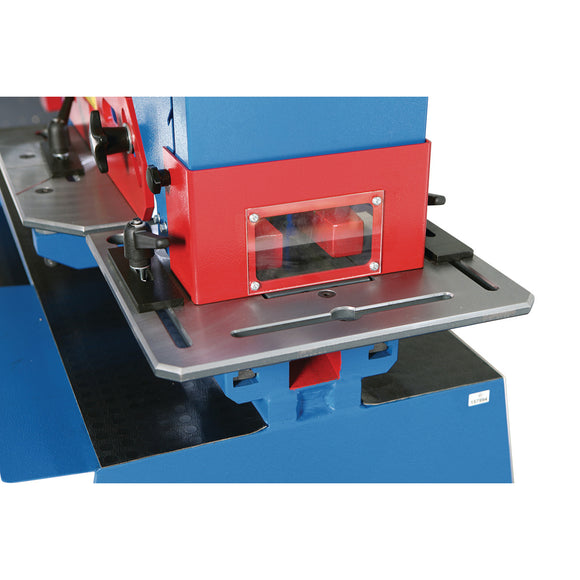

• notching

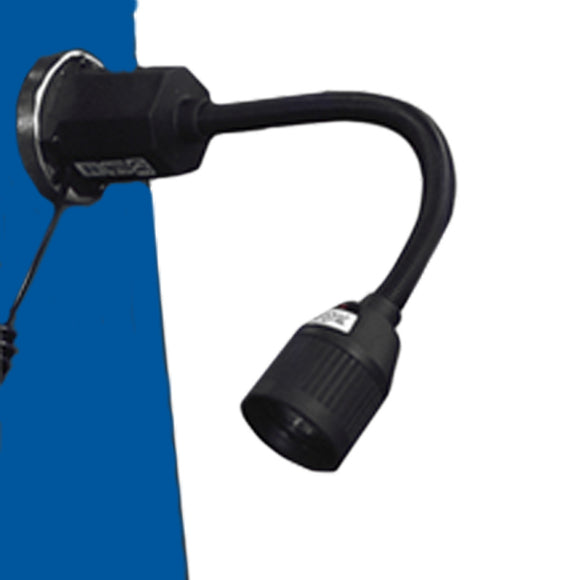

• work light
• Electrical contact stroke
• Stamp holder with bayonet lock
• Stamp and Die Reductions # 1, # 2, # 3, # 30, # 45, # 60

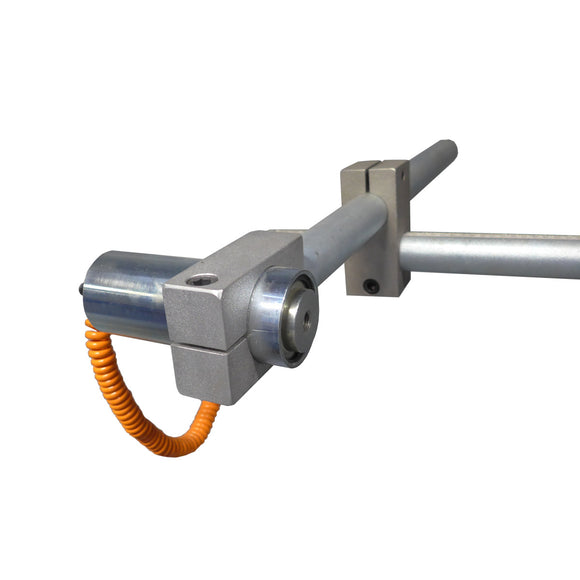

• Punch with adjustable stop with scale, flat steel scissors and notch with adjustable stops
• hook wrench
• 2 working cylinders and 2 foot pedals
• hydraulic oil
