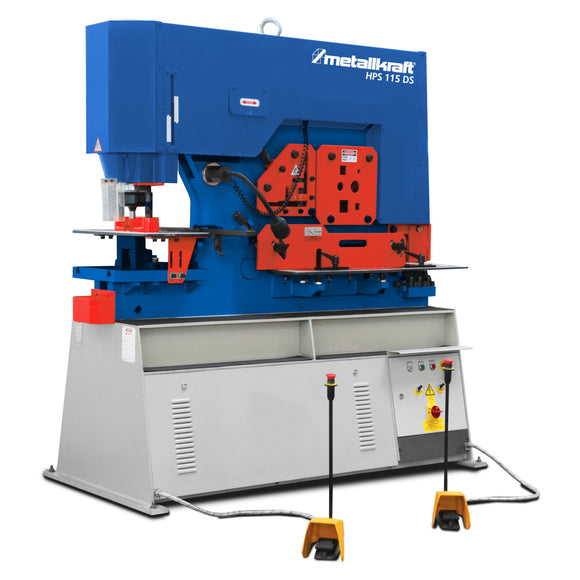

Hydraulic sectional steel shears / punching machine HPS 115 DS

• Angled steel shears cutting capacity 45° L section 80 x 10 mm
• Angled steel shears cutting capacity 90° L section 150 x 150 x 15 mm
• Angled steel shears cutting capacity T section (accessory) 120 x 13 mm
• Angled steel shears working height 1215 mm
• Flat steel shears angled cut 45° max. leg length x max. thickness 120 x 15 mm
• Flat steel shears knife length 610 mm
• Flat steel shears material max. width x thickness 600 x 15 mm
• Flat steel shears material width x max. thickness 380 x 25 mm
• Flat steel shears working height 935 mm
• Frequency 50 Hz
• Height 2180 mm
• Length 2040 mm
• Max. notching depth 100 mm
• Max. notching width 60 mm
• Max. punching station diameter x sheet thickness (steel 400 N/mm²) 55 x 16 mm
• Motor power 11 kW
• Net weight 2920 kg
• Notching station max. material thickness 13 mm
• Punching force 115 t
• Punching station diameter x max. sheet thickness (steel 400 N/mm²) 34 x 26 mm
• Punching station max. lift stroke 80 mm
• Punching station reach (factory option) 620 mm
• Punching station reach 355 mm
• Punching station stroke count 25 /min
• Punching station working height 935 mm
• Steel bar shears capacity round material 55 mm
• Steel bar shears capacity square material 50 mm
• Supply voltage 400 V
• V notching tools (accessory) 100 x 100 x 13 mm
• Width 950 mm

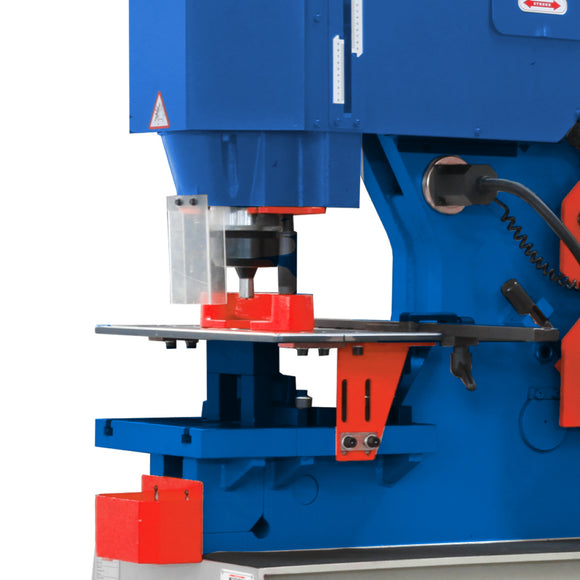

• punching station

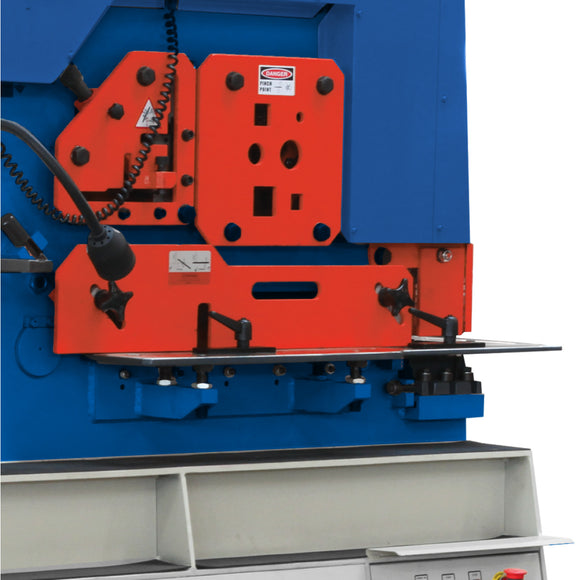

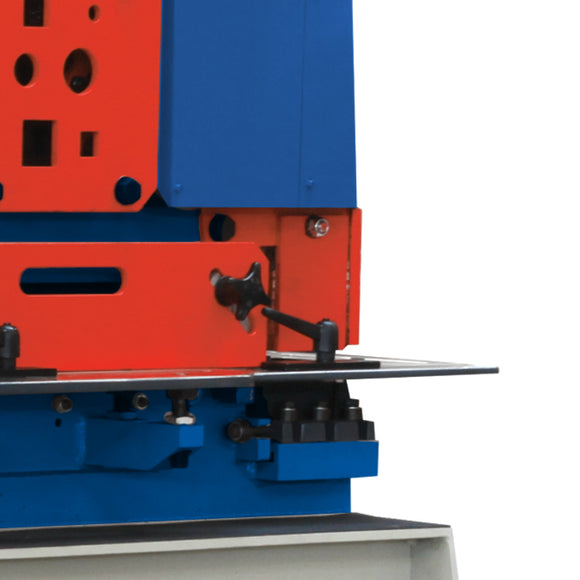

• Flat shear

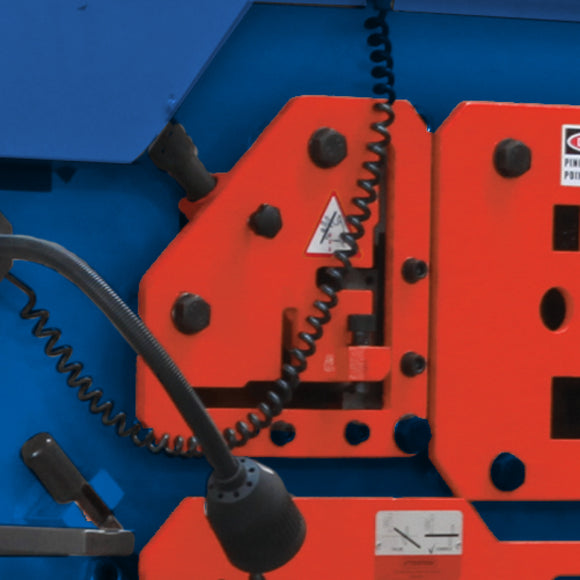

• Angle Shear
• Section steel shears with round and square blade

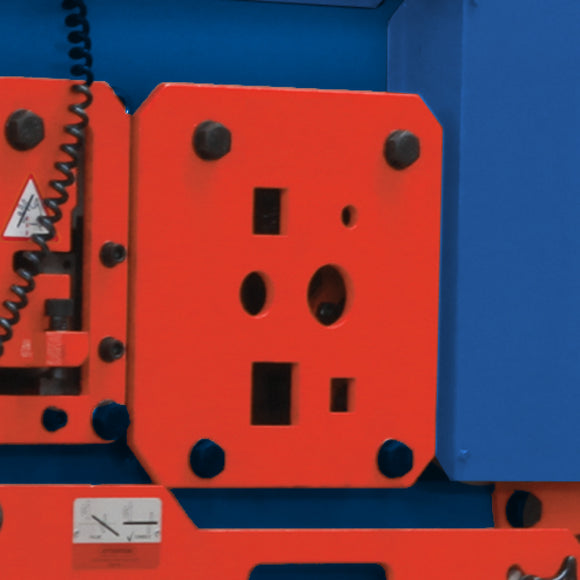

• notching
• work light
• Electrical contact stroke
• Stamp holder with bayonet lock
• Stamp and Die Reductions # 1, # 2, # 3, # 30, # 45, # 60
• Punch with adjustable stop with scale, flat steel scissors and notch with adjustable stops
• hook wrench
• 2 working cylinders and 2 foot pedals
• hydraulic oil
