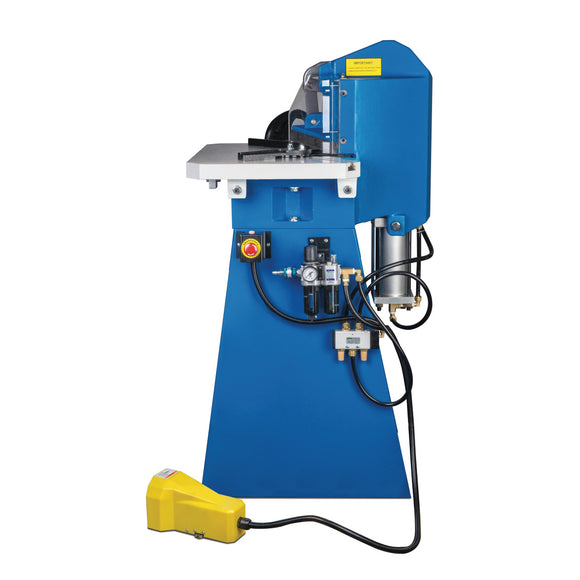

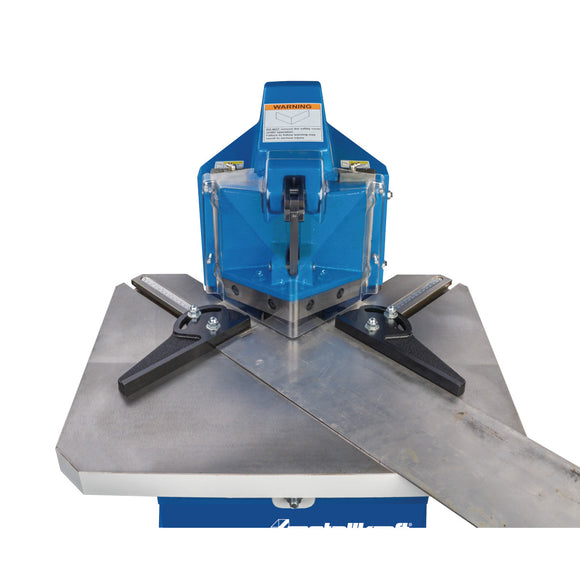

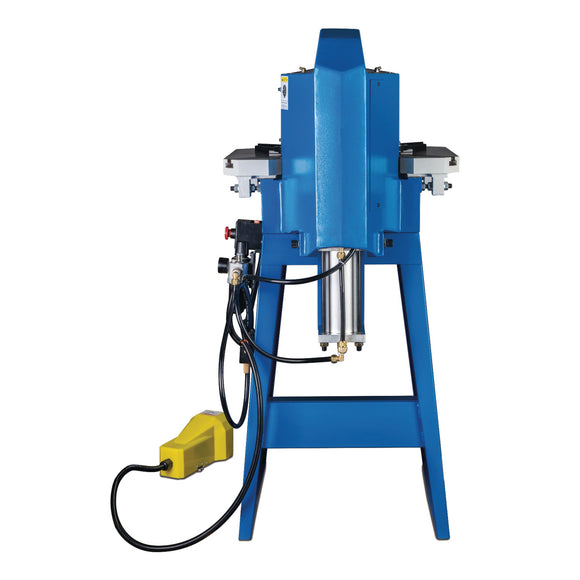

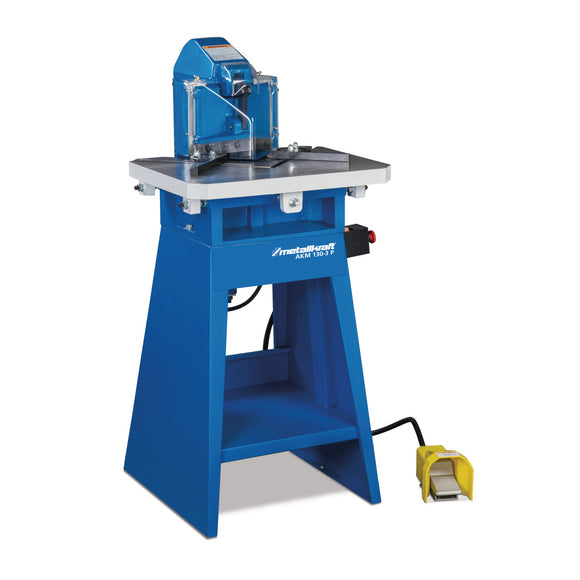

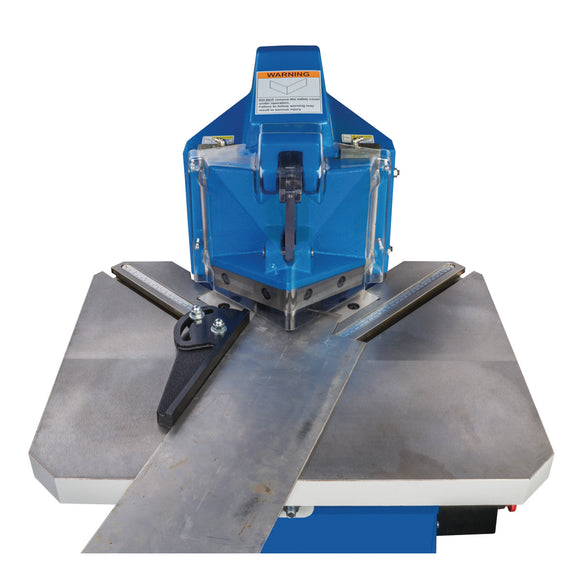

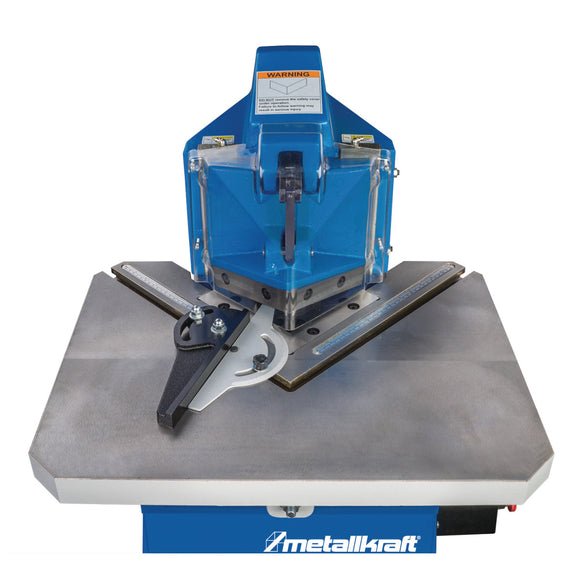

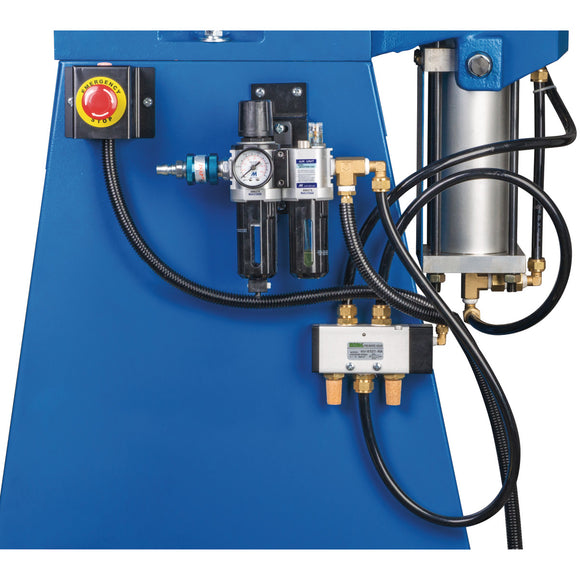

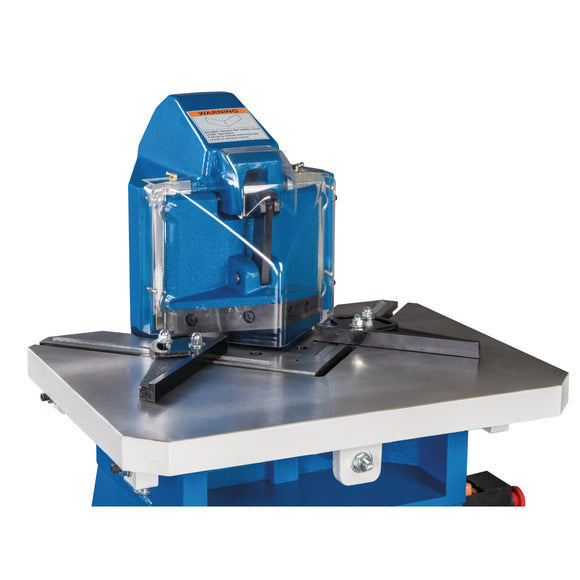

Pneumatic notching machine AKM 130-3 P

• Air consumption per cycle 18 l
• Cutting angle 90 °
• Cutting performance 90° (tensile strength 400 N/mm²) 3 mm
• Cutting performance 90° (tensile strength 600 N/mm²) 1.5 mm
• Cutting pressure max. 2.2 t
• Cutting range length 130 mm
• Cutting range width 130 mm
• Explanation about cutting performance Values for stainless steel (tensile strength 600 N/mm²) only possible with optional blade set
• Height 1260 mm
• Length 820 mm
• Max. height ca. 1260 mm
• Max. length ca. 1020 mm
• Max. width/depth ca. 660 mm
• Net weight 160 kg
• Number of strokes 50 /min
• Sound pressure level operation (1m distance) 68 dB
• Stroke adjustment 3 mm
• Width 460 mm
• Work table height 945 mm
• Work table length 600 mm
• Work table width 460 mm
• Working preasure 7 bar
