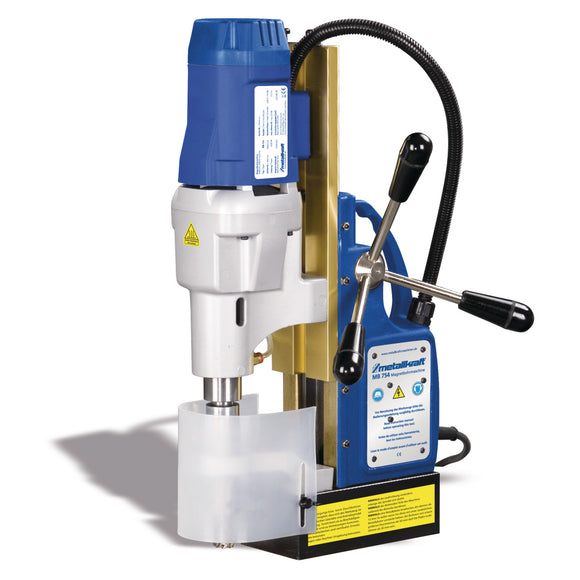

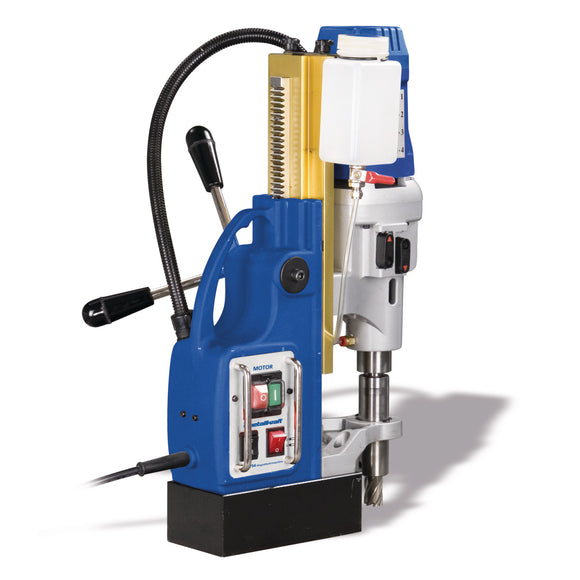

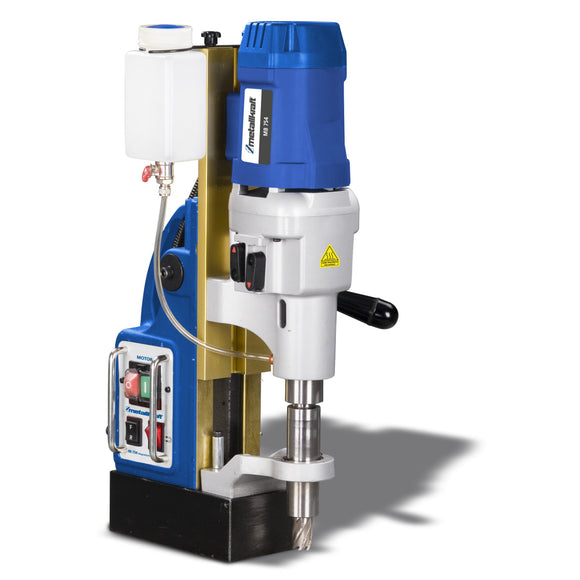

Magnetic core drill MB 754

• Drill adapter Weldon 3/4"
• Frequency 50 Hz
• Height 515 mm
• Length 320 mm
• Magnet base length 200 mm
• Magnet base width 100 mm
• Magnetic force 32000 N
• Max. core drill diameter 75 mm
• Max. drilling depth (direct) 150 mm
• Max. drilling depth (with adapter) 110 mm
• Max. drilling depth 50 mm
• Max. drilling diameter (direct) 32 mm
• Max. drilling diameter (with adapter) 16 mm
• Measurement uncertainty 3 dB(A)
• Motor power 2 kW
• Net weight 24.4 kg
• Sound power level 110 dB(A)
• Sound pressure level 97 dB(A)
• Speed under load 90 / 120 / 180 / 230 min¯¹
• Spindle chuck MK 3
• Supply voltage 230 V
• Vibration level 0.4 m/s²
• Width 280 mm

• 1 coolant tank and coolant line
• 1 protection device
• operating tool
• Plastic carrying case
• 1 chain
• drill drift
• Core drill holder MK 3 / 19mm
