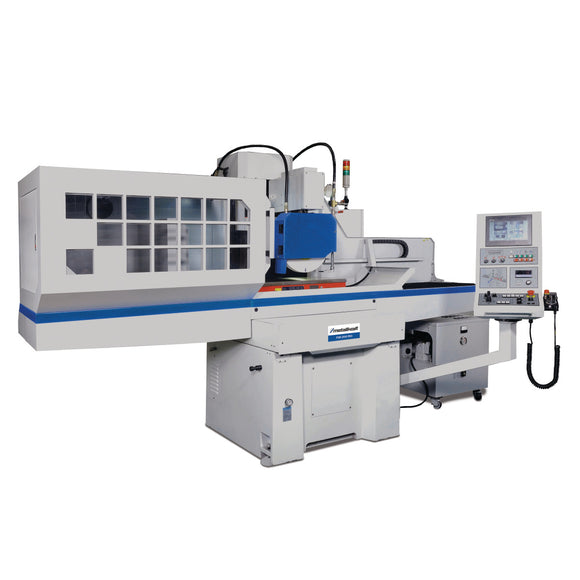

Precision surface grinding machine FSM PRO.
Standard equipment
.
Standard equipment
- 10" touchscreen NC control G1 for Y and Z axes
- Grinding modes: flat grinding, plunge grinding, cross grinding
- Spindle bearing class P4 from NSK guaranteed concentricity of 0. 002 mm Turcite-B coating in the X and Z axes for grinding heavy workpieces
- Backlash-free ball screws in the Y and Z axes
- NC-controlled parallel pull-off and compensation device above the machine table
- Coolant device with magnetic separator
- Partial encapsulation of the work table with monitored door
- Infinitely variable speed of the grinding spindle thanks to an inverter
- Automatic, hydraulic X-axis feed
- Stepless adjustment of the X-axis speed via hydraulic reg elventil
- Automatic, motorized Z-axis feed driven by servo motor
- Adjustment of the end positions in X and Z-axis via joystick
- Automatic, motorized Y-axis feed with servo motor
- electronic handwheel for the Y and Z axes
- automatic central lubrication of all axes/guides
- NC controlled parallel pulling and compensating device on the grinding head
- Automatic balancing device
- Full encapsulation of the grinding area with two sliding doors
- Additional grinding wheel flanges
- Increased motor performance
.
