Hydraulic workshop press WPP 30 BK-1
Hydraulic workshop press WPP 30 BK-2
Hydraulic workshop press WPP 30 BK-3
Hydraulic workshop press WPP 30 BK-4

Hydraulic workshop press WPP 30 BK

€3.811,77 EUR (€3.099,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 4002030 Barcode: 4036351032175

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

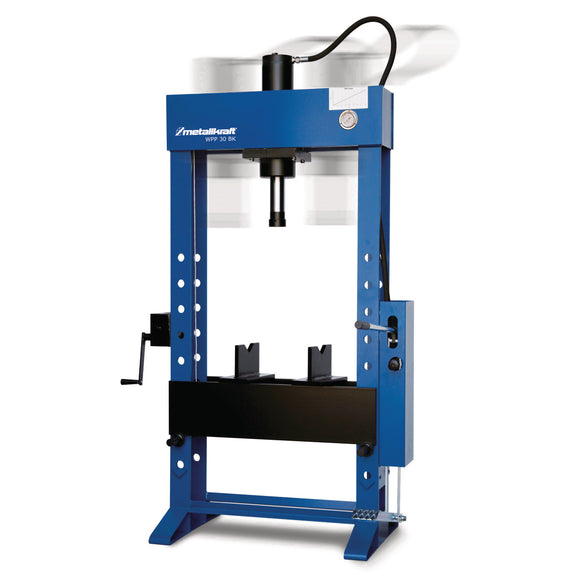

Hydraulic workshop press WPP 30 BK.
  • For all repair and assembly work, eg: straightening axles, girders, shafts, etc. ; Pressing and pressing bearings, bolts and bushings; Pressing and squeezing work; Load tests and welding sample tests; and much more.
  • Stable welded construction
  • Robust frame with perforation for the adjustment of the work table
  • Reliable, particularly precise hydraulic from European production
  • Pressure build-up by hand or foot operation of the pump lever
  • By foot pump both hands free for fixation of the workpiece
  • Pressing pressure readable via manometer
  • With automatic return of the piston
  • With safety valve to protect against overload
  • Quality

Note:
  • For processing flat material, pressing in bearings, bolts and the like, be sure to use the optional perforated plates.


.
  • Clear width 790 mm
  • Diameter piston head 70 mm
  • Diameter piston rod 60 mm
  • Frame depth 200 mm
  • Frequency 50
  • Height 1920 mm
  • Length 1240 mm
  • Max. installation height 1030 mm
  • Max. load on prism jaw 7.5 t
  • Net weight 280 kg
  • Piston stroke 160 mm
  • Piston travel 550 mm
  • Pressure force 30 t
  • Supply voltage 400
  • Width 650 mm
  • 2-piece prism set for inserting round material
  • Hand and foot lever
  • Winch for raising and lowering the table
