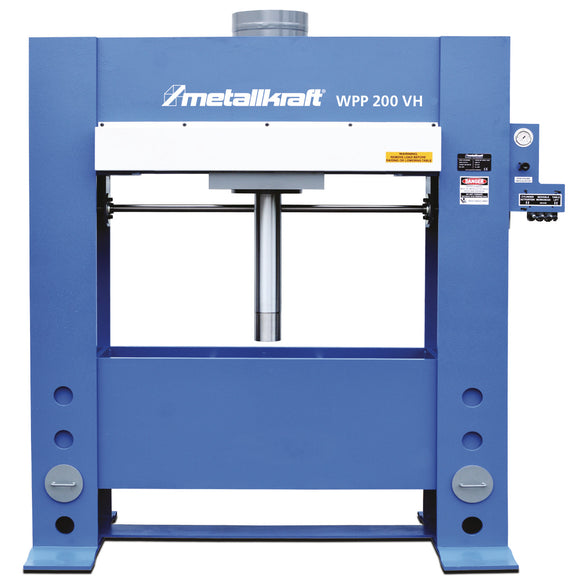

Fully hydraulic workshop press WPP 200 VH

• Clear height max. 761 mm
• Clear width 1523 mm
• Depth without foot 559 mm
• Diameter cylinder 305 mm
• Diameter piston head 305 mm
• Diameter piston rod 126 mm
• Frame depth 508 mm
• Frequency 50 Hz
• Height 2386 mm
• Hole spacing for table height adjustment 203 mm
• Length 2132 mm
• Length of piston nose 63.5 mm
• Lowering speed 7.8 mm/s
• Motor power 7,5 kW
• Motor speed 1465 min¯¹
• Net weight 3455 kg
• Oil capacity (empty cylinder) 76 l
• Piston stroke 508 mm
• Piston travel 508 mm
• Press speed 1.3 mm/s
• Pressure force 200 t
• Return speed 9.5 mm/s
• Supply voltage 400 V
• Width 1066 mm
• Width/depth of machine feet 1066 mm
• Work table length 1523 mm
• Work table width 500 mm
