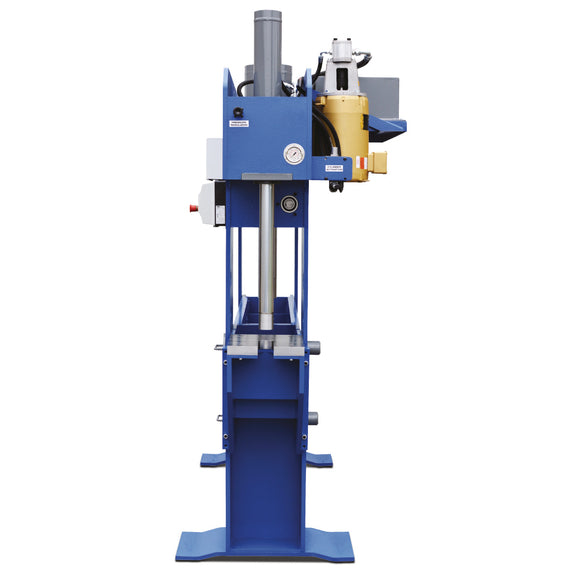

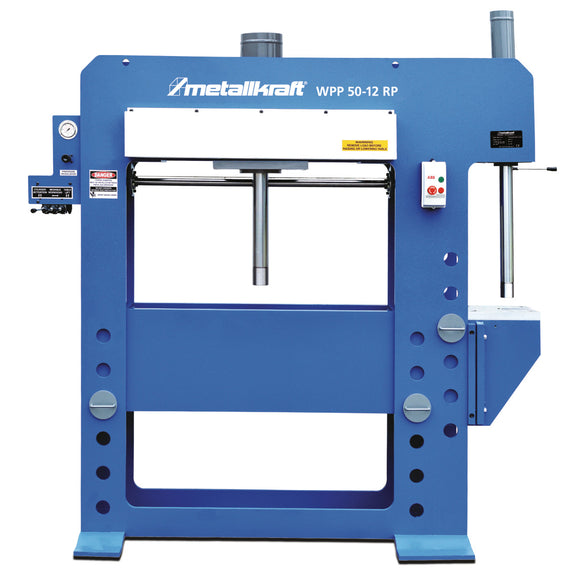

Fully hydraulic workshop press WPP 50-12 RP

• Clear height max. 1015 mm
• Clear width 1218 mm
• Depth without foot 305 mm
• Diameter cylinder 178 mm
• Diameter cylinder Broach 102 mm
• Diameter cylinder housing Broach 114 mm
• Diameter piston rod 76.2 mm
• Diameter piston rod Broach 63.5 mm
• Frame depth 279 mm
• Frequency 50 Hz
• Height 2157 mm
• Hole spacing for table height adjustment 152 mm
• Hole spacing for table height adjustment Broach 152 mm
• Length 2081 mm
• Length of piston nose 50.9 mm
• Length of piston nose Broach 31,75 mm
• Lowering speed 6.5 mm/s
• Lowering speed Broach 10 mm/s
• Motor power 3.7 kW
• Motor speed 1450 min-1
• Net weight 1409 kg
• Oil capacity (empty cylinder) 38 l
• Piston stroke 406 mm
• Piston stroke Broach 508 mm
• Press speed 6.5 mm/s
• Press speed Broach 10 mm/s
• Pressure force 50 t
• Pressure force Broach 12 t
• Return speed 8.0 mm/s
• Return speed Broach 32.8 mm/s
• Supply voltage 400 V
• Width 812 mm
• Width/depth of machine feet 812 mm
• Work table length 1218 mm
• Work table length Broach 273 mm
• Work table width 273 mm
• Work table width Broach 330 mm
