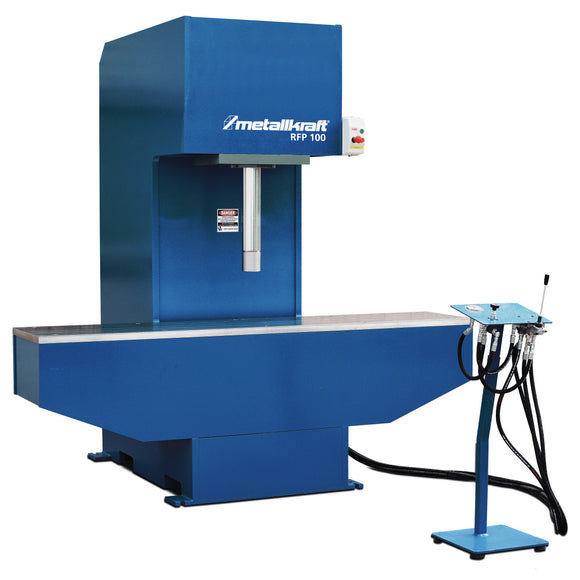

Straightening Press RFP 100

• Clear height max. 686 mm
• Depth without foot 1473 mm
• Diameter piston rod 101.6 mm
• Frequency 50 Hz
• Height 2438 mm
• Length 2438 mm
• Length of piston nose 63.5 mm
• Lowering speed 6.7 mm/s
• Motor power 7,5 kW
• Motor speed 1465 min¯¹
• Net weight 3750 kg
• Oil capacity (empty cylinder) 149 l
• Piston stroke 406 mm
• Press speed 6.7 mm/s
• Pressure force 100 t
• Reach 305 mm
• Return speed 8.3 mm/s
• Supply voltage 400 V
• Width 1473 mm
• Work table length 2438 mm
• Work table width 508 mm

• RFP
• Hydraulic oil HLP 46 Precis 20L (18 kg bucket) AGIP
