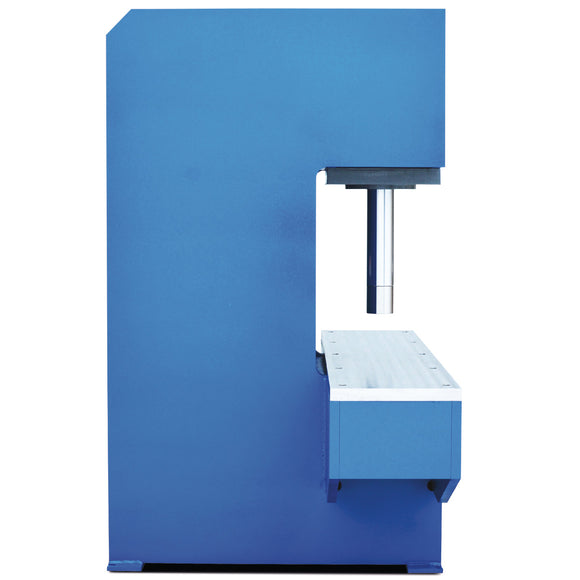

Straightening Press RFP 200

• Clear height max. 610 mm
• Depth without foot 1473 mm
• Diameter cylinder 305 mm
• Diameter piston head 305 mm
• Diameter piston rod 127 mm
• Frame depth 813 mm
• Frequency 50 Hz
• Height 2458 mm
• Length 2438 mm
• Length of piston nose 76.2 mm
• Lowering speed 8.5 mm/s
• Motor power 7,5 kW
• Motor speed 1465 min¯¹
• Net weight 5818 kg
• Oil capacity (empty cylinder) 149 l
• Piston stroke 508 mm
• Piston travel 508 mm
• Press speed 2 mm/s
• Pressure force 200 t
• Reach 305 mm
• Return speed 10.3 mm/s
• Supply voltage 400 V
• Width 1473 mm
• Width/depth of machine feet 1473 mm
• Work table length 2438 mm
• Work table width 508 mm
