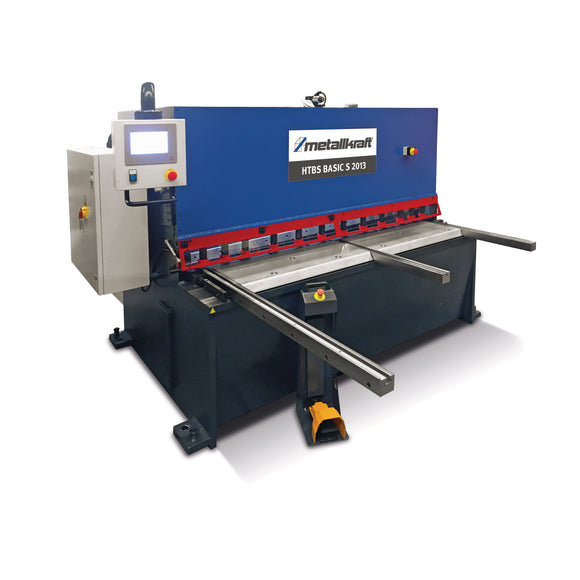

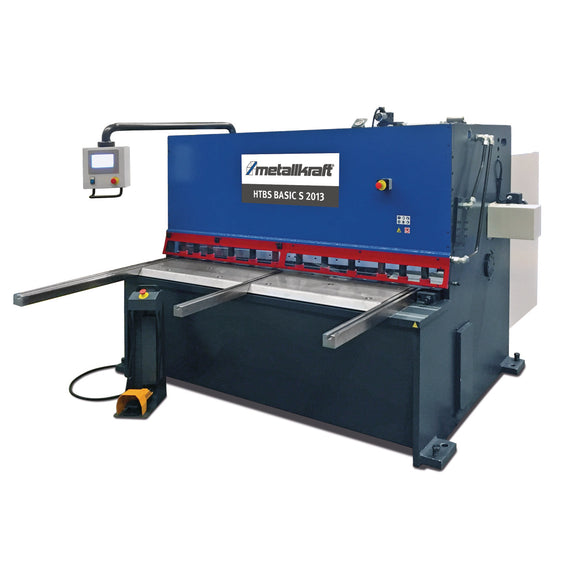

Hydraulic swing cut sheet metal shears HTBS BASIC S 2013

• Cutting angle 1.8 "
• Cutting kerf adjustment max. 1.3 mm
• Cutting kerf adjustment min. 0.08 mm
• Cutting performance (400 N/mm²) 13 mm
• Cutting performance (700 N/mm²) 8 mm
• Frequency 50 Hz
• Height 2215 mm
• Length 3150 mm
• Max. strokes for full cutting length 12 /min
• Motor output rear stop 0.37 kW
• Motor power 30 kW
• Net weight 10000 kg
• Oil tank capacity 400 l
• Rear stop range 1000 mm
• Rear stop speed 120 mm/s
• Sheet support arms 2 St
• Side stop length 1500 mm
• Supply voltage 400 V
• Table depth 600 mm
• Table height 900 mm
• Table length 2440 mm
• Width 3280 mm
• Working width 2060 mm
