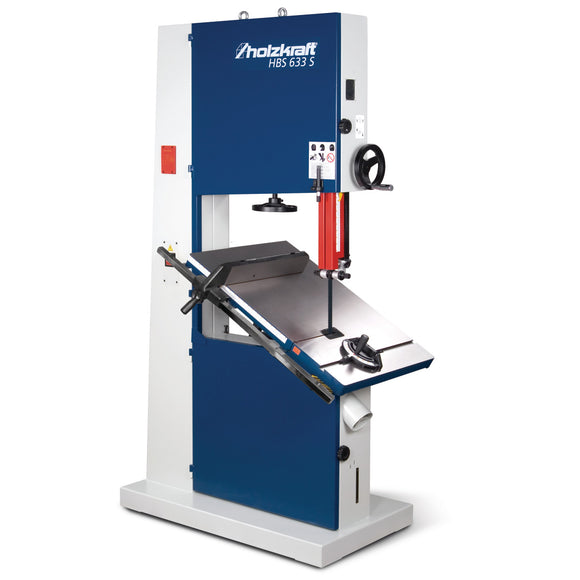

Woodbandsaw HBS 633 S (IE3)

€6.382,47 EUR (€5.189,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 5150063 Barcode: 4036351338604

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out

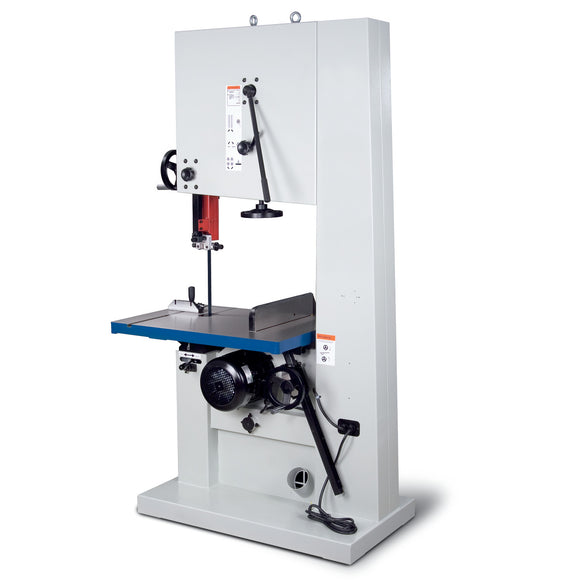

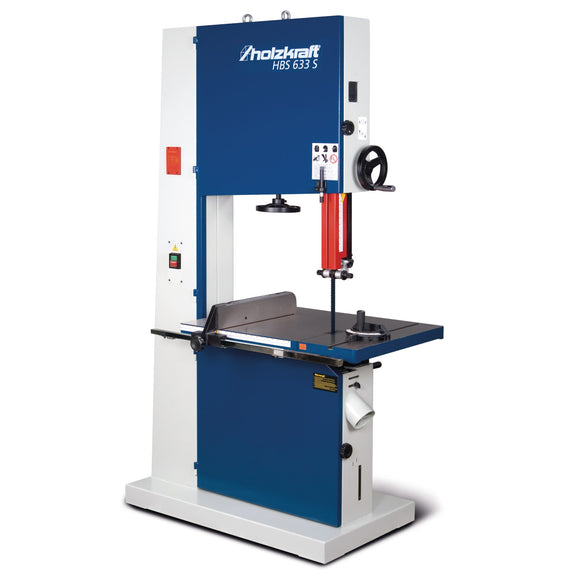

Woodbandsaw HBS 633 S (IE3).
  • Heavy professional design with high dead weight for maximum smoothness Especially quiet and precise running thanks to torsion-free machine housing
  • Large dimensioned cast iron saw table, one piece, swiveling from 0 ° to + 45 ° with ground and polished surface

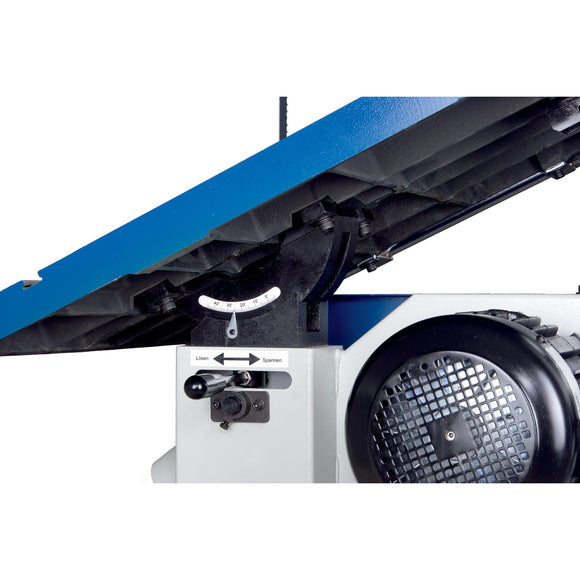

  • Patented table tilt device with handwheel and rack

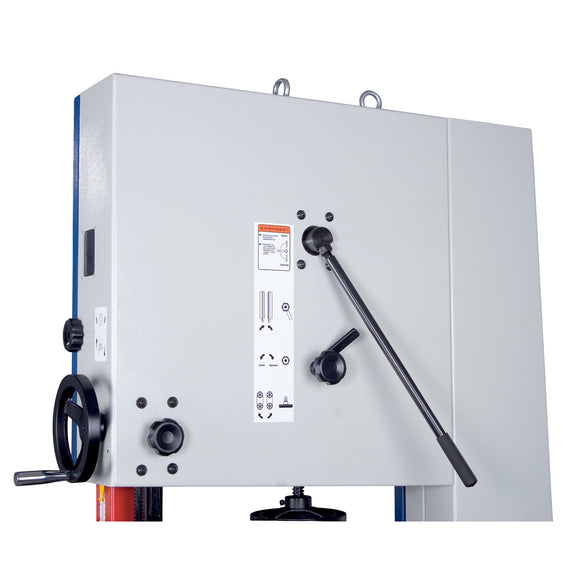

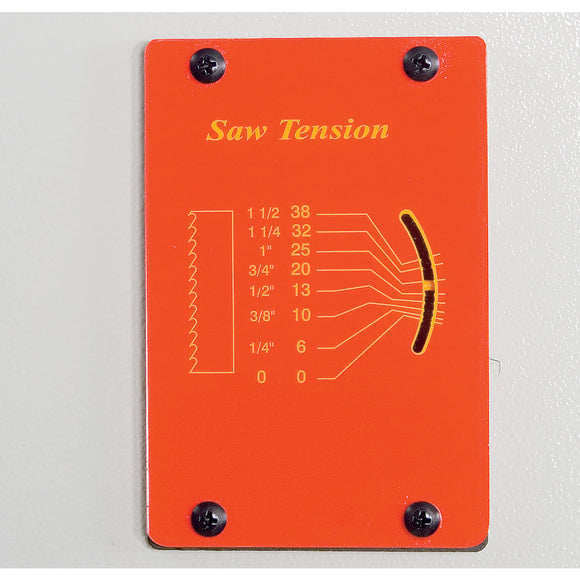

  • Sägebandschnellspannung

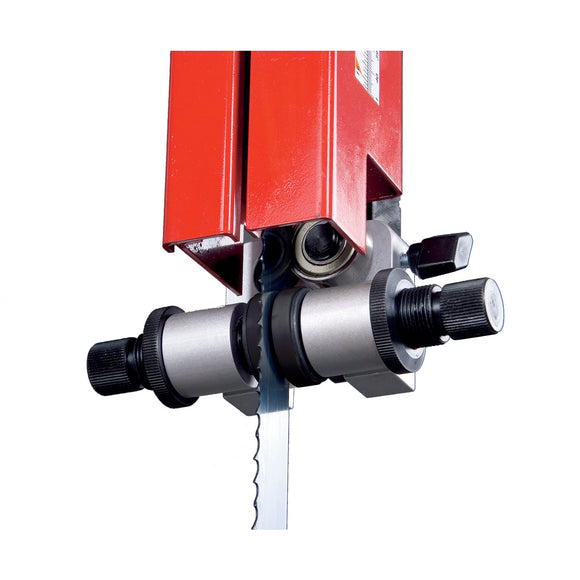

  • Precision Sägebandrollenführung

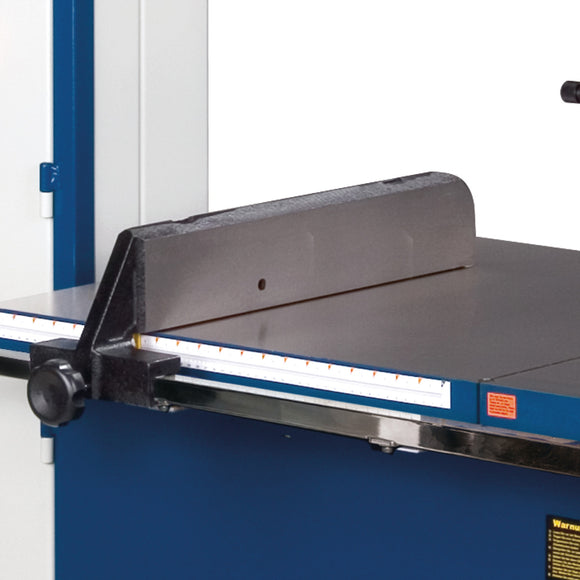

  • Large font rip fence

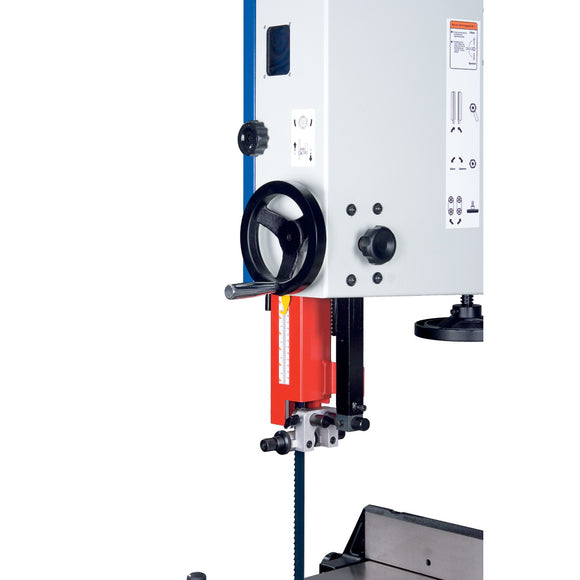

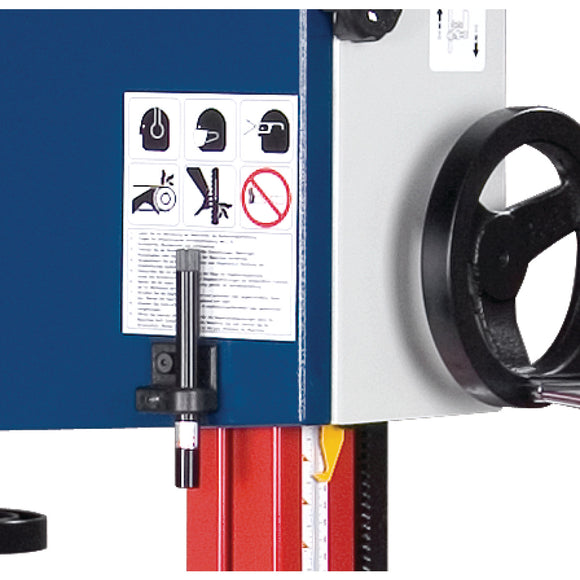

  • Fast and precise cutting height adjustment via handwheel and rack with millimeter scale
  • Safety switch for automatic shutdown when opening the door
  • Large font rip fence

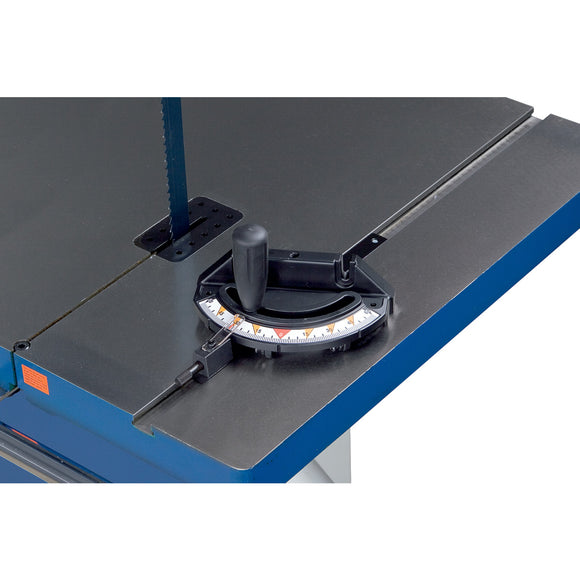

  • Standard with angle stop

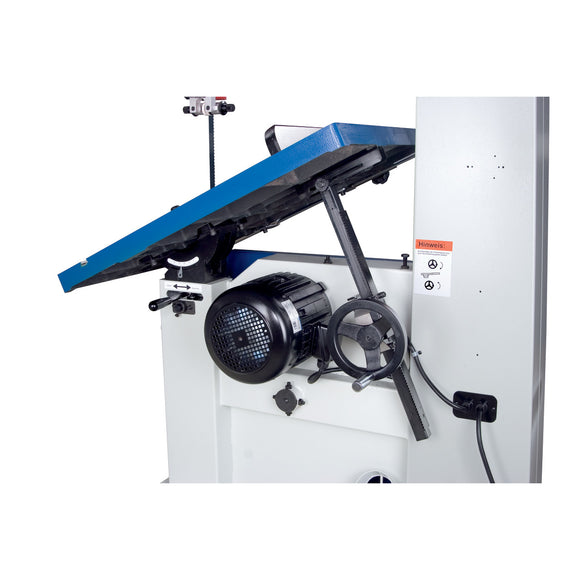

  • Table tilt via rack and handwheel


.
  • Delivery power 4.1 kW
  • Extraction port diameter 2 x 120 mm

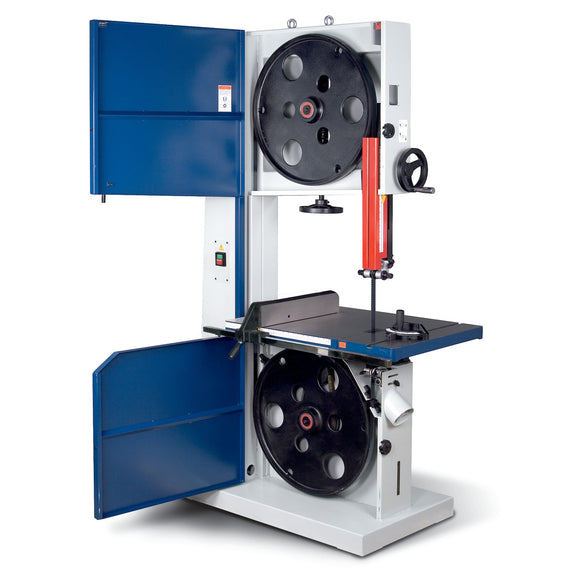

  • Flywheel diameter 630 mm
  • Frequency 50 Hz
  • Height 2063 mm
  • Length 1190 mm
  • Max. cutting height 90° 400 mm
  • Max. cutting width with stop 570 mm
  • Max. cutting width without stop 610 mm
  • Net weight 377.7 kg

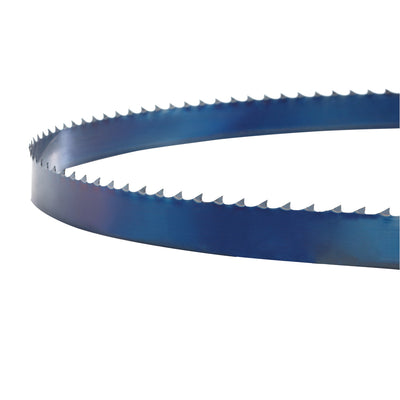

  • Saw band length 4600 mm
  • Saw band speed(s) 1615 m/min
  • Supply voltage 400 V
  • Width 820 mm
  • Work table height 830 mm
  • Work table length 830 mm
  • Work table pivot 0 – 45 °
  • Work table pivot explanation For safety reasons, a holding device / stop must be fitted from 20° to prevent the wood from slipping!
  • Work table width 600 mm
