Surface planer CASADEI PF 41

€11.303,70 EUR (€9.190,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 5220041 Barcode: 4036351176695

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

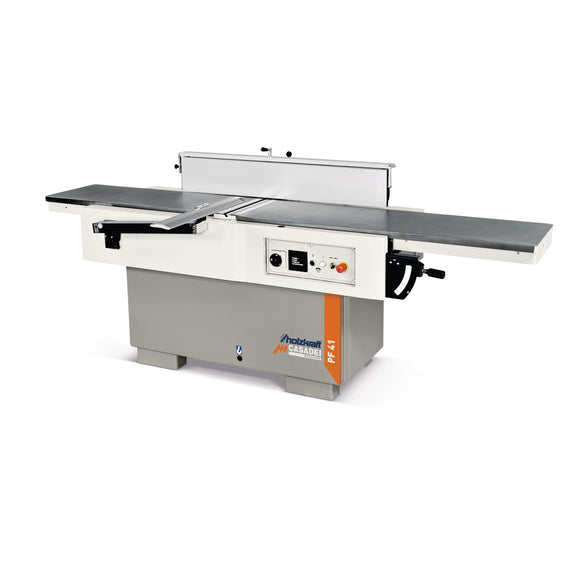

Surface planer CASADEI PF 41.
  • Large dressing tables made of gray cast iron
  • The dressing table adjustment takes place via a precise parallelogram system, so that the distance between the table tips and the knife shaft remains the same in every adjustment position

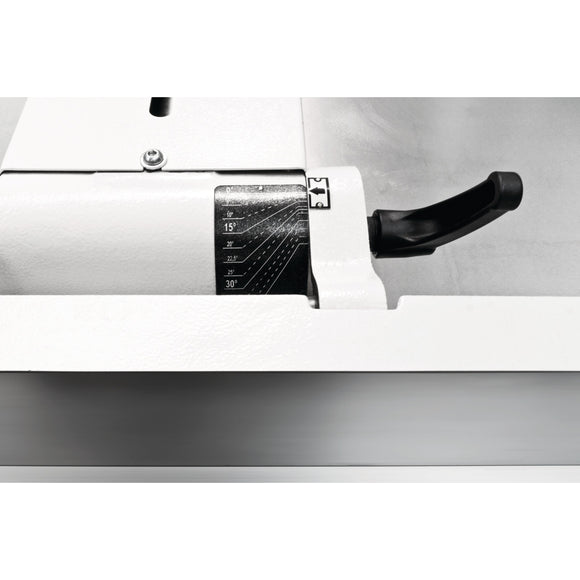

  • The large, stable dressing fence made of anodized aluminum is easily movable and can be tilted from 0 ° - 45 °
  • .
  • Extraction port diameter thickness 120 mm
  • Frequency 50 Hz
  • Length 2615 mm
  • Machine body length 1200 mm
  • Machine body width/length 558 mm
  • Max. cutting depth of joints 8 mm
  • Max. planing width 410 mm
  • Motor power 5 kW
  • Net weight 560 kg
  • Number of planing blades 4 St
  • Planing shaft diameter 120 mm
  • Planing shaft speed 5000 min¯¹
  • Planing stop height 190 mm
  • Planing stop length 1200 mm
  • Planing stop pivoting range 90 – 45 °
  • Space requirement length 2615 mm
  • Space requirement width/depth 1495 mm
  • Supply voltage 400 V
  • Task table length 1438 mm
  • Total length of table 2615 mm
  • Width 1280 mm
  • Work area length 1000 mm
  • Work area width/depth 3500 mm
  • Working height 845 mm
