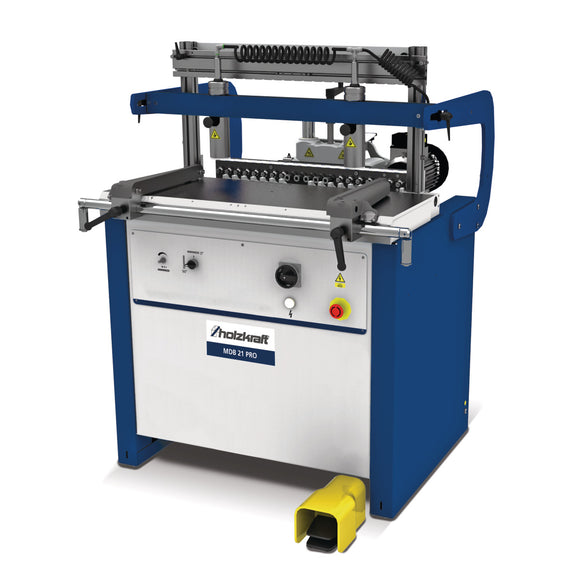

Semi automatic multi spindle drilling machine MDB 21 PRO.
  • Drilling spindles with quick-release system and five quick-.
  • Distance between spindles 32 mm
  • Drilling depth max. at 90° 65 mm
  • Drive motor input 1,5 kW
  • Extraction port diameter 80 mm
  • Frequency 50 Hz
  • Height 1270 mm
  • Length 1015 mm
  • Max. drilling width 640 mm
  • Max. height of workpiece 130 mm
  • Motor power 1,1 kW
  • Net weight 260 kg
  • Nominal operating mode drive motor S3
  • Number of spindles 21
  • Sound pressure level 78.3 dB(A)
  • Spindle distance first to last 640 mm
  • Spindle distance sufficient for Two workpieces, each 316 mm in width
  • Spindle speed(s) 2800 min¯¹
  • Supply voltage 400 V
  • Swivel of drill unit 0 – 90 °
  • Width 990 mm
  • Work table length 885 mm
  • Work table width 332 mm
  • Working pressure 6 – 8 bar
  • Two pneumatic pressure cylinders
  • Two fence jaws, each 1.5 m long
  • Four folding stops for the fence jaws
  • One setting gauge for fine adjusting the folding stops on the fence jaws
