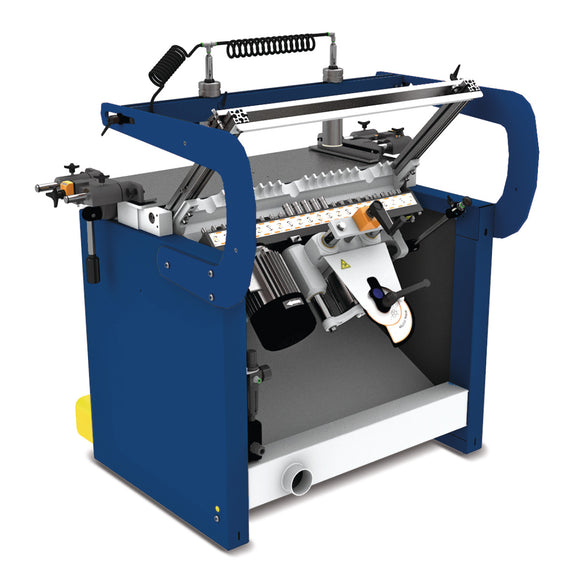

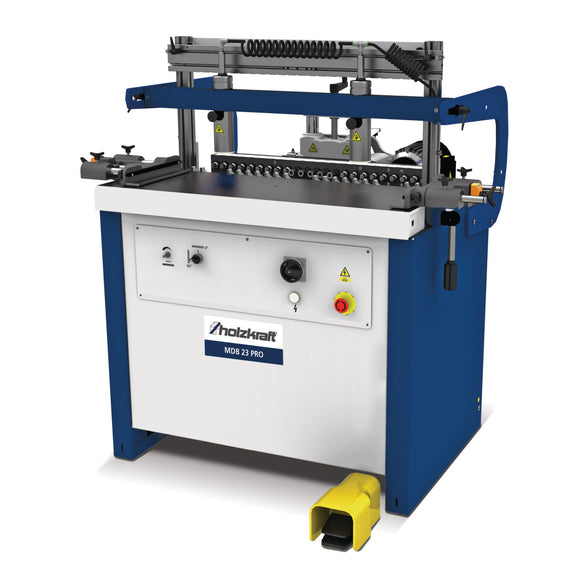

Semi automatic multi spindle drilling machine MDB 23 PRO

• Distance between spindles 32 mm
• Drilling depth max. at 90° 65 mm
• Drive motor input 1,5 kW
• Extraction port diameter 80 mm
• Frequency 50 Hz
• Height 1300 mm
• Length 1285 mm
• Max. drilling width 704 mm
• Max. height of workpiece 130 mm
• Motor power 1,1 kW
• Net weight 265 kg
• Nominal operating mode drive motor S3
• Number of spindles 23
• Sound pressure level 78.3 dB(A)
• Spindle distance first to last 896 mm
• Spindle distance sufficient for Two workpieces, each 348 mm in width
• Spindle speed(s) 2800 min¯¹
• Supply voltage 400 V

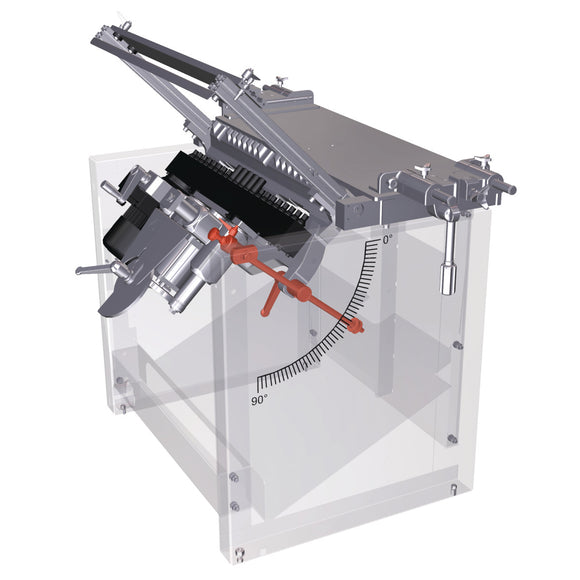

• Swivel of drill unit 0 – 90 °
• Width 872 mm
• Work table length 949 mm
• Work table width 338 mm
• Working pressure 6 – 8 bar

• Two pneumatic pressure cylinders
• Two fence jaws, each 1.5 m long
• Four folding stops for the fence jaws
• One setting gauge for fine adjusting the folding stops on the fence jaws
