Edge sanding machine KSO 150 F BASIC media thumbnails
Edge sanding machine KSO 150 F BASIC-1
Edge sanding machine KSO 150 F BASIC-2
Edge sanding machine KSO 150 F BASIC-3

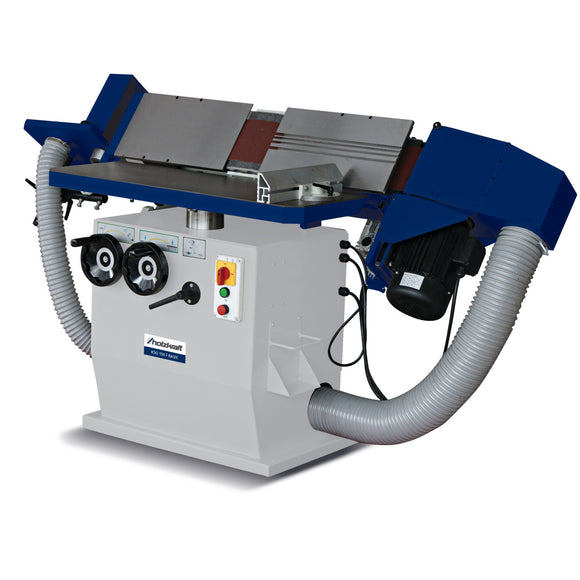

Edge sanding machine KSO 150 F BASIC

€3.811,77 EUR (€3.099,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 5363150 Barcode: 4036351279433

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out

Edge sanding machine KSO.
  • Heavy machine stand guarantees high torsional rigidity and vibration-free working
  • Better sanding results due to belt oscillation via separate geared motor
  • Optionally selectable oscillation
  • Fine edge veneer edge sanding device standard
  • Grooved ramp for veneer overhang
  • Quick conversion from veneer to solid wood sanding
  • Height adjustable sanding table to utilize the entire sanding belt width
  • Height adjustment of the sanding table and sanding unit swiveling via handwheels
  • Height-adjustable additional table with suction for sanding of radii
  • Optimal chip removal by suction at the aggregate and at the cross table
  • Automatic compensation of belt length differences by spring-loaded belt tension


.
  • Circumferential belt speed(s) 20 m/s
  • Extraction port diameter 120 mm
  • Frequency 50 Hz
  • Height 1230 mm
  • Input power 2.8 kW
  • Length 1900 mm
  • Min. cross table height 730 mm
  • Net weight 290 kg
  • Oscillation motor power 0.25 kW
  • Oscillation stroke 20 mm
  • Output power (motor power) 2.2 kW
  • Sanding belt length 3000 mm
  • Sanding belt width 150 mm
  • Sanding machine pivoting 0 – 45 °
  • Sanding surface length 1050 mm
  • Sanding surface width 220 mm
  • Supply voltage 400 V
  • Width 810 mm
  • Work table height adjustment 210 mm
  • Work table length 960 mm
  • Work table width 352 mm

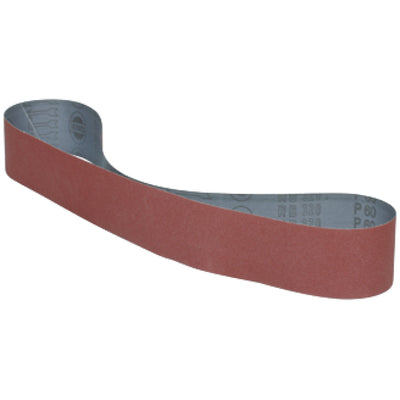

  • Sanding belt 3000 x 150 K100
  • Graphite flooring
  • Miter fence
