Portable CNC milling robot Maker

€4.549,77 EUR (€3.699,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 5509050 Barcode: 4036351347415

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

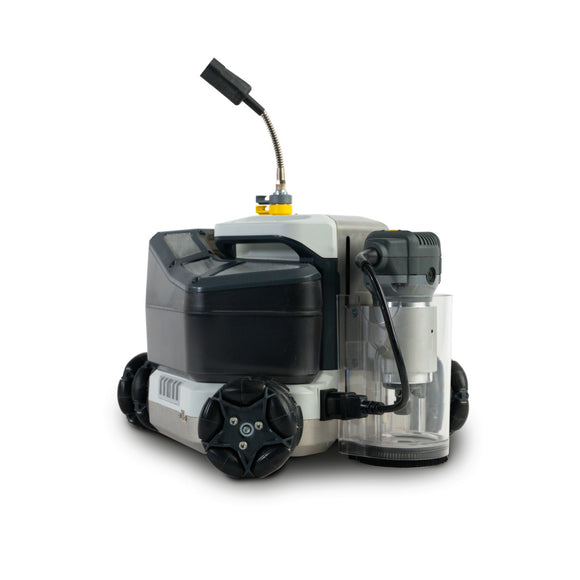

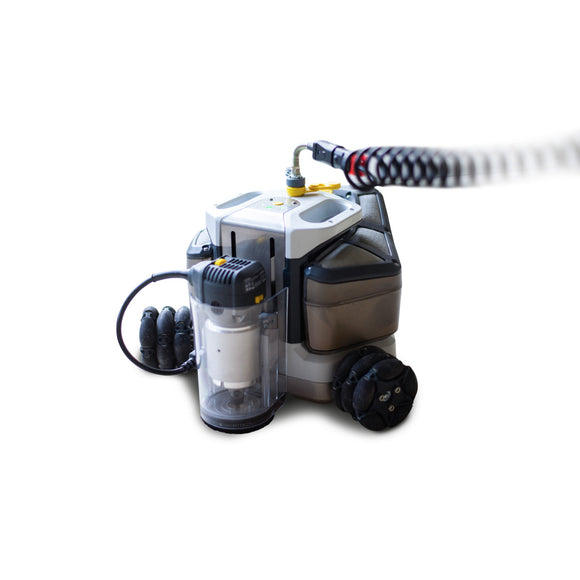

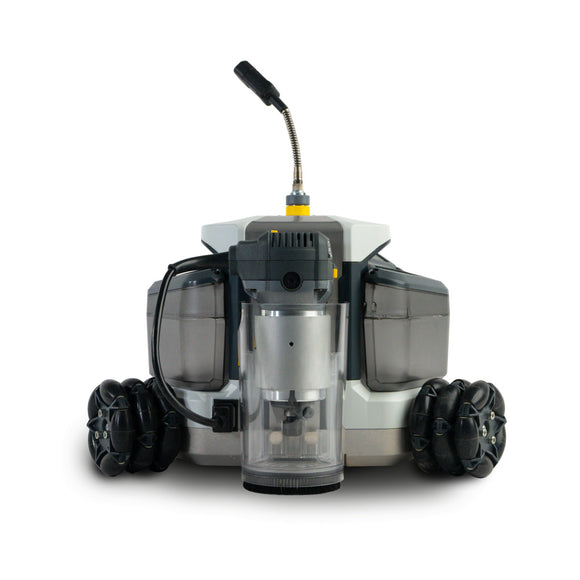

Portable CNC milling robot Maker.
  • For flexible, fully automatic processing of workpieces with a diagonal of up to 3. 5 m
  • Its revolutionary drive and sensor system overcomes the design limitations of stationary CNC milling machines

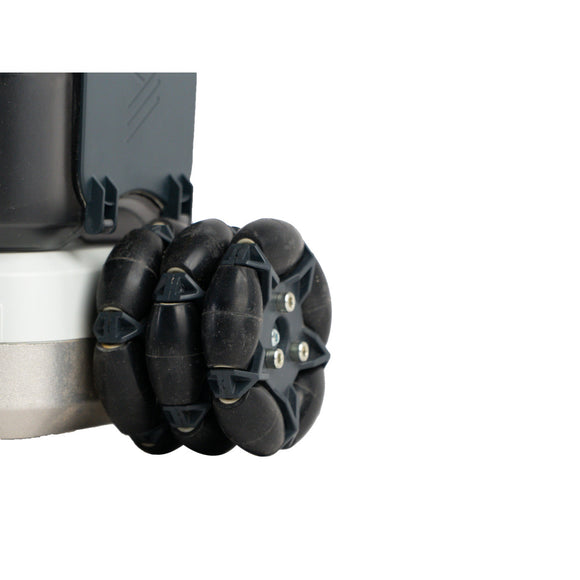

  • Specially designed omnidirectional wheels enable free movement on flat work surfaces without interference from already milled grooves or profiles
  • Chips and dust particles are picked up directly by the integrated extraction system and collected in a container

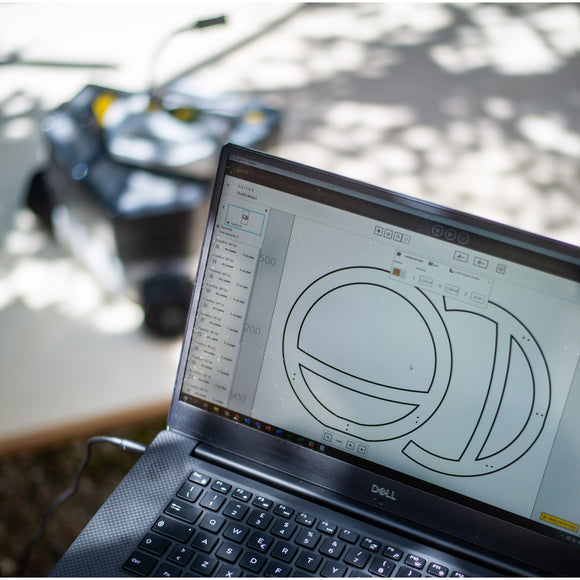

  • Precise production of any shape using user-friendly software
  • Infinitely adjustable speed
  • Can be used anywhere thanks to its low weight


SCM Group S. MINIMAX
Via Casale 450, Villa Verucchio (RN), Italy


.
  • Chip container volume 5 l
  • Clamping diameter max. 8 mm
  • Current strength 5.2 A
  • Drive motor power 1200 W
  • Frequency 50/60 Hz

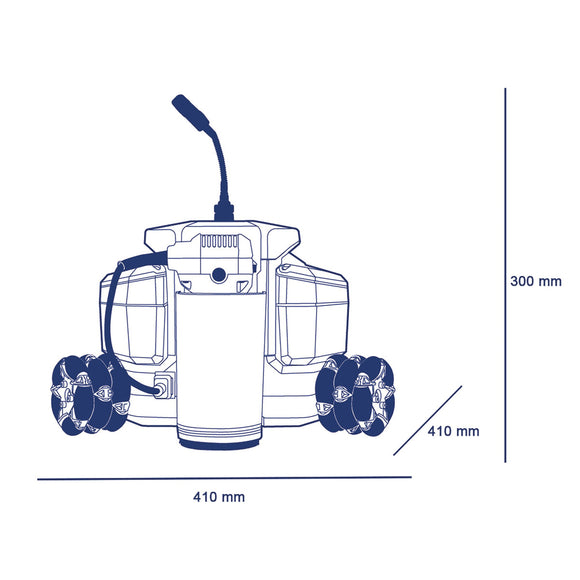

  • Height 300 mm
  • Length 410 mm
  • Max. Travel speed 3 m/min
  • Maximum raw part length 2500 mm
  • Maximum raw part thickness 25 mm
  • Maximum raw part width 1300 mm
  • Net weight 15 kg
  • Outside collet lenght max. 58 mm
  • Outside collet lenght min. 10 mm
  • Sound power level 95 dB(A)
  • Sound pressure level 85 dB(A)
  • Spindle power 710 W
  • Spindle speed from to 13000 - 33000 min-¹
  • Supply voltage 230 V
  • Tool diameter max. 8 mm
  • Tool diameter min. 3 mm
  • Width 410 mm

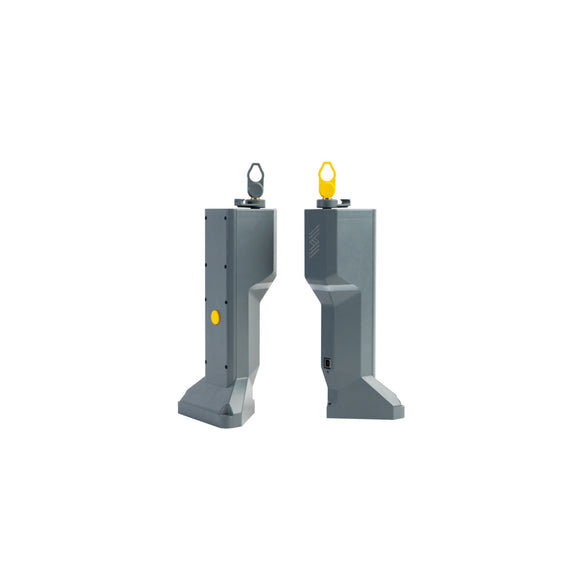

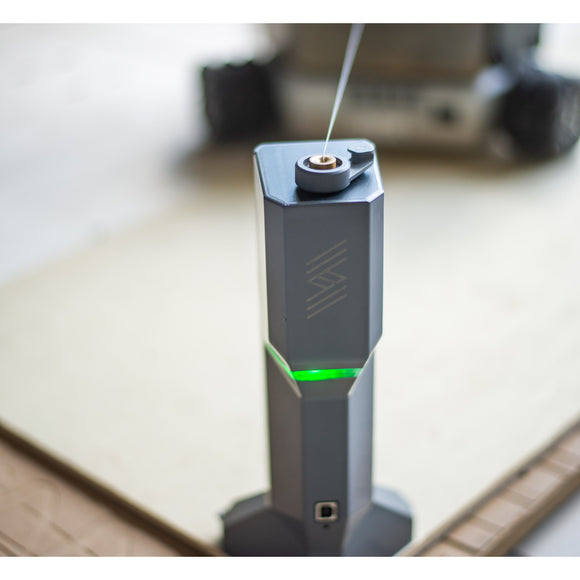

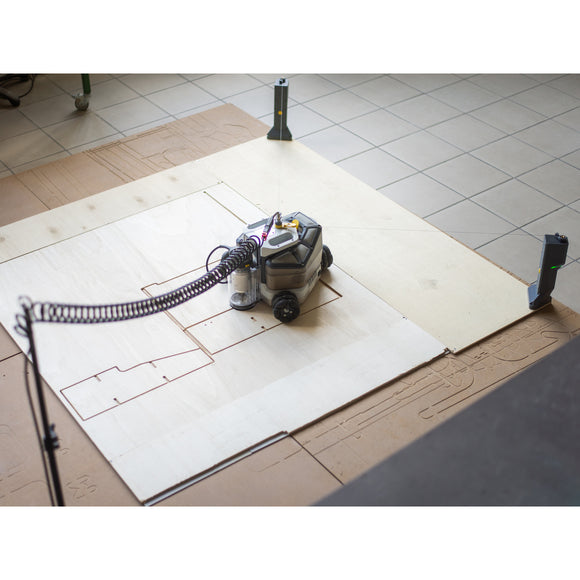

  • Two tower sensors (length 150 mm, width 150 mm, height 350 mm, weight 0.65 kg each)
  • Two USB cables

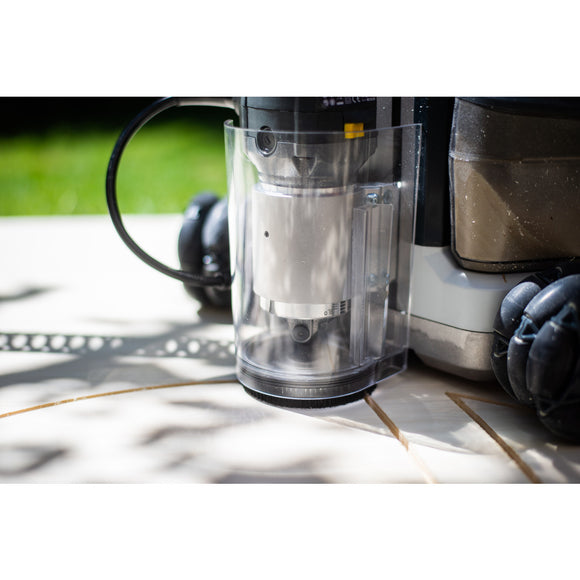

  • Transparent spindle guard
  • Mains cable including mains cable stand
    ER11 collet chuck
  • CNC milling cutter 6 mm
  • Open-end wrench 17 mm
  • Spare carbon brushes for the milling motor
  • Control software via download link
