Sliding table saw FKS 315-2000 E media thumbnails
Sliding table saw FKS 315-2000 E-1
Sliding table saw FKS 315-2000 E-2
Sliding table saw FKS 315-2000 E-3

Sliding table saw FKS 315-2000 E

€4.180,77 EUR (€3.399,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 5900317 Barcode: 4036351053736

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out

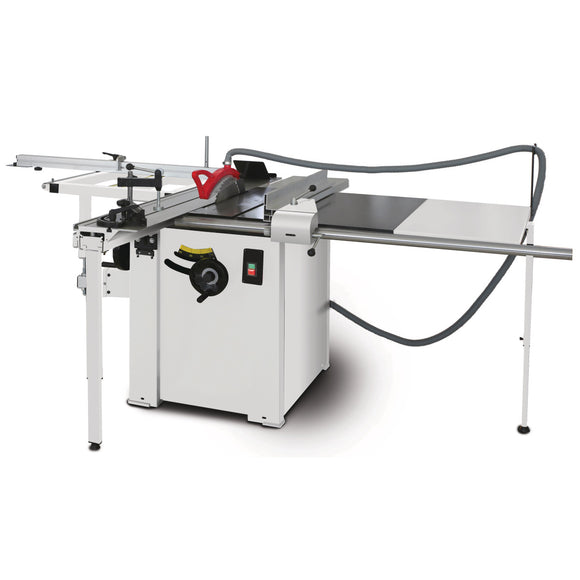

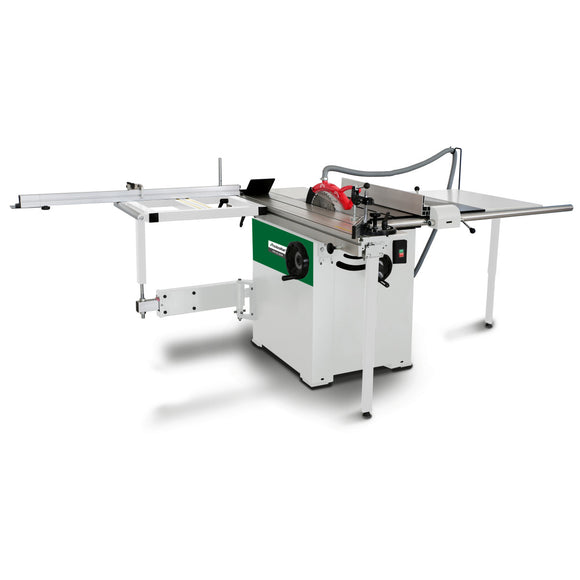

Sliding table saw FKS E.
  • Standard with Vorritzeinrichung
  • From -45 ° to + 45 ° swiveling, extendable telescopic stop with finely adjustable stop flap
  • Robust and precise design with sliding carriage
  • The gray cast iron work table enables low-vibration work
  • Saw blade height adjustment via a handwheel
  • Saw blade pivoting from 90 to 45 ° adjustable via handwheel with scale
  • Stable sawing unit guarantees vibration-free and precise work
  • Solid boom table with roller and telescopic arm for maximum stability
  • Miter fence and hold-down over the entire length of the carriage slidable
  • Large aluminum rip fence on round rod guide with fine adjustment
  • Strong drive motor for constant cutting speed, even at 100 mm cutting height
  • Large dimensioned worktable and standard table extension for cutting widths up to mm


.
  • (Main) saw blade diameter 315 mm
  • (Main) saw blade speed 4500 min¯¹
  • Absorbed motor power 3,7 kW
  • Clamp sleigh ✔
  • Diameter scoring saw blade 90 mm
  • Eccentric clamp ✔
  • Extraction port diameter bottom 98 mm
  • Frequency 50 Hz
  • Height 1150 mm
  • Length 4330 mm
  • Material roll on claming frame ✔
  • Max. cross cut width left from saw blade 2430 mm
  • Max. cutting height 45° 80 mm
  • Max. cutting height 90° 100 mm
  • Max. cutting width with rip fence 1220 mm
  • Motor speed 2800 min¯¹
  • Net weight 295 kg
  • Output power (motor power) 3,0 kW
  • Saw blade angle 90 - 45 °
  • Saw blade cover ✔
  • Saw blade protection extraction port diameter 40 mm
  • Scoring saw blade speed 8500 min¯¹
  • Sliding carriage length 2000 mm
  • Sliding carriage width 270 mm
  • Sound pressure level 85 dB(A)
  • Supply voltage 400 V
  • Table broadening ✔
  • Table length 1260 mm
  • Table lengthening ✔
  • Table width 800 mm
  • Trimming length 2000 mm
  • Width 4155 mm
  • Work height 870 mm
  • Saw blade 315 x 30 x 3 mm 24 teeth
  • Scoring saw blade 90 x 20 x 3 mm 12 teeth
