Table router TF 170 E (230 V)

€1.351,77 EUR (€1.099,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 5901917 Barcode: 4036351250753

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

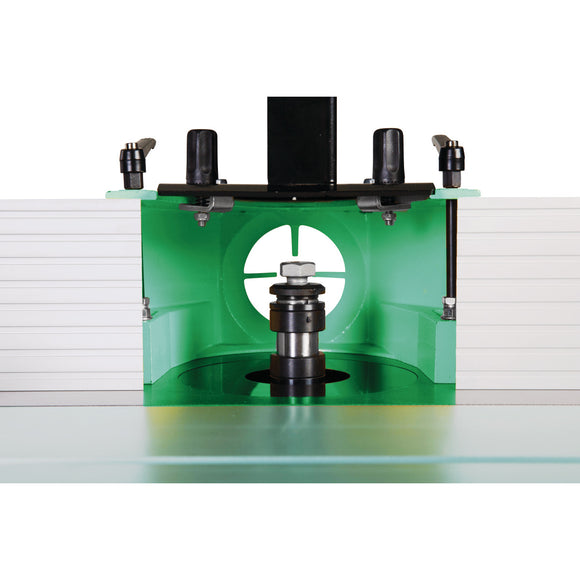

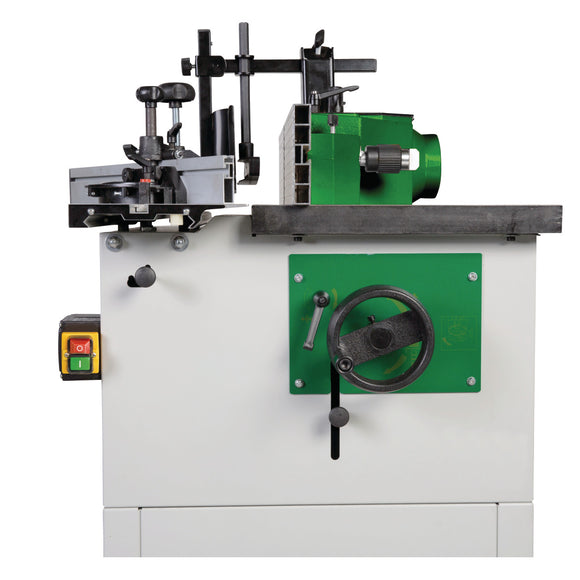

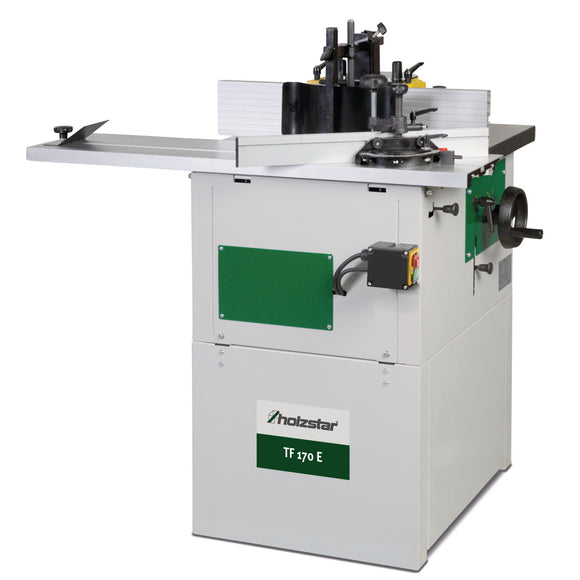

Table router TF 170 E (230 V).
  • Smooth-action sliding carriage for precise workpiece guidance

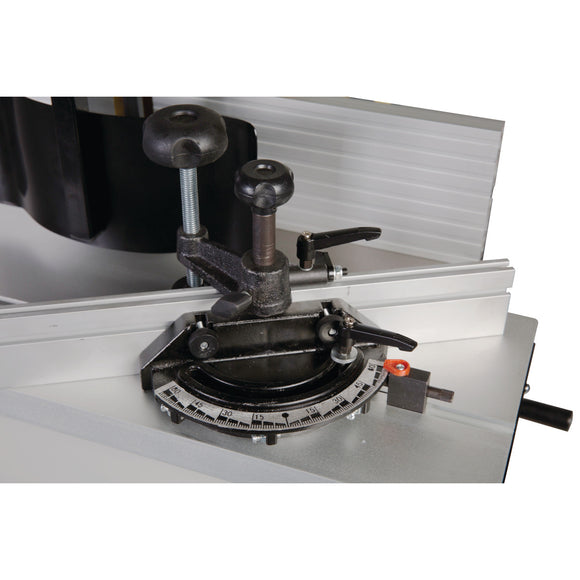

  • Milling stop with finely adjustable aluminium stops
  • Quick and easy change of the speed by means of splined belts
  • Large work surface with torsion-free cast-iron table
  • Milling unit made of grey cast iron
  • Downholder for precise workpiece guidance


.
  • Absorbed motor power 1,5 kW
  • Duty type drive motor S6
  • Frequency 50 Hz
  • Height 1140 mm
  • Length 1000 mm
  • Max. height ca. 1170 mm
  • Max. length ca. 1000 mm
  • Max. spindle protrusion over the table 105 mm
  • Max. tool diamter 160 mm
  • Max. width/depth ca. 950 mm
  • Milling spindle stroke 105 mm
  • Motor power 1,1 kW
  • Net weight 96 kg
  • Protection class drive motor IP54
  • Sliding carriage height 850 mm
  • Sliding carriage length 1000 mm
  • Sliding carriage width 218 mm
  • Spindle arbor diamter 30 mm
  • Spindle speed(s) 1400/4000/6000/9000 min¯¹
  • Supply voltage 230 V
  • Table height 850 mm
  • Total current draw 6.2 A
  • Total rated value 1,5 kVA
  • Width 900 mm
  • Work table length 600 mm
  • Work table width 400 mm
  • substructure
  • spindle protection
  • Spindle fence
  • Milling spindle with collet
