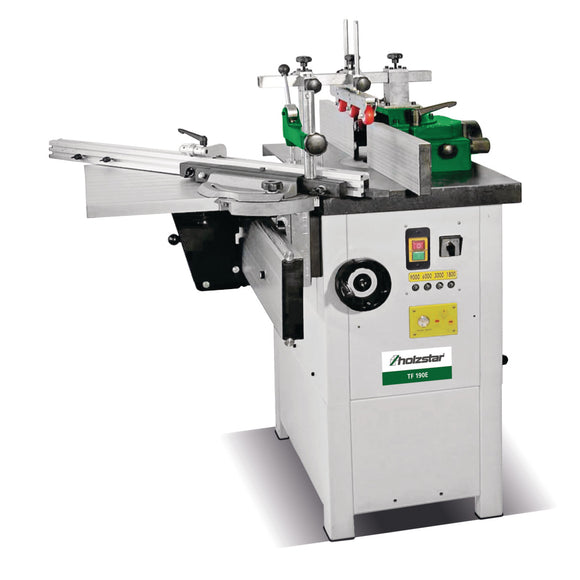

Table router TF 190 E (400 V)-1
Table router TF 190 E (400 V)-2
Table router TF 190 E (400 V)-3

Table router TF 190 E (400 V)

€2.335,77 EUR (€1.899,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 5901923 Barcode: 4036351318392

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping
Table router TF 190 E (400 V).
  • Milling stop with finely adjustable aluminum stops
  • Quick and easy changing of the speed using multiple V-belts
  • Speed setting displayed by LED lights
  • Large work surface thanks to the torsion-free grey cast iron table
  • Selector switch for clockwise/counterclockwise rotation of the milling spindle
  • Milling unit made of grey cast iron
  • Hold-down unit for precise workpiece guidance
  • Sliding table and chassis available as an accessory


.
  • Absorbed motor power 2,8 kW
  • Duty type drive motor S1
  • Extraction port diameter 100 mm
  • Frequency 50 Hz
  • Height 1200 mm
  • Length 730 mm
  • Max. spindle protrusion over the table 100 mm
  • Max. tool diamter lowerable 200 mm
  • Milling spindle stroke 100 mm
  • Motor power 2,2 kW
  • Net weight 140 kg
  • Protection class drive motor IP54
  • Spindle arbor diamter 30 mm
  • Spindle speed(s) 1800/3000/6000/9000 min¯¹
  • Supply voltage 400 V
  • Table height 900 mm
  • Usable spindle length 100 mm
  • Width 500 mm
  • Work table length 690 mm
  • Work table width 480 mm
