Table router TF 190 SE (400 V)

€2.655,57 EUR (€2.159,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 5901933 Barcode: 4036351318415

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

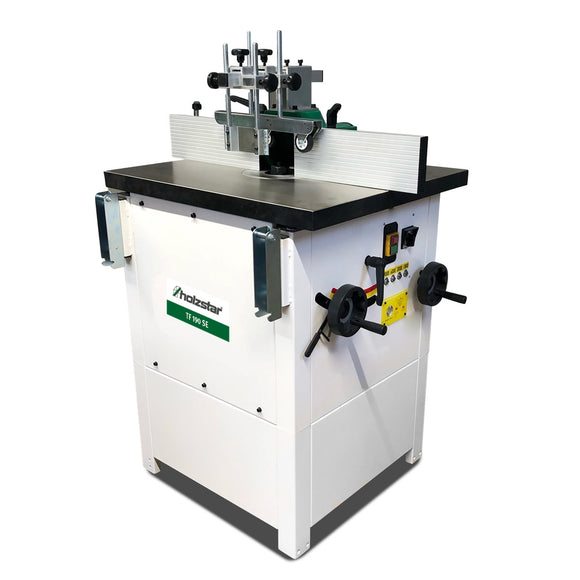

Table router TF 190 SE (400 V).
  • Milling stop with finely adjustable aluminum stops
  • Quick and easy changing of the speed using multi-V-belts
  • Display of the speed setting by LED lights
  • Large work surface due to the solid and torsion-free gray cast iron table
  • Large milling unit made of gray cast iron, swiveling from +5 to -30°
  • Selector switch for clockwise/counterclockwise rotation of the milling spindle

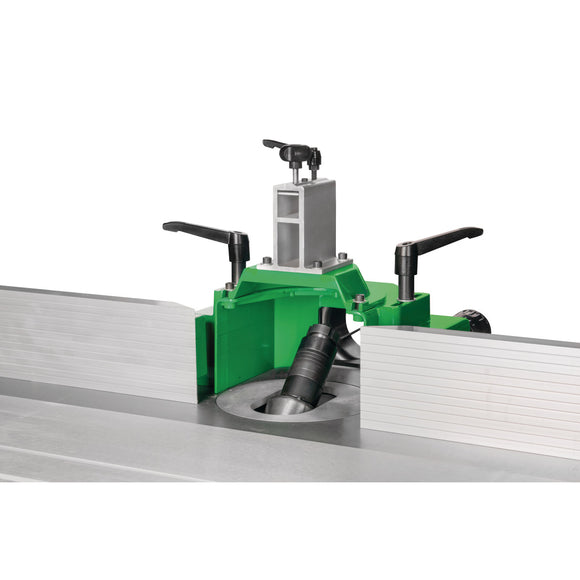

  • Hold-down device for precise workpiece guidance

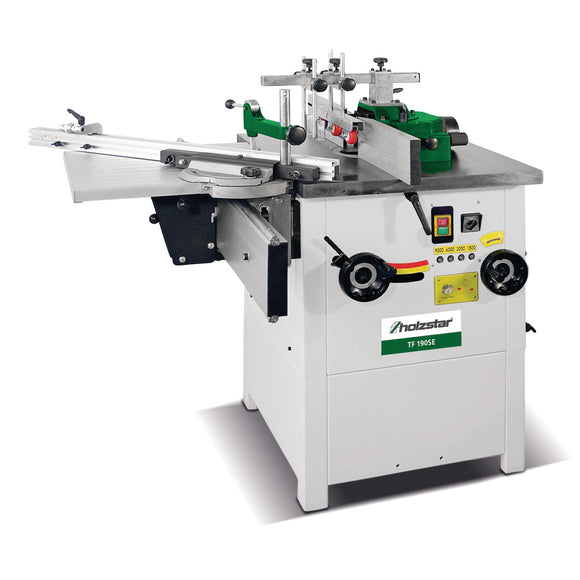

  • Sliding table and chassis device available as accessory


.
  • Absorbed motor power 2,8 kW
  • Duty type drive motor S1
  • Extraction port diameter 100 mm
  • Frequency 50 Hz
  • Height 1200 mm
  • Length 750 mm
  • Max. spindle protrusion over the table 100 mm
  • Max. tool diamter lowerable 200 mm
  • Milling spindle stroke 100 mm
  • Motor power 2,2 kW
  • Net weight 174 kg
  • Protection class drive motor IP54
  • Sliding carriage height 500 mm
  • Sliding carriage length 1200 mm
  • Sliding carriage width 700 mm
  • Spindle angle -5 – +30 °
  • Spindle arbor diamter 30 mm
  • Spindle speed(s) 1800/3000/6000/9000 min¯¹
  • Supply voltage 400 V
  • Table height 900 mm
  • Usable spindle length 100 mm
  • Width 660 mm
  • Work table length 710 mm
  • Work table width 640 mm

Add content using the options to the left

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.
