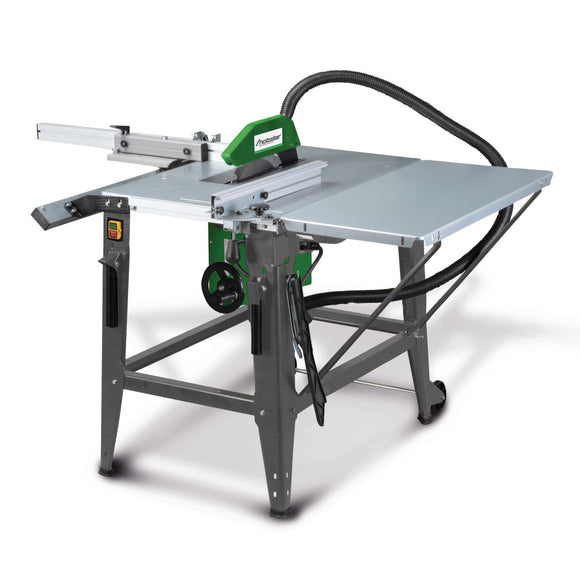

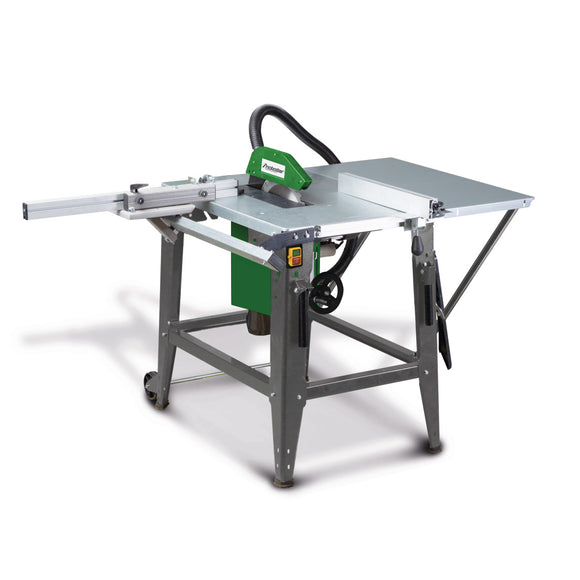

Table saw TKS 316 E (400 V)

• (Main) saw blade diameter 315 mm
• (Main) saw blade speed 2800 min¯¹
• Absorbed motor power 2,8 kW
• Duty type drive motor S6 40%
• Extraction port diameter bottom 100 mm
• Frequency 50 Hz
• Height 1050 mm
• Length 1600 mm
• Max. cutting height 45° 60 mm
• Max. cutting height 90° 83 mm
• Max. cutting width with rip fence 290 mm
• Motor speed 2800 min¯¹
• Net weight 55 kg
• Output power (motor power) 2,2 kW
• Protection class drive motor IP 54
• Saw blade angle 90 - 45 °
• Saw blade protection extraction port diameter 35 mm
• Supply voltage 400 V
• Table length 800 mm
• Table width 550 mm
• Total current draw 4,7 A
• Width 600 mm
• Work height 850 mm

• Chassis

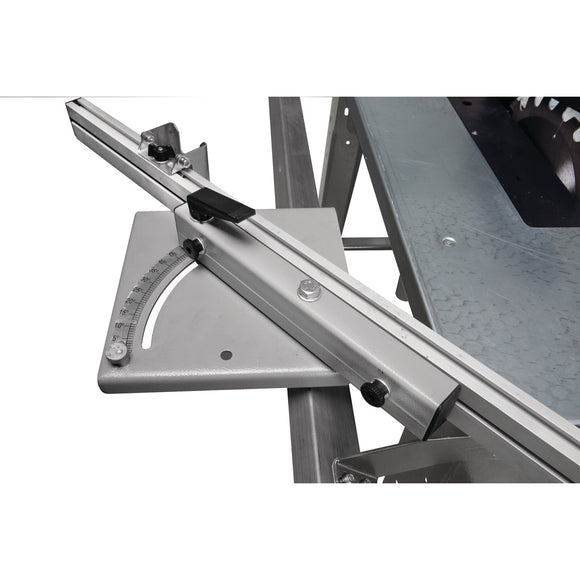

• Sliding table with miter gauge
• Table extension

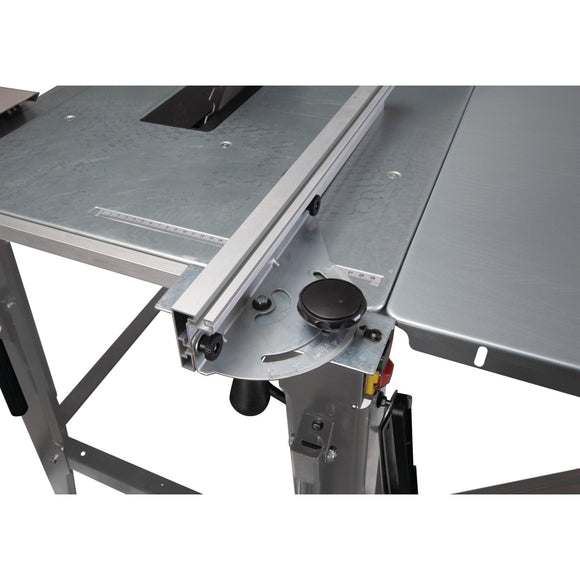

• Combined parallel and miter fence

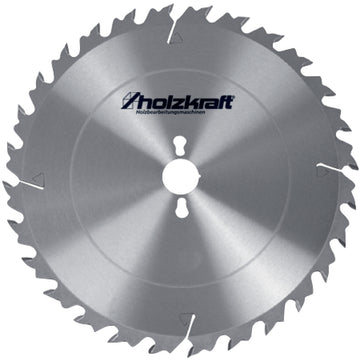

• Carbide Blade Ø 315 x 3,6 x Ø 30 mm Z24
• Saw blade guard with suction hose
• Push stick
