Surface and thickness planer ADH 3050 (230V)

• Absorbed motor power 1,8 kW
• Duty type drive motor S1
• Feed speed 8.5 m/min
• Frequency 50 Hz
• Height 1075 mm
• Infeed table length 525 mm
• Infeed table width 308 mm
• Length 1140 mm
• Machine body length 450 mm
• Machine body width/length 470 mm
• Max. cutting depth of joints 3 mm
• Max. cutting depth thickness 2 mm
• Max. planing width 305 mm
• Motor power 1.25 kW
• Net weight 93 kg
• Number of planing blades 2 St
• Planing shaft diameter 62 mm
• Planing shaft speed 6700 min¯¹
• Planing stop height 127 mm
• Planing stop length 635 mm
• Planing stop pivoting range 90 – 45 °
• Sound power level 97 dB(A)
• Sound pressure level 84 dB(A)
• Suction hood connection diameter 100 mm
• Suction unit connection diameter 75 mm
• Supply voltage 230 V
• Thicknessing table length 500 mm
• Thicknessing table width 305 mm
• Total length of table 1080 mm
• Width 800 mm
• Working height 920 mm
• Working height max. thickness 160 mm
• Working height min. thickness 6 mm
• Working length min. thickness 250 mm

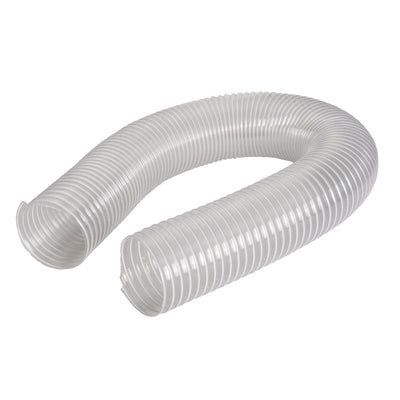

• Suction connection hose, Ø 76 mm, 920 mm
• Reduction 100/75 mm

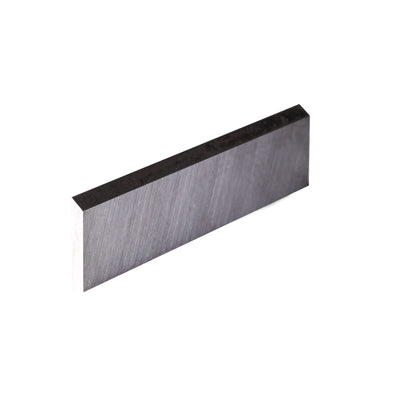

• Strip planer knife set
• Chip bag
