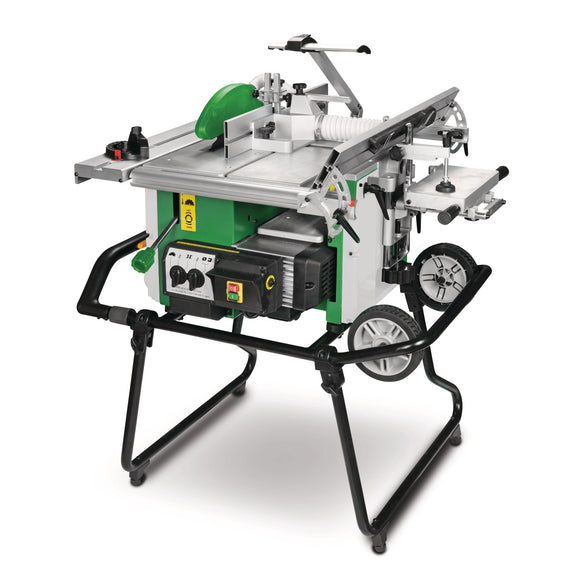

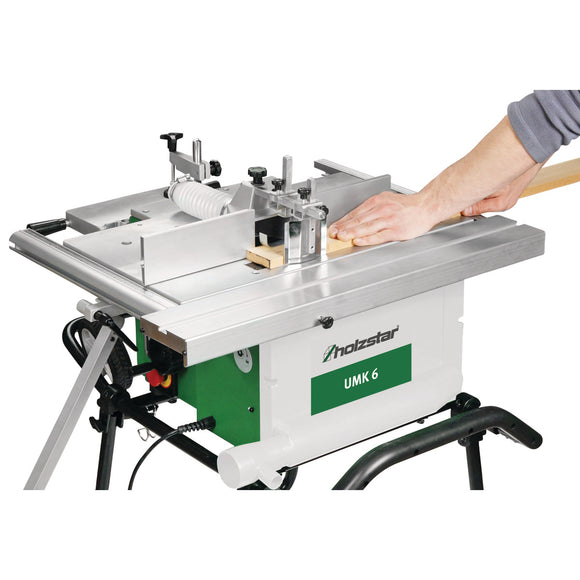

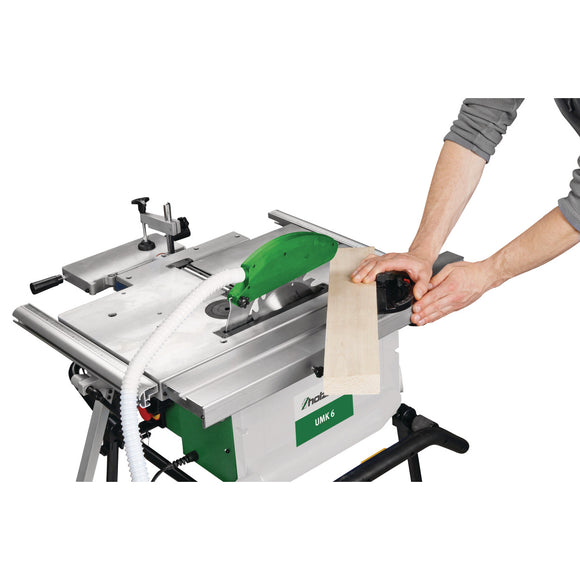

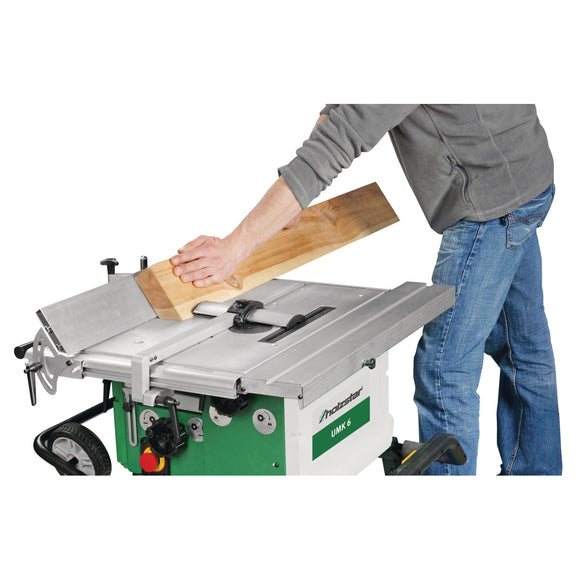

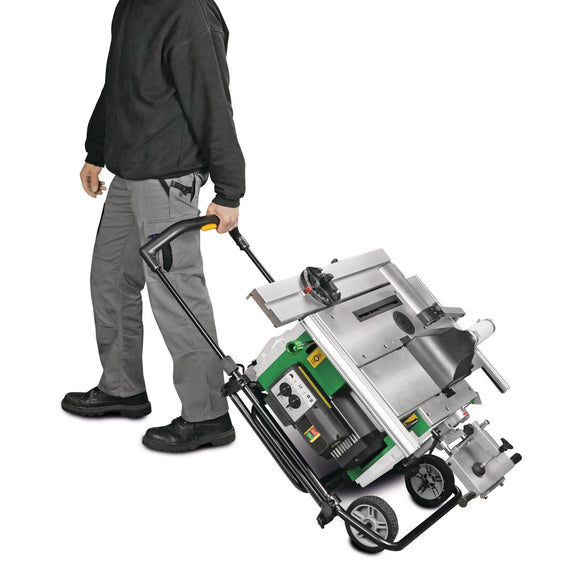

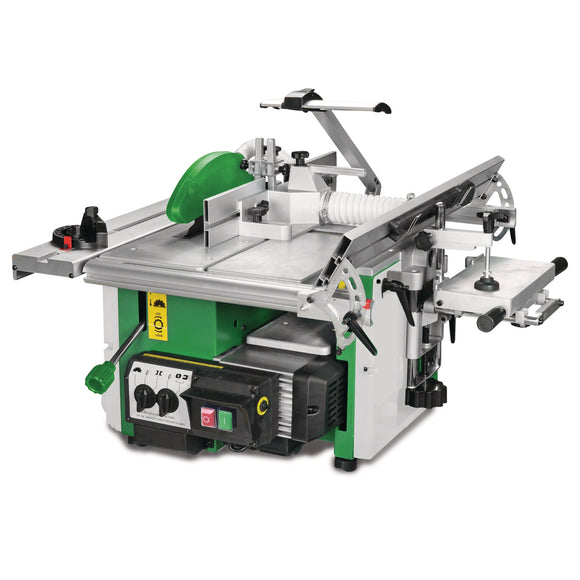

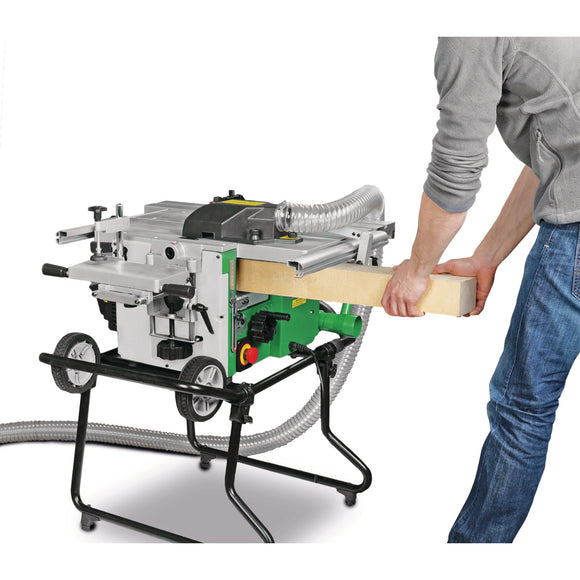

Universal multiple combination UMK 6

• (Main) saw blade speed 4200 min¯¹
• Diameter of (main) saw blade 200 mm
• Extraction port diameter 60 mm
• Extraction port diameter thickness 50 mm
• Feed shaft diameter 20 mm
• Feed speed 7 m/min
• Frequency 50 Hz
• Height 490 mm
• Infeed table length 620 mm
• Infeed table width 154 mm
• Length 880 mm
• Max. cutting depth of joints 1.5 mm
• Max. cutting depth thickness 1 mm
• Max. cutting height at 90° 65 mm
• Milling spindle holder for shaft diameter 6/8 mm
• Motor power 1,0 kW
• Net weight 49 kg
• Number of planing blades 2 St
• Planing shaft diameter 48 mm
• Planing shaft speed 6000 min¯¹
• Saw blade protection extraction port diameter 30 mm
• Sliding table length 740 mm
• Sliding table width 120 mm
• Slot mortising drill depth 60 mm
• Slot mortising unit holder for shaft diameter 6/8/10 mm
• Slot mortising unit longitudinal stroke 45 mm
• Slot mortising unit vertical stroke 95 mm
• Spindle speed(s) 9000 min¯¹
• Supply voltage 230 V
• Table length 620 mm
• Table slot mortising unit length 260 mm
• Table slot mortising unit width 125 mm
• Table width 300 mm
• Thicknessing table length 320 mm
• Thicknessing table width 154 mm
• Trimming length 500 mm
• Width 835 mm
• Working height max. thickness 92 mm
• Working height min. thickness 9 mm

• 2-blade planer shaft

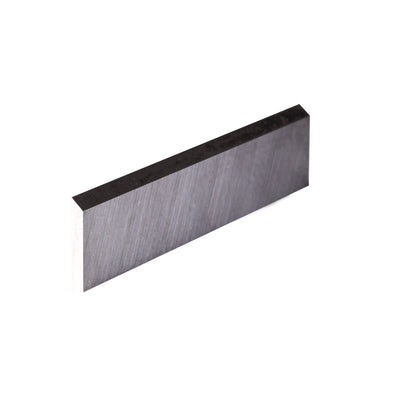

• Planer blade set (2 pieces)
• Saw blade, 200 x 30 x 2.6 mm, Z20
• Sliding carriage for saw and router
• Multifunction fence for parallel cutting and planing
• Mitre fence

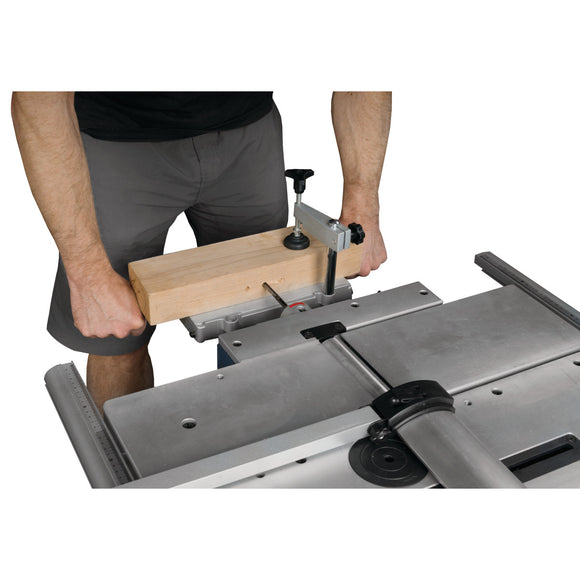

• Slot drilling device with clamping arm
• Workpiece pusher

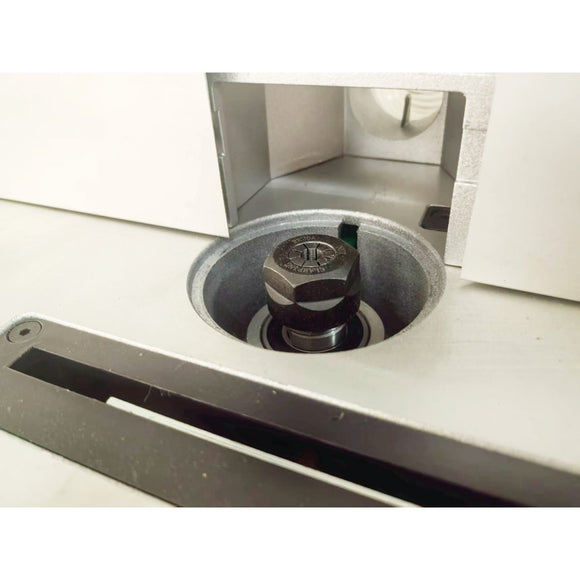

• ER 20 collets 6, 8 mm
• Clamping sleeves 6,8,10 mm
