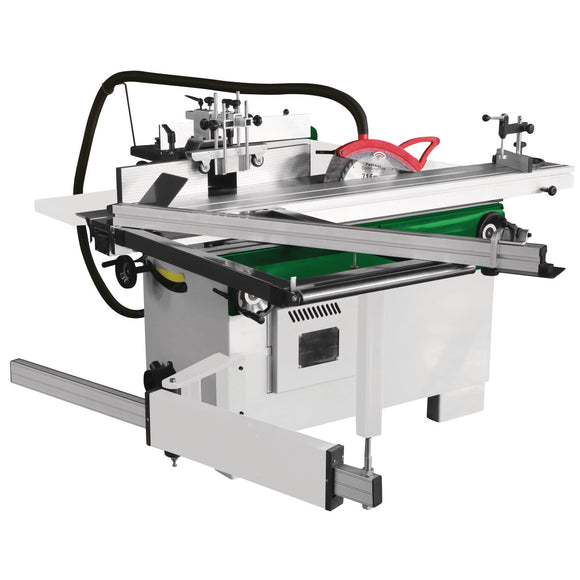

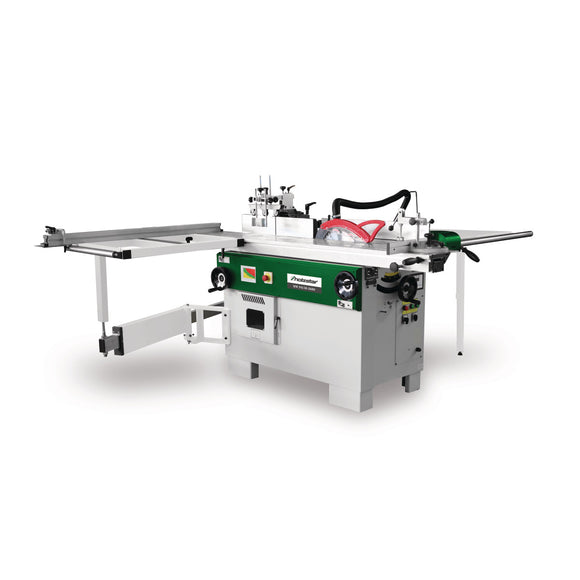

Saw-mill combination SFK 315/30-2600

• Anodised aluminium sliding sizing carriage ✔
• Cutting width with rip fence 1140 mm
• Diameter (main) saw blade 315 mm
• Diameter scoring saw blade 90 mm
• Eccentric clamp ✔
• Format slide length 2600 mm
• Format sliding carriage height 95 mm
• Frequency 50 Hz
• Handle for sliding carriage ✔
• Height 1120 mm
• Idle sound pressure level 90.2 dB(A)
• Input power milling 2.8 kW
• Input power saw 3 kW
• Length 1540 mm
• Material roll on the trimming frame ✔
• Max. Cutting width to the left of the saw blade 1170 mm
• Max. cutting height 45° 80 mm
• Max. cutting height 90° 100 mm
• Net weight 425 kg
• Saw blade tilt 45 – 90 °
• Saw output 2.4 kW
• Scoring device ✔
• Sliding table width 270 mm
• Speed (main) saw blade 4500 min¯¹
• Spindle inclination 0 – 45 °
• Spindle mandrel diameter 30 mm
• Spindle speeds 1800/3000/6000/9000 min⁻¹
• Suction nozzle diameter 100 mm
• Suction port diameter Saw blade guard 30 mm
• Supply voltage 400 V
• Table extension ✔
• Table length 1650 mm
• Table lengthening ✔
• Table width 380 mm
• Tiller output 2.2 kW
• Tool diameter max. 200 mm
• Trimming length 2600 mm
• Trimming shoe ✔
• Useful length of the spindle 100 mm
• Width 700 mm
