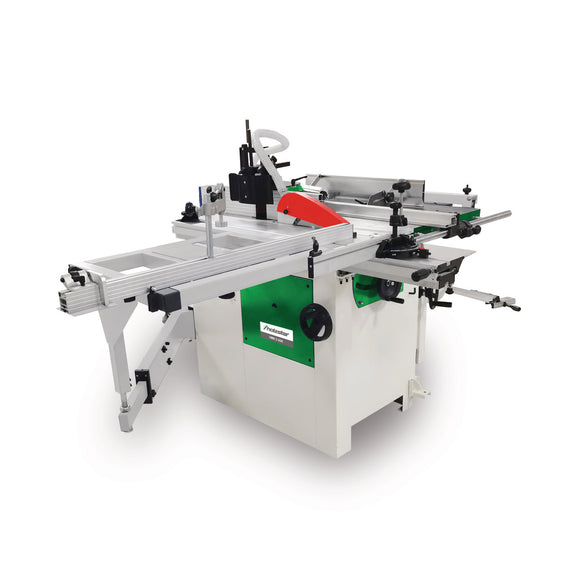

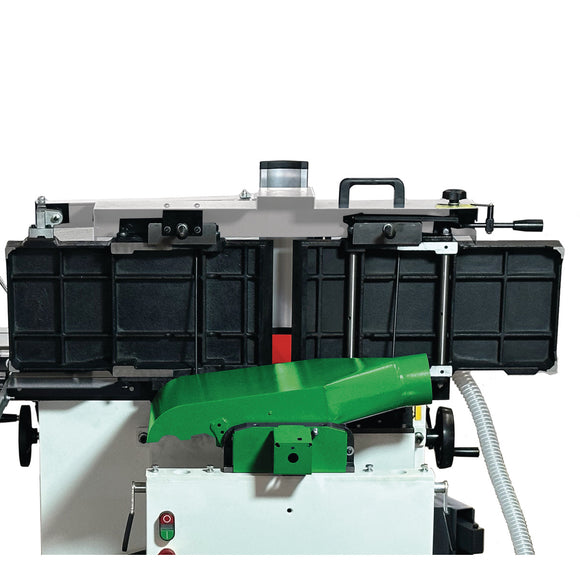

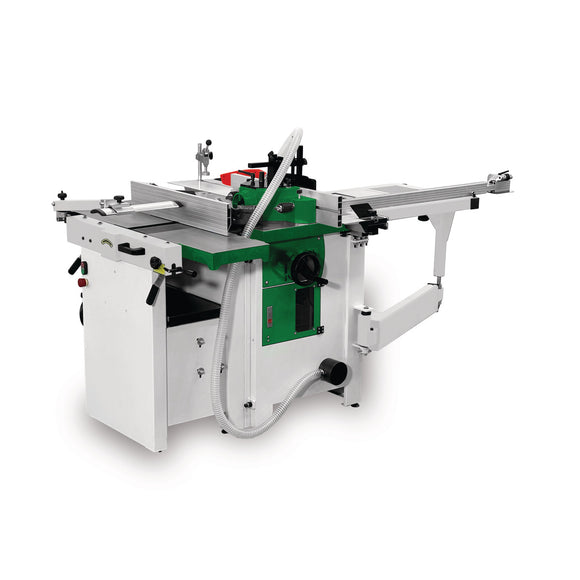

Universal multiple combination UMK 5-260 230V

• (Main) saw blade speed 4000 min¯¹
• Diameter of (main) saw blade 254 mm
• Extraction port diameter thickness 100 mm
• Feed shaft diameter 32 mm
• Feed speed 7 m/min
• Frequency 50 Hz
• Height 1300 mm
• Infeed table length 1120 mm
• Infeed table width 260 mm
• Input power moulder 1.5 kW
• Input power planer 2.2 kW
• Input power saw 2.2 kW
• Length 2200 mm
• Mandrel diameter 30 mm
• Max. cutting depth of joints 4 mm
• Max. cutting depth thickness 4 mm
• Max. cutting height at 45° 63 mm
• Max. cutting height at 90° 78 mm
• Max. tool diameter 160 mm
• Net weight 362 kg
• Number of planing blades 3 St

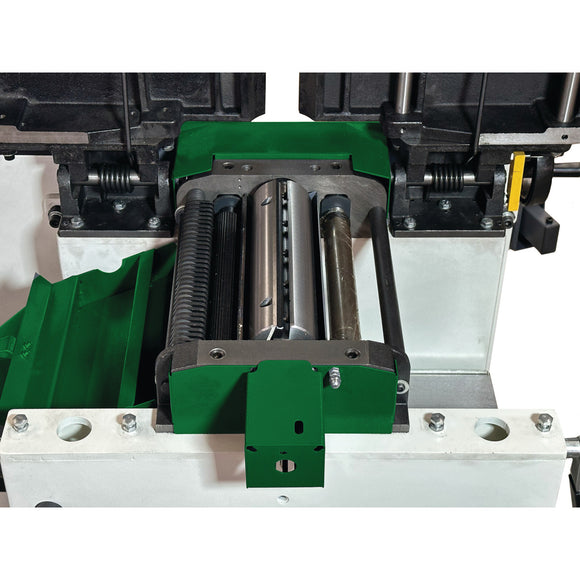

• Planing shaft diameter 70 mm
• Planing shaft speed 5500 min⁻¹
• Saw blade angle 90 – 45 °
• Saw blade protection extraction port diameter 30 mm

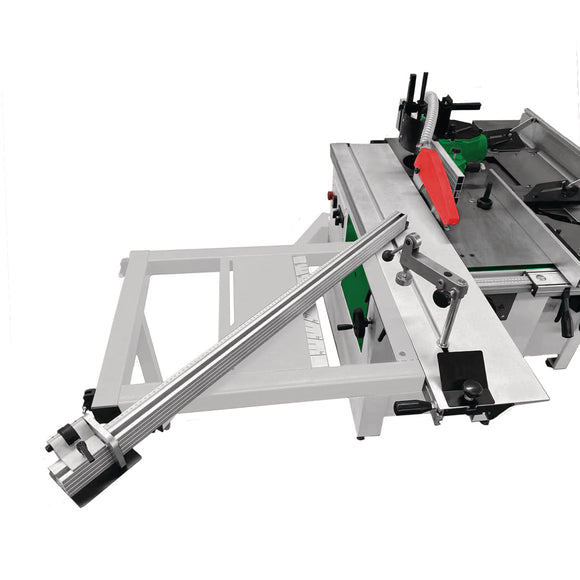

• Sliding table length 1300 mm
• Sliding table width 238 mm
• Sound pressure level idle 80 dB(A)
• Sound pressure level load 92 dB(A)
• Spindle height adjustment 110 mm
• Spindle speed(s) 1400/4000/6000/9000 min⁻¹
• Suction port diameter cutter 100 mm
• Supply voltage 230 V
• Table height 850 mm
• Table length 920 mm
• Table width 410 mm
• Thicknessing table length 545 mm
• Thicknessing table width 258 mm
• Trimming length 1300 mm
• Usable spindle length 105 mm
• Width 1330 mm
• Working height max. thickness 225 mm
• Working height min. thickness 5 mm

• Eccentric clamp
• Angle fence with aluminum profile and hold-down device

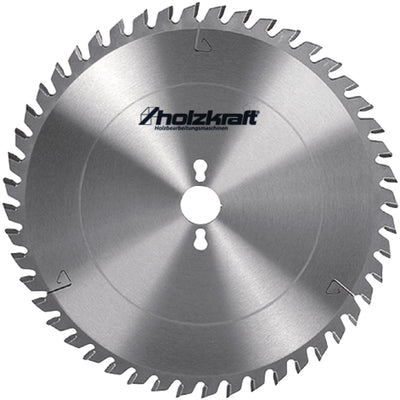

• 1x saw blade 254x30x3 mm Z36

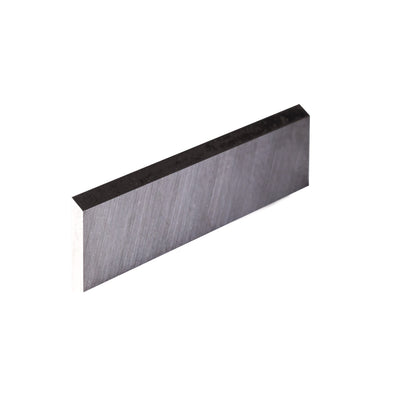

• 3x planer blade 250x30x3 mm
