Electric trolley EFW 1-1-1
Electric trolley EFW 1-1-2
Electric trolley EFW 1-1-3

Electric trolley EFW 1-1

€1.076,25 EUR (€875,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 6194310 Barcode: 4036351230878

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

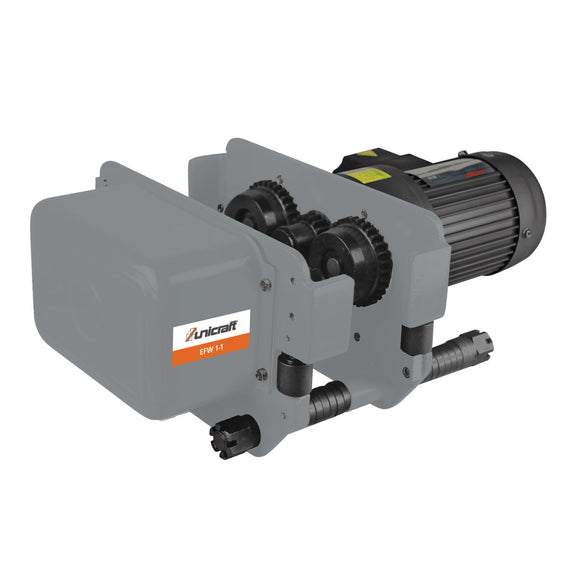

Electric trolley EFW 1-1.
  • Power connection and control of the chassis via the control bottle of the associated electric chain hoist
  • Suitable for beams with profile types I, IPB, IPBl, IPBv and IPE and specified carrier flange width
  • Accessory for electric chain hoists EKZT 5-1 (Art. : ) and EKZT 10-1 (Art. : )


.
  • Absorbed motor power 0.4 kW
  • Carrier flange width 74 – 140 mm
  • Control cabinet extension 135 mm
  • Degree of protection IP 54
  • Distance between holding eye and support surface 145 mm
  • Frequency 50 Hz
  • Height 260 mm
  • Holding eye width 24 mm
  • Length 715 mm
  • Load capacity 1 t
  • Max. curve radius 4500 mm
  • Motor extension 310 mm
  • Mounting plate thickness 14 mm
  • Net weight 26 kg
  • Supply voltage 400 V
  • Travel speed 13.5 m/min
  • Wheel diameter 68 mm
  • Width 340 mm
