Carif 320 BA CNC Automatic Hydraulic Single-Mitre Bandsaw

Tax includedShipping calculated at checkout

SKU: 320BACNC

14 Day
Return Policy
Warranty
12 months
Fast
Delivery

Contact us about this product

WhatsApp
Description Features Delivery contents Shipping

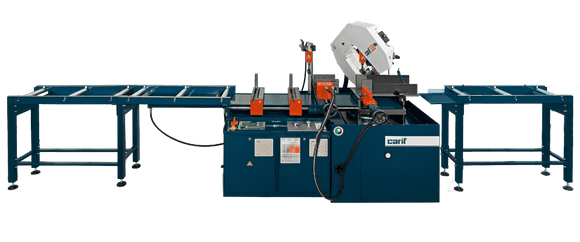

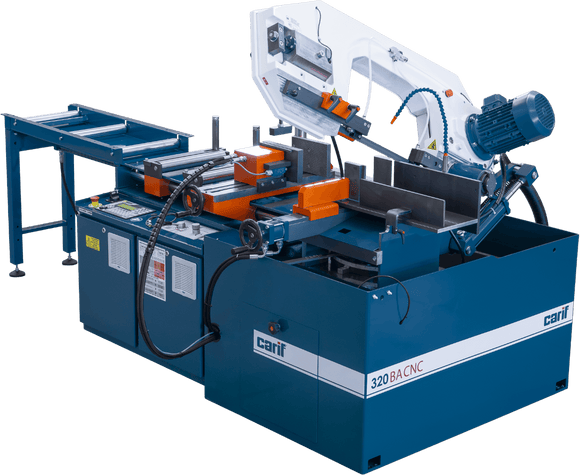

Carif 320 BA CNC is an automatic hydraulic bandsaw designed for reliable, repeatable cutting of solid bars and other demanding materials.

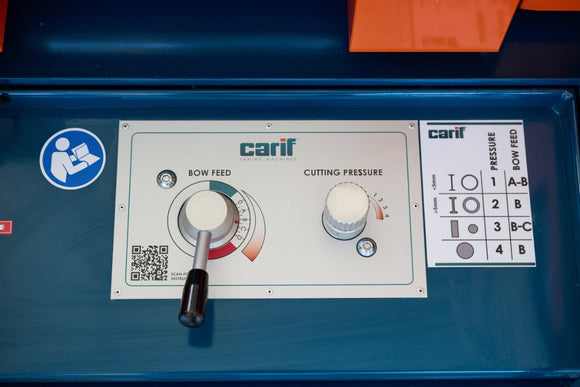

Its rigid construction, robust cast components and 2.2 kW motor with electronic variable speed control provide stable cutting performance across a wide range of applications. The CARIF hydraulic control system manages both bow pressure and feed, helping maintain consistent cutting conditions during continuous production.

Hydraulic vices simplify material clamping, while automatic memorisation of the cutting start point and cutting length reduces setup and adjustment time between jobs.

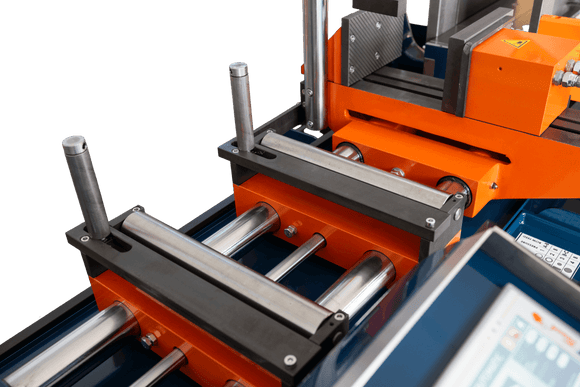

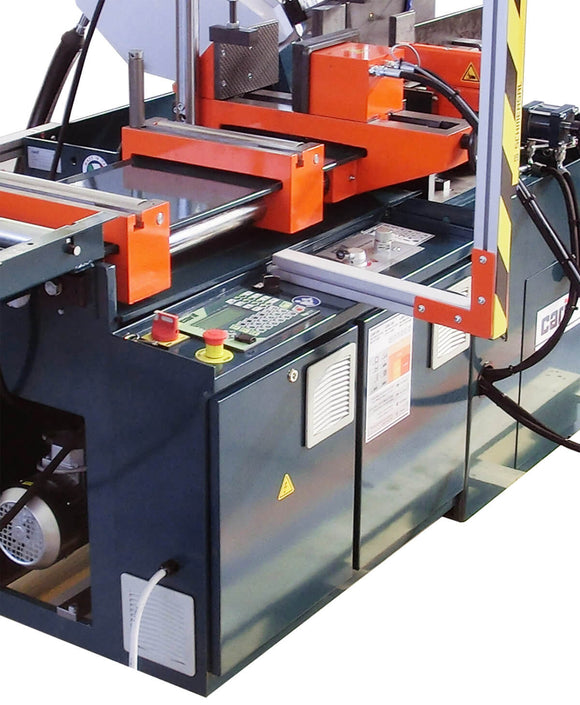

With intuitive CNC control and automated cutting functions, the 320 BA CNC is well suited to workshops and production environments that require efficient handling of longer material lengths and repeat cutting cycles.

  • Cutting capacity: Ø275 mm; 320 × 220 mm
  • Mitre cutting range: 90° to +60°
  • Cutting range 90° round: 275 mm
  • Cutting range 90° square: 265* / 250 mm
  • Cutting range 90° rectangular: 320 × 220 mm
  • Cutting range +45° round: 200 mm
  • Cutting range +45° square: 185 mm
  • Cutting range +45° rectangular: 185 × 220 mm
  • Cutting range +60° round: 130 mm
  • Cutting range +60° square: 130 mm
  • Cutting range +60° rectangular: 120 × 140 mm
  • Bundle cutting capacity at 90° (optional): 320 × 230 mm
  • Motor power: 2.2 kW
  • Saw band speed: 15–120 m/min, electronically variable
  • Saw band size: 3025 × 27 × 0.9 mm
  • Automatic hydraulic operation with user-friendly CNC control
