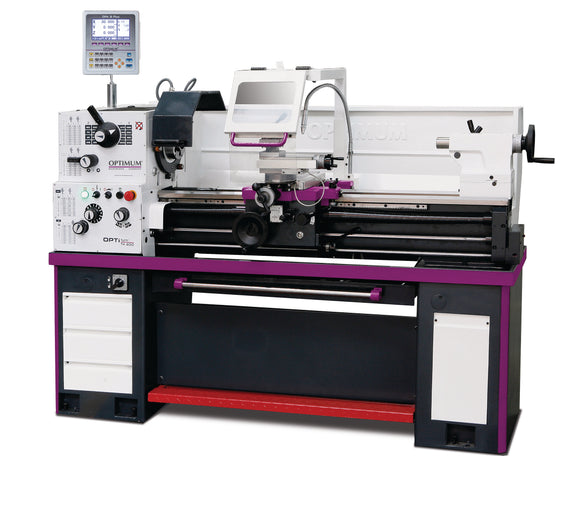

The Optimum OPTIturn TH 4010D is a fully equipped centre lathe with a DPA 31 Plus digital position indicator, a hardened and ground Z-axis guideway and spindle nose concentricity better than 0.015 mm. The digital readout, fine-scale handwheels and adjustable wedge-strip guides let you hold tight tolerances and repeat dimensions without constant manual measuring. The two-channel safety electronics and foot-operated emergency stop keep the operator protected during turning.
Key features
- DPA 31 Plus digital position indicator
- Hardened and ground Z-axis guideway
- Heavily ribbed prism bed made of grey cast iron, induction-hardened and precision-ground
- Precisely machined slide
- Guaranteed concentricity of the spindle nose better than 0.015 mm
- Spindle mount Camlock DIN ISO 702-2 No. 5
- Main spindle runs in an oil bath
- Hardened and ground gear wheels and shafts, running smoothly in an oil bath in precision bearings
- All guides adjustable with wedge strips
- Quick, tool-free adjustment with a clamping lever
- Handwheels with adjustable fine scaling of 0.04 / 0.02 mm
- Safety handwheels with push-out function on the X and Z axes
- Top slide adjustment range ±90°
- Right/left rotation switchable on the bed slide
- 24 V DC electrics
- Two-channel safety electronics
- Switch with life cycle calculation, tested in accordance with EN ISO 13849
- Motor protection switch
- Lockable main switch
- Emergency stop with foot actuation
- Coolant device
- LED machine lamp in the chip guard
- Pull-out chip tray with guide rails
- Machine base with three panels (no compartments)
