Newall DP700 Digital Readout System

Tax includedShipping calculated at checkout

14 Day
Return Policy
Warranty
12 months
Fast
Delivery

Contact us about this product

WhatsApp
Description Features Delivery contents Shipping

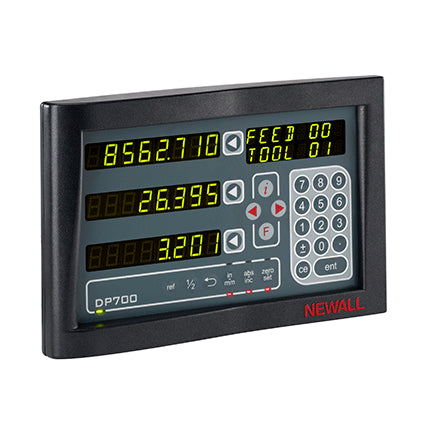

The Newall DP700 is a powerful and intuitive digital readout system designed for milling, boring, turning, grinding and general machining applications.

Housed in a rugged, ergonomically designed cast enclosure, the DP700 combines clear LED displays, a wide viewing angle, an intuitive message window and a durable membrane keypad for reliable workshop operation.

For turning applications, the innovative Multiple Tool Datum function allows each tool to have its own independent datum. This is particularly useful when working with quick-change or turret-style tool posts and multiple tools, such as roughing, finishing, threading and internal boring tools.

Tool settings can be adjusted while viewing the live position, and changing the datum for one tool does not affect the settings of the others. This simplifies tool setup and supports faster, more efficient machining.

Features:

  • Suitable for milling, boring, turning, grinding and general machining
  • Multiple Tool Datum function
  • Independent datum setting for each tool
  • Quick tool edits with live position display
  • Bolt hole circle routine
  • Arc contouring
  • Polar coordinate readings
  • Line hole routine
  • Programmable memory and teach function
  • Tool offsets
  • Axis summing
  • Feed-rate display
  • Linear and segmented error compensation
  • RS-232 output
  • Clear LED displays with a wide viewing angle
  • Intuitive message window
  • Long-life membrane keypad
  • Rugged solid-cast construction
  • Safe, low-voltage external power supply

Availability and lead time: please contact our team for confirmation.
