Optimum OPTIdrill DQ 25 upright drill (230 V)

€842,55 EUR

Tax includedShipping calculated at checkout

SKU: 3191046

14 Day
Return Policy
Warranty
12 months
Fast
Delivery

In stock!

Contact us about this product

WhatsApp
Description Features Delivery contents Shipping

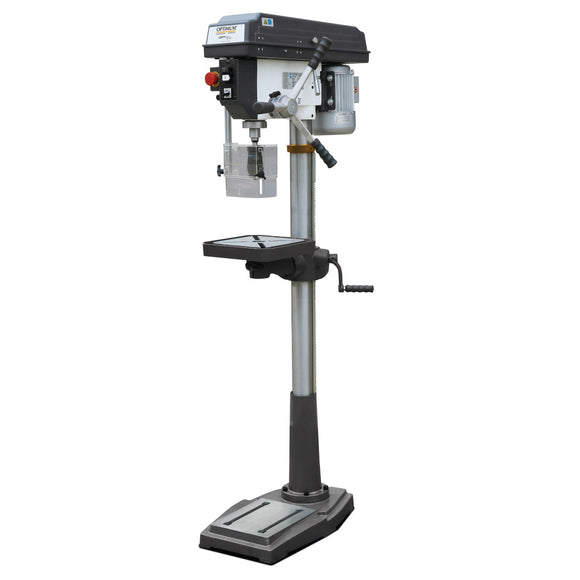

Optimum OPTIdrill DQ 25 upright drill (230V)

The Optimum OPTIdrill DQ 25 is an upright drill with a 25 mm steel drilling capacity, twelve speeds from 200 to 2440 min⁻¹ and an MT 3 spindle. Its toothed GATES V-belt drive and precision spindle with concentricity better than 0.03 mm keep holes accurate in different materials, while the tiltable, rotating table with a 40 kg load capacity and the heavily ribbed base plate keep larger workpieces stable during drilling.

Key features

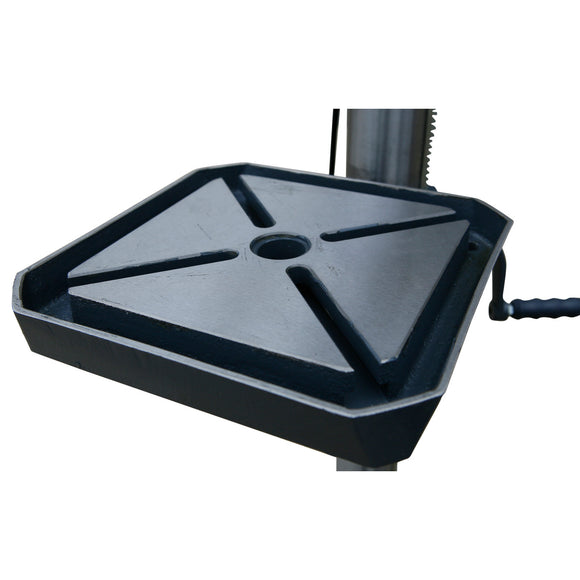

  • Precisely machined drilling table, tiltable ±45° sideways and rotatable 360°
  • Large, solid base plate with grooves, heavily ribbed on the back
  • Ground multi-spline spindle drive

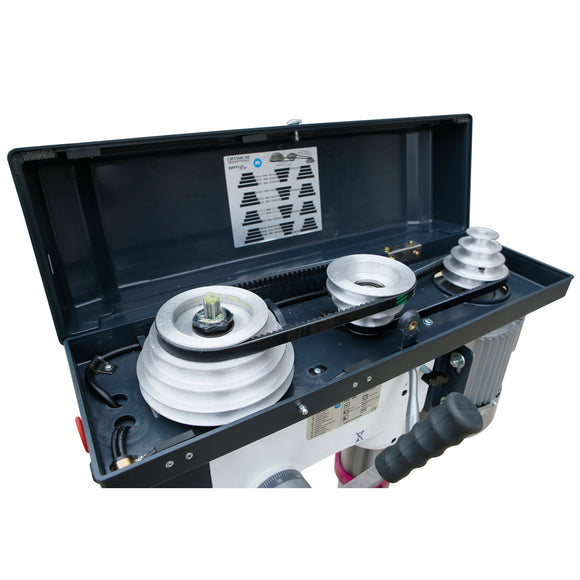

  • Aluminium pulleys with a toothed GATES quality V-belt for efficient power transmission
  • Guaranteed concentricity of better than 0.03 mm, measured in the drill spindle
  • Drill spindle with precision ball bearing
  • Quick-action drill chuck included as standard
  • Belt cover with safety switch
  • Easy-to-use switch with IP 54 protection
  • Separate emergency stop pushbutton switch

Technical specifications

Drilling capacity

  • Drilling capacity in steel: 25 mm
  • Continuous drilling capacity in steel: 20 mm
  • Quill stroke: 80 mm
  • Reach: 181 mm
  • Column diameter: 73 mm
  • Spindle mount: MT 3

Speed and drive

  • Speed range: 200 - 2440 min⁻¹
  • Number of speeds: 12
  • Motor power: 0.75 kW
  • Supply voltage: 230 V, 50 Hz

Drilling table

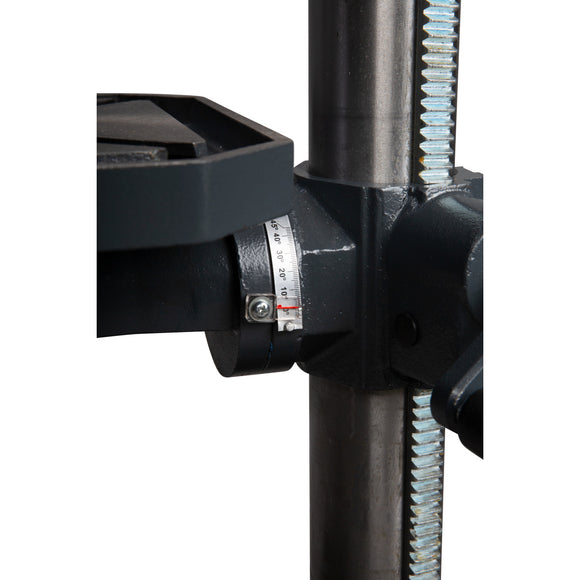

  • Table tilt angle: ±45°
  • Table rotation: 360°
  • Table working area: 280 × 280 mm
  • Table load capacity: 40 kg

Machine base

  • Base working area: 500 × 300 mm

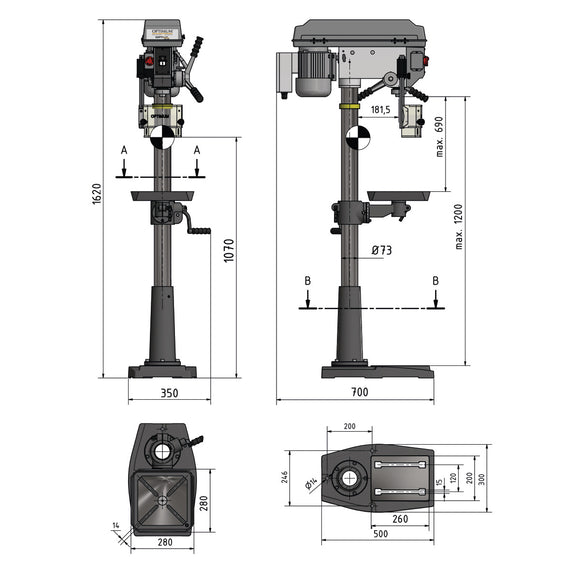

Dimensions and weight

  • Length: 700 mm
  • Width: 350 mm
  • Height: 1620 mm
  • Net weight: 71 kg
  • Quick action drill chuck 1 - 16 mm
  • T-nuts
  • drift punch
