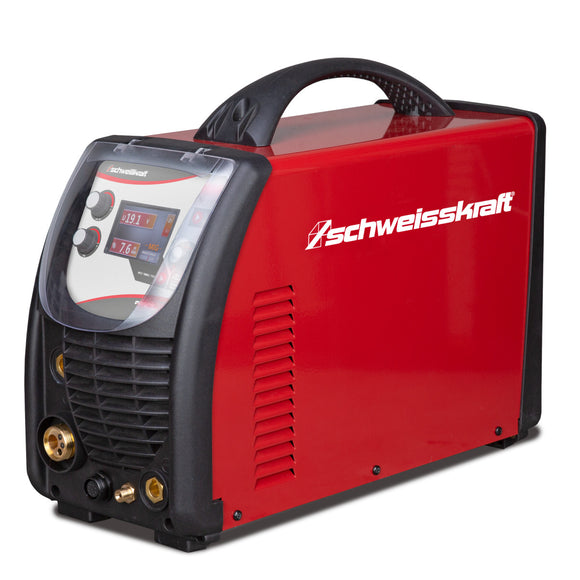

Multifunction inverter EASY-MIG 181 Multi.

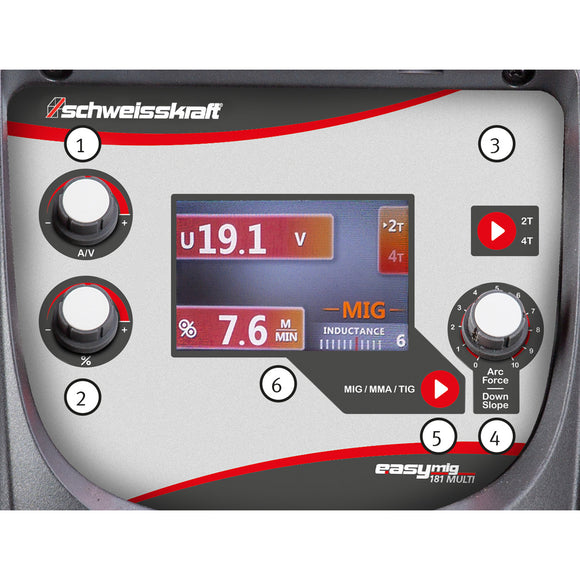

  • Simple stepless adjustment of the working point by selecting the voltage and wire speed via one knob each
  • Best welding results due to safe ignition and stable arc
  • Adjustable choke
  • Arc-force control: Due to the internal monitoring of welding current and welding voltage, short-circuits are quickly and safely resolved. This stabilises the arc and the electrode can be processed without problems
  • Filler wires can be easily welded by simple pole reversal
  • User-friendly adjustment also for TIG and electrode


.
  • Current at 100% DC 40°C 80 A
  • Current at 100% DC 40°C MIG/MAG 80 A
  • Current at 100% DC 40°C TIG DC 80 A
  • Current at 100% DC 40°C electrode 70 A
  • Current at 60% DC 40°C 105 A
  • Duty cycle at Imax. 40°C 20 %
  • Duty cycle at Imax. 40°C MIG/MAG 20 %
  • Duty cycle at Imax. 40°C TIG DC 20 %
  • Duty cycle at Imax. 40°C electrode 20 %
  • Efficiency 83.5 %
  • Frequency 50/60 Hz
  • Height 410 mm
  • Length 525 mm
  • Net weight 14,5 kg
  • Open circuit voltage 67.5 – 69 V
  • Power consumption Electrode 8,4 kVA
  • Power consumption MIG/MAG 8,41 kVA
  • Power consumption TIG DC 6,67 kVA
  • Power factor 0,6 cos phi
  • Setting range Electrode 10 - 160 A
  • Setting range MIG/MAG 40 - 180 A
  • Setting range TIG DC 10 - 180 A
  • Standard EN 60 974-1; -10
  • Supply voltage 230 V
  • Width 220 mm
  • Wire feed speed from to 2.0 - 13.5 m/min

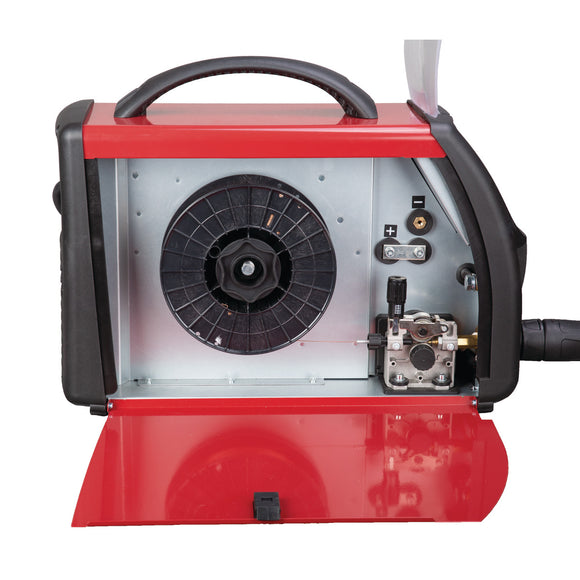

  • Wire feed unit 2 Rollers
  • Wire feet unit 1 Roll

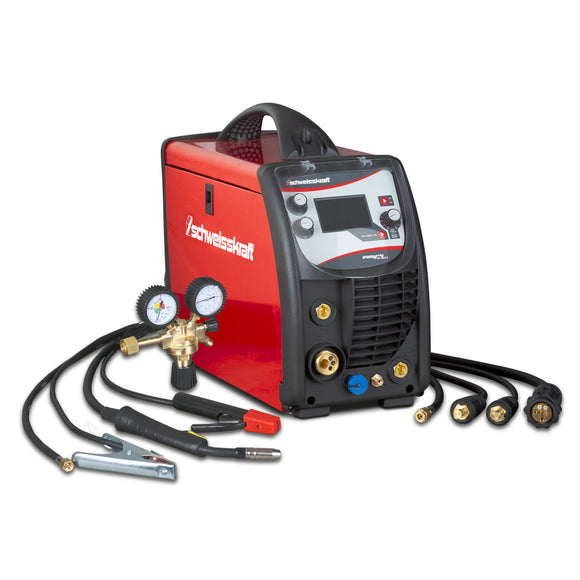

  • 3 m welding cable 16 mm² with 300A electrode holder
  • 3 m earth cable 16 mm² with 300A earth clamp
  • Torch MB 15 3 m
  • Gas hose 4 m including quick connector
  • Pressure reducer
  • Feed rolls 0.8 - 1.0 mm
