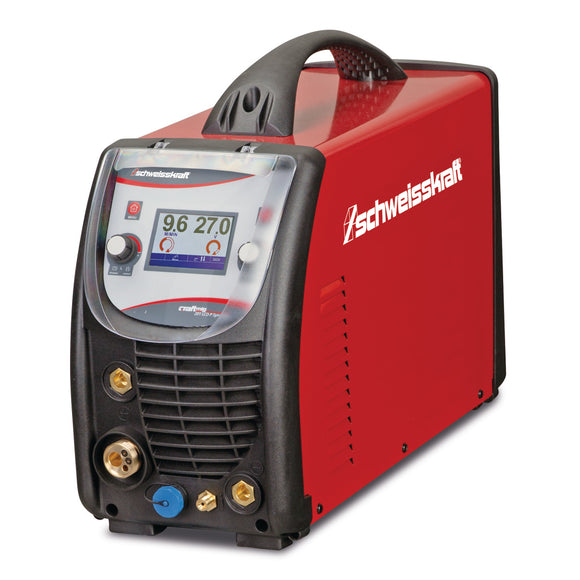

Pulse inert gas welder CRAFT-MIG.
  • Best welding results due to safe ignition and stable arc
  • Suitable for operation on a power generator
  • Easy adjustment due to synergy function - three steps to welding:
    1. gas, material, diameter wire
    2. 2/4 cycle, dots, interval
    3. material thickness

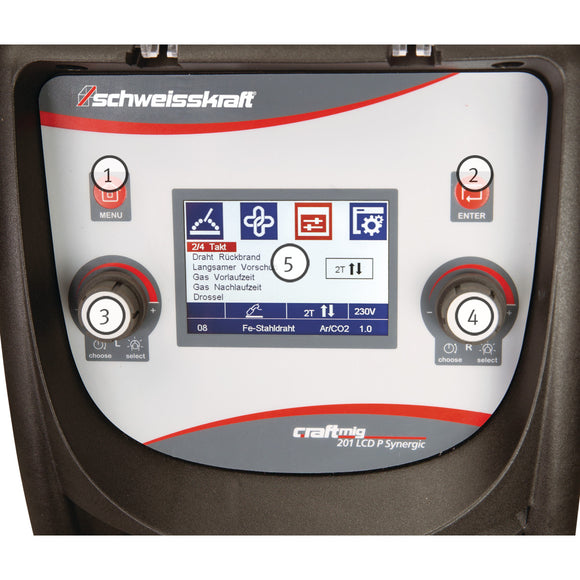

  • Exact adjustment of weldingparameters via digital display with job memory
  • The quiet running fans dissipate heat well from the devices and cause a high duty cycle
  • arc-force control: The internal monitoring of welding current and welding voltage ensures that short circuits are resolved quickly and safely. This stabilizes the arc and the electrode can be processed without any problems
  • CRAFT-MIG 201 LCD P Synergic equipped with PFC (power factor correction) allows best use also on cable drums


.
  • Cover flap Control panel ✔
  • Current at 100% DC 40°C 130 A
  • Duty cycle at Imax. 40°C 40 %
  • Efficiency 81.2 %
  • Frequency 50/60 Hz
  • Height 410 mm
  • Input current MMA: 32 ? TIG: 22 ? MIG: 28 kVA
  • Interval welding ✔
  • Length 560 mm
  • Net weight 15,5 kg
  • Open circuit voltage 65 ? 63 ? 65 V
  • Power consumption MIG/MAG 6.44 kVA
  • Power consumption TIG DC 5.06 kVA
  • Power consumption electrode 7.36 kVA
  • Power consumption in idle mode 24 W
  • Power factor 0.99 cos phi
  • Process MIG/MAG ✔
  • Process MMA ✔
  • Setting range MIG/MAG 25 – 200 A
  • Setting range TIG DC 10 - 200 A
  • Setting range electrode 10 - 200 A
  • Spot welding ✔
  • Standard EN 60 974-1; -10
  • Supply voltage 110/230 V
  • Width 220 mm
  • Wire feed speed from to 1,5 – 16,5 m/min
  • Wire feet unit 2 Rollers
  • weldable wires stainless steel from to 0.6 – 0.9 mm
  • weldable wires steel from to 0.6 – 1.0 mm
  • Feed rollers Ø0.8 - 1.0 mm steel
  • Torch SMB25 3m
  • 4m gas hose
  • Pressure reducer Argon/CO2 large
  • 3 m mains cable
