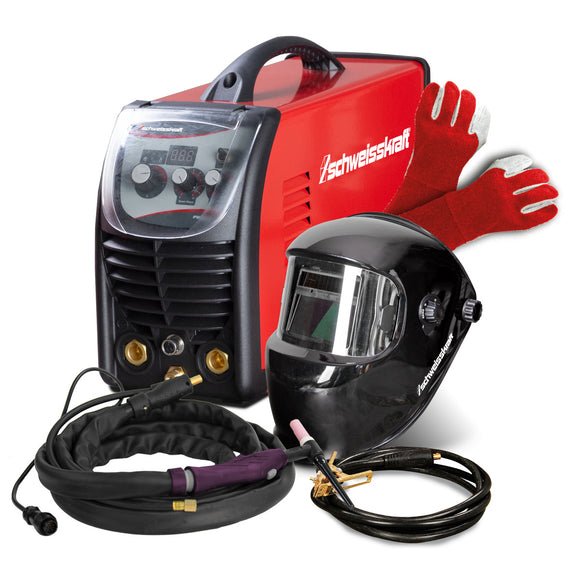

TIG Inverter EASY-TIG 181 DC Special offer

€799,86 EUR (€650,29 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 1074018SET Barcode: 4036351272953

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping
TIG Inverter EASY-TIG.
  • All devices are built in modern inverter technology
  • Ideally suited for assembly work (on the ladder, on the scaffolding. )with protection class IP 21 S, generally also for outdoor work

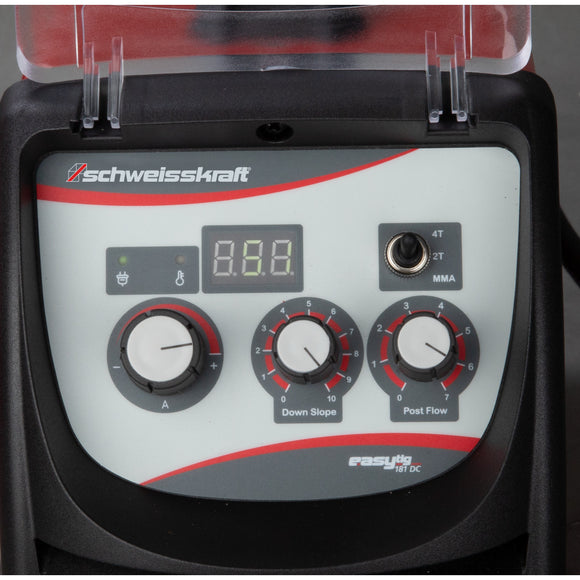

  • Accurate setting of welding parameters via digital display
  • Universally applicable for welding of all common electrode types
  • Suitable for use on the generator eg in company workshops, schools, metal construction, on construction sites or for farmers
  • TIG pulses enable welding with reduced heat input
  • HF high-frequency ignition ignites during TIG welding without touching the workpiece
  • The quietly running fan dissipates the heat well out of the devices, thus achieving a long duty cycle
  • Two-year Schweißkraft warranty


.
  • Cable length 2,2 m
  • Current at 100% DC 40°C TIG DC 100 A
  • Current at ED 100% 40°C Electrode 100 A
  • Current consumption electrode DC 42.6 A
  • Duty cycle at Imax. 40°C TIG DC 40 %
  • Duty cycle at max. current 40°C Electrode 40 %
  • Efficiency 80 %
  • Electrode adjustment range 10 – 180 A
  • Frequency 50/60 Hz
  • Height 280 mm
  • Input current TIG DC 28.8 A
  • Length 430 mm
  • Negative mains voltage tolerance 10 %
  • Net weight 7.3 kg
  • Open circuit voltage MMA 75.5 / TIG 92.6 V
  • Positive mains voltage tolerance 10 %
  • Power consumption TIG 3.9 kVA
  • Power consumption electrode 5.9 kVA
  • Power consumption in idle mode < 50 W
  • Power factor 0,6 cos phi
  • Required generator output >9.8 kVA
  • Setting range TIG DC 10 – 180 A
  • Supply voltage 230±10% V
  • Weldable electrodes 1.6 – 4.0 mm
  • Width 150 mm
  • Welding helmet VarioProtect XL-W TC
  • 3 m welding cable 16 mm² with electrode holder 300 A
  • 3 m ground cable 16 mm² with ground terminal 300 A
  • Torch ECR17 4 m
  • 4 m gas hose including quick connector
  • TIG welding glove Basic size L/size 9

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.
