TIG Inverter EASY-TIG 201 DC PULSE-1
TIG Inverter EASY-TIG 201 DC PULSE-2
TIG Inverter EASY-TIG 201 DC PULSE-3
TIG Inverter EASY-TIG 201 DC PULSE-4
TIG Inverter EASY-TIG 201 DC PULSE-5
TIG Inverter EASY-TIG 201 DC PULSE-6
TIG Inverter EASY-TIG 201 DC PULSE-7

TIG Inverter EASY-TIG 201 DC PULSE

€896,67 EUR (€729,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 1074020 Barcode: 4036351251507

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

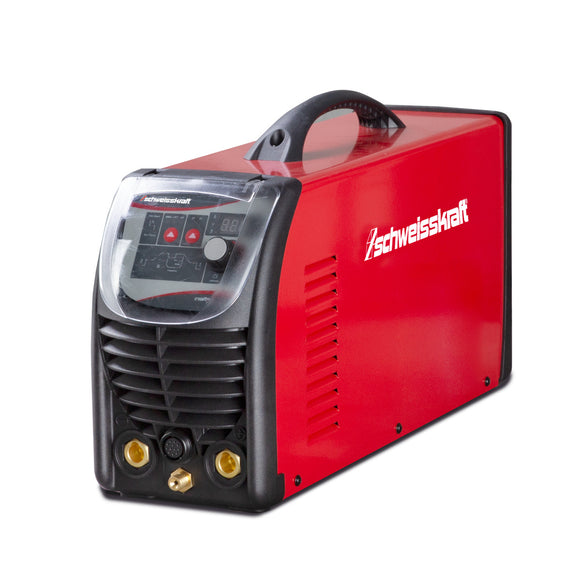

TIG Inverter EASY-TIG.
  • All devices are built in modern inverter technology
  • Ideally suited for assembly work (on the ladder, on the scaffolding. )with protection class IP 21 S, generally also for outdoor work

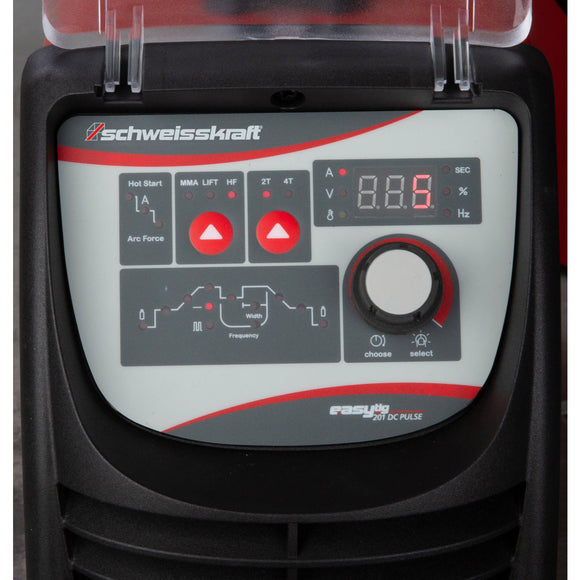

  • Accurate setting of welding parameters via digital display
  • Universally applicable for welding of all common electrode types
  • Suitable for use on the generator eg in company workshops, schools, metal construction, on construction sites or for farmers
  • TIG pulses enable welding with reduced heat input
  • HF high-frequency ignition ignites during TIG welding without touching the workpiece
  • The quietly running fan dissipates the heat well out of the devices, thus achieving a long duty cycle
  • Adjustable welding curve
  • Two-year Schweißkraft warranty


.
  • Cable length 2,2 m
  • Current at 100% DC 40°C TIG DC 120 A
  • Current at ED 100% 40°C Electrode 120 A
  • Current consumption electrode DC 47.2 A
  • Duty cycle at Imax. 40°C TIG DC 30 %
  • Duty cycle at max. current 40°C Electrode 30 %
  • Efficiency 80 %
  • Electrode adjustment range 5 - 200 A
  • Frequency 50/60 Hz
  • Height 280 mm
  • Input current TIG DC 32.9 A
  • Length 430 mm
  • Negative mains voltage tolerance 10 %
  • Net weight 7.7 kg
  • Open circuit voltage MMA 90.5/TIG 60.3 V
  • Positive mains voltage tolerance 10 %
  • Power consumption TIG 4.7 kVA
  • Power consumption electrode 6.9 kVA
  • Power consumption in idle mode < 50 W
  • Power factor 0,6 cos phi
  • Pulse rate 0.5 – 200 Hz
  • Required generator output >10.8 kVA
  • Setting range TIG DC 5 - 200 A
  • Supply voltage 230±10% V
  • Weldable electrodes 1.6 – 4.0 mm
  • Width 150 mm
  • Gas hose 4m incl. Quick connector
  • Burner TIG 26 4m
  • 3m ground cable 16mm² with ground terminal
  • 3m welding cable 16mm² with electrode holder
