Portable TIG AC/DC Inverter EASY-TIG 201 AC / DC PULSE Special offer

€1.594,44 EUR (€1.296,29 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 1074021SET Barcode: 4036351262671

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

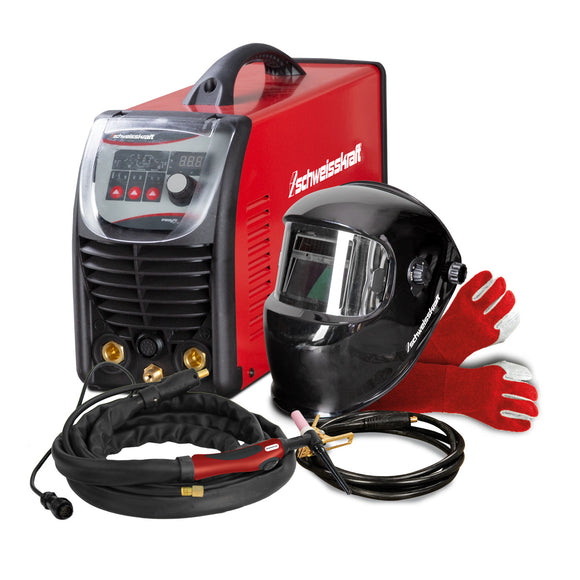

Portable TIG AC/DC Inverter EASY-TIG 201 AC / DC PULSE Special offer.
  • All devices are built in modern inverter technology
  • Ideally suited for assembly work (on the ladder, on the scaffolding. )with protection class IP 21 S, generally also for outdoor work

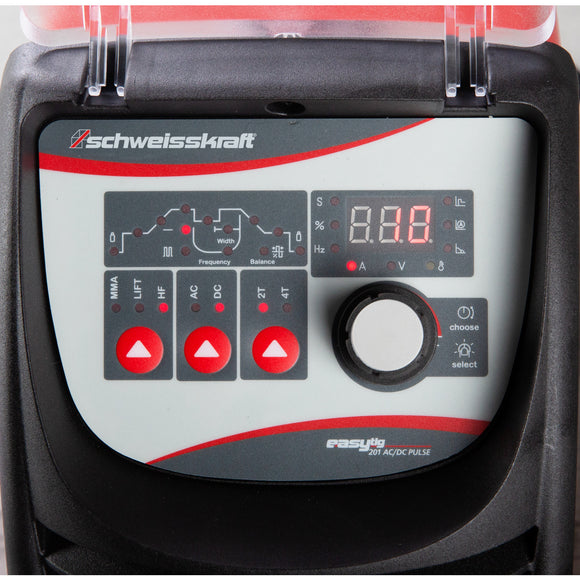

  • Accurate setting of welding parameters via digital display
  • Universally applicable for welding of all common electrode types
  • Suitable for use on the generator for example in company workshops, schools, metal construction, on construction sites or for farmers
  • TIG pulses enable welding with reduced heat input
  • HF high-frequency ignition ignites during TIG welding without touching the workpiece
  • The quietly running fan dissipates the heat well out of the devices, thus achieving a long duty cycle
  • Adjustable welding curve


.
  • Cable length 2.2 m
  • Current at 100% DC 40°C TIG DC 110 A
  • Current at ED 100% 40°C Electrode 95 A
  • Current consumption TIG AC 34 A
  • Current consumption electrode DC 42.9 A
  • Duty cycle at Imax. 40°C TIG DC 40 %
  • Duty cycle at max. current 40°C Electrode 30 %
  • Efficiency 80 %
  • Electrode adjustment range 10 – 170 A
  • Frequency 50/60 Hz
  • Height 280 mm
  • Input current TIG DC 29.1 A
  • Input current electrode AC 40.2 A
  • Length 460 mm
  • Negative mains voltage tolerance 10 %
  • Net weight 9 kg
  • Open circuit voltage AC TIG 73.4/DC TIG 69.8/AC MMA 69.3/DC MMA 69.3 V
  • Positive mains voltage tolerance 10 %
  • Power consumption TIG 4 kVA
  • Power consumption electrode 5.9 kVA
  • Power consumption in idle mode < 50 W
  • Power factor 0.6 cos phi
  • Pulse rate 0.5 – 200 Hz
  • Required generator output >9.8 kVA
  • Setting range TIG DC 10 – 170 A
  • Supply voltage 230±10% V
  • Weldable electrodes 1.6 – 4.0 mm
  • Width 150 mm
  • Gas hose 4 m incl. Quick connector
  • Burner TIG 26 4 m
  • Welding helmet VarioProtect XL-W TC
  • 3 m ground cable 25 mm² with ground terminal
  • TIG welding glove Basic size L/size 9
