Portable TIG DC Inverter CRAFT-TIG 201 DC P PULSE Special offer set

€1.327,65 EUR

Tax includedShipping calculated at checkout

SKU: 1074201SET Barcode: 4036351262688

14 Day
Return Policy
Warranty
12 months
Fast
Delivery

Available on backorder ⓘ

Contact us about this product

Paying with a business card? Please contact our manager, who will assist you with your purchase | +353 (0) 9064 32000

Portable TIG DC Inverter CRAFT-TIG.
  • Built in modern inverter technology
  • Universally applicable for welding all common types of electrodes
  • Ideally suited for assembly work due to protection class IP 21S generally also for outdoor work
  • Power factor correction PFC for trouble-free use also on cable drum
  • TIG pulsing enables welding with reduced heat input
  • HF high frequency ignition ignites during TIG welding without touching the workpiece
  • Multivoltage from 110 to 230 volts
  • Quiet running fans ensure good heat dissipation and high duty cycle
  • Time-controlled fan with stand-by mode

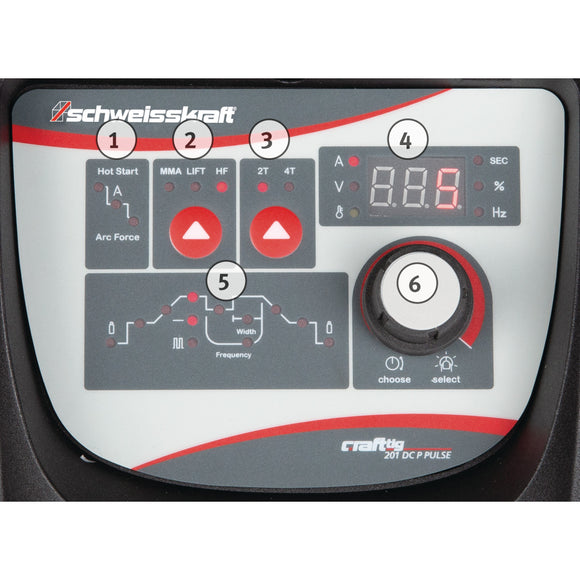

  • Precise setting and display of welding parameters via LC display
  • Adjustable welding curve
  • MMA mode with hot-start and arc-force control


.
  • Cable length 2,2 m
  • Current at 100% DC 40°C TIG DC 145 A
  • Current at ED 100% 40°C Electrode 135 A
  • Current consumption electrode DC 30.1 A
  • Duty cycle at Imax. 40°C TIG DC 50 %
  • Duty cycle at max. current 40°C Electrode 30 %
  • Efficiency 844 %
  • Electrode adjustment range 5 - 200 A
  • Frequency 50/60 Hz
  • Height 280 mm
  • Input current TIG DC 19.7 A
  • Length 500 mm
  • Net weight 9.7 kg
  • Open circuit voltage TIG 66.5, MMA 66.7 V
  • Power consumption TIG 4,5 kVA
  • Power consumption electrode 6.9 kVA
  • Power consumption in idle mode < 50 W
  • Power factor 0.99 cos phi
  • Power factor correction ✔
  • Process TIG pulsing ✔
  • Pulse rate 0.5 – 200 Hz
  • Required generator output >6.9 kVA
  • Setting range TIG DC 5 - 200 A
  • Sheet thicknesses 0.5 – 10 mm
  • Supply voltage 230±10% V
  • Total output TIG 4.5/MMA 6.9 kVA
  • Weldable electrodes 1.6 – 4.0 mm
  • Width 150 mm

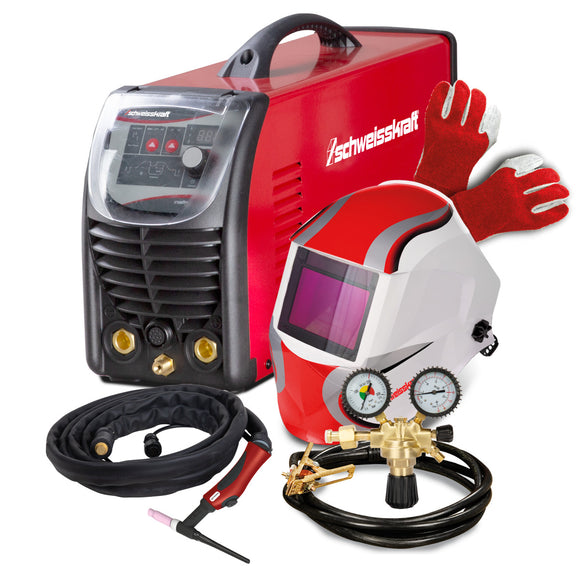

  • VarioProtect XXL W welding helmet
  • Gas hose 4 m incl. Quick connector
  • Torch TIG 26 4 m UP/DOWN function
  • Pressure reducer
  • 3 m ground cable 16 mm² with ground terminal
  • 3 m welding cable 16 mm² with electrode holder
  • TIG welding glove Basic size L/size 9
