Portable TIG AC/DC inverter CRAFT-TIG 201 AC/DC P PULSE Set 2

€3.402,66 EUR (€2.766,39 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 1074202SET2 Barcode: 4036351314677

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out

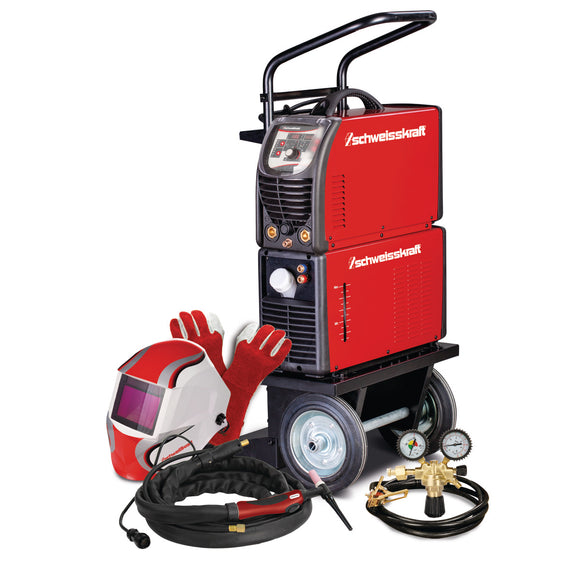

Portable TIG AC/DC inverter CRAFT-TIG 201 AC/DC P PULSE Set 2.
  • Built with modern inverter technology
  • Ideally suited for assembly work due to protection class IP 21S generally also for outdoor work
  • Universally applicable for welding of all common electrode types
  • TIG pulsing enables welding with reduced heat input
  • HF high frequency ignition ignites during TIG welding without touching the workpiece
  • Quiet running fans dissipate heat well from the equipment for long duty cycles
  • Time controlled fan with stand-by mode
  • Adjustable balance

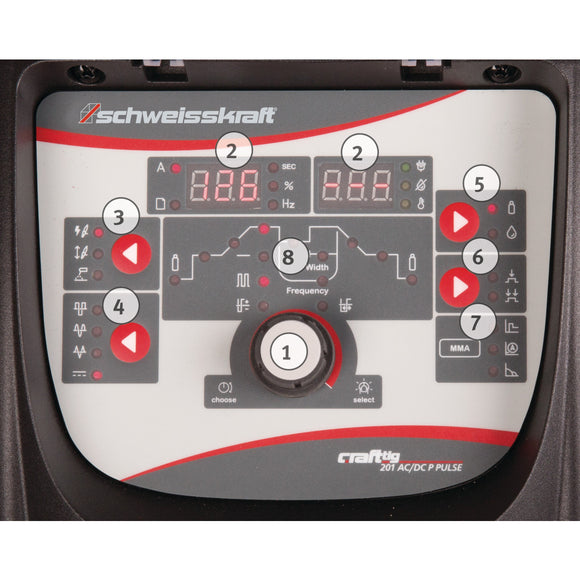

  • Precise setting of welding parameters via digital display
  • Device equipped with PFC (power factor correction), enables best use even on cable drums
  • Optional with water cooling
  • Multivoltage from 110 to 230 volts
  • Nine programs can be stored

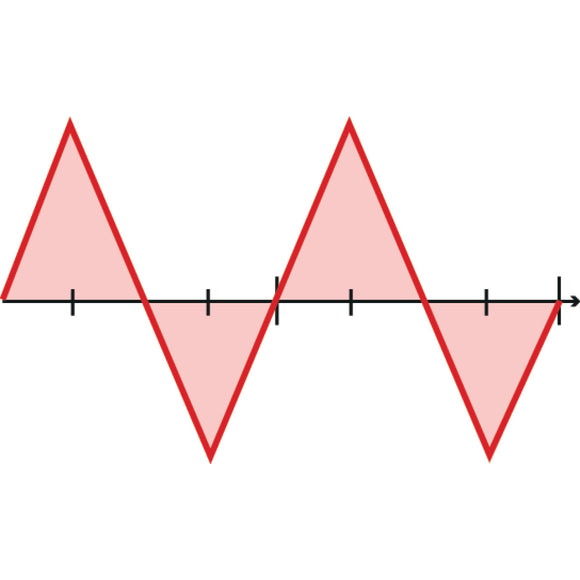

  • AC triangle wave welding output: reduced heat input for the same current setting, especially useful for welding thin metal
  • AC Sine Wave Welding Output: Traditional AC TIG welding waveform, quieter, "softer" arc characteristics.

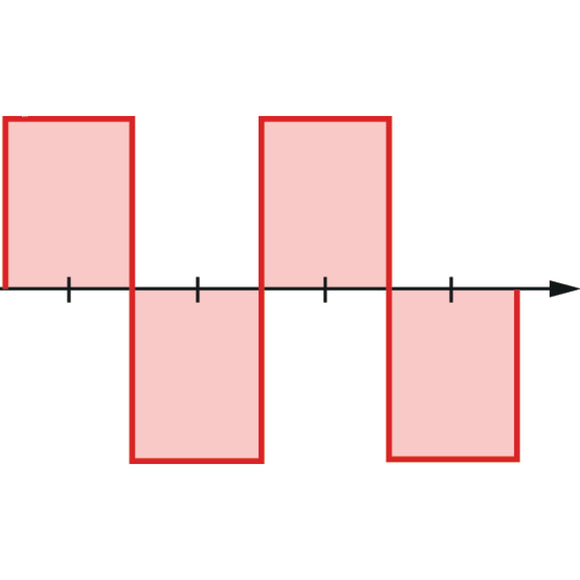

  • AC square wave: focused arc for maximum penetration, fast travel speed with best directional control
  • MMA mode with hot-start and arc-force control
  • Adjustable welding curve


.
  • Cable length 2.2 m
  • Current at 100% DC 40°C TIG DC 155 A
  • Current at ED 100% 40°C Electrode 120 A
  • Current consumption TIG AC 19.2 A
  • Current consumption electrode DC 30 A
  • Duty cycle at Imax. 40°C TIG DC 60 %
  • Duty cycle at max. current 40°C Electrode 35 %
  • Electrode adjustment range 10 – 200 A
  • Frequency 50/60 Hz
  • Height 350 mm
  • Input current TIG DC 20.5 A
  • Input current electrode AC 27.5 A
  • Length 580 mm
  • Net weight 14.5 kg
  • Open circuit voltage 10.4 (MMA), 70 (TIG) V
  • Power consumption TIG 4.7 kVA
  • Power consumption electrode 6.9 kVA
  • Power factor 0.99 cos phi
  • Power factor correction ✔
  • Process TIG pulsing ✔
  • Pulse rate 0.5 - 999 Hz
  • Required generator output >6.9 kVA
  • Setting range TIG DC 3 – 200 A
  • Sheet thicknesses 0.5 – 10 mm
  • Supply voltage 90 – 275 V
  • Torch cooling gas / water
  • Weldable electrodes 1.6 – 4.0 mm
  • Width 190 mm
  • Gas hose 4 m with quick connector
  • Torch TIG SR18 4 m (water cooled)
  • Torch TIG SR26 4 m with Up/Down function (gas-cooled)
  • Welding helmet VarioProtect XXL W
  • 3 m ground cable 16 mm² with ground clamp
  • Pressure reducer
  • Water cooling unit
  • Trolley
  • TIG welding glove Basic size L/Gr. 9
