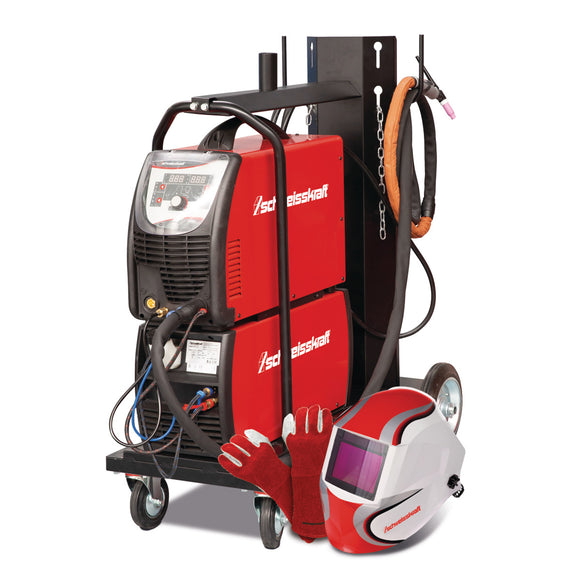

TIG Inverter CRAFT-TIG 323 AC/DC PULSE Set.
  • Built with modern inverter technology
  • Ideally suited for assembly work due to protection class IP 21S generally also for outdoor work
  • Universally applicable for welding of all common electrode types
  • TIG pulsing enables welding with reduced heat input
  • HF high frequency ignition ignites during TIG welding without touching the workpiece
  • Adjustable balance
  • Quiet running fans ensure good heat dissipation and high duty cycle
  • Time controlled fan with stand-by mode

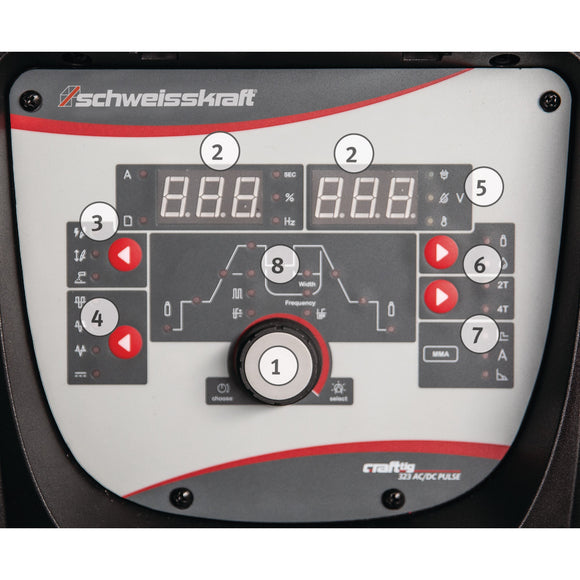

  • Precise setting of welding parameters via digital display
  • Nine programs can be stored

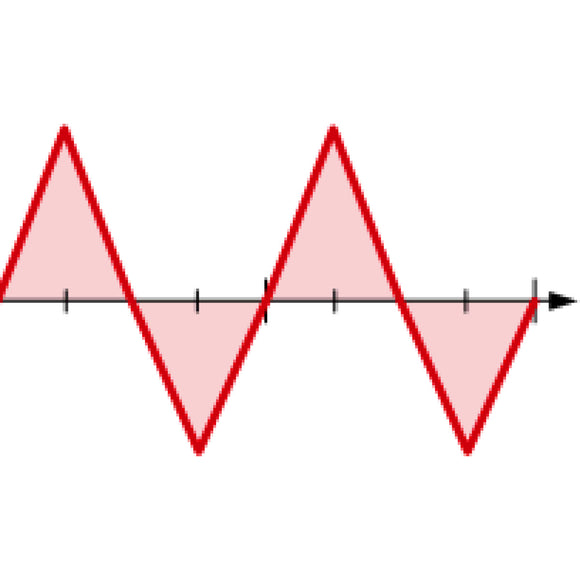

  • AC triangle wave welding output: reduced heat input for the same current setting, especially useful for welding thin metal

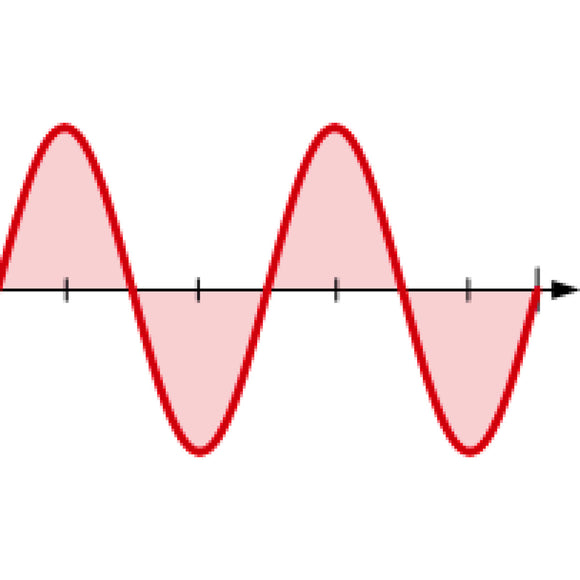

  • AC sine wave welding output: Traditional AC TIG welding waveform, quieter, "softer" arc characteristics

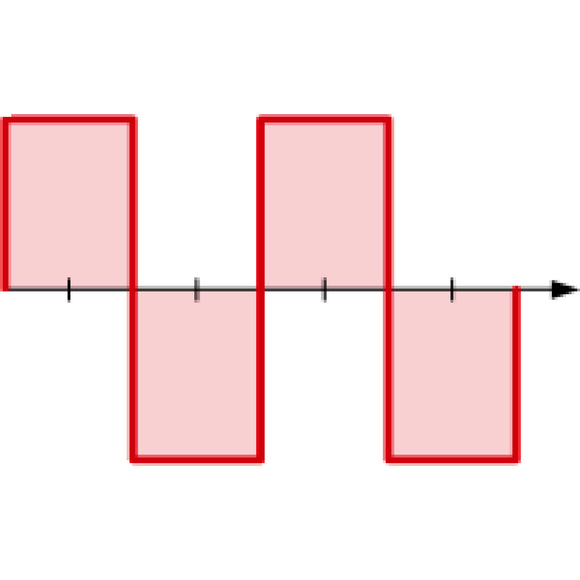

  • AC square wave: focused arc for maximum penetration, fast travel speed with best directional control
  • MMA mode with hot-start and arc-force control
  • .
  • Cable length 2,2 m
  • Current at 100% DC 40°C TIG DC 250 A
  • Current at ED 100% 40°C Electrode 250 A
  • Current consumption TIG AC 18.8 A
  • Current consumption electrode DC 25.8 A
  • Duty cycle at Imax. 40°C TIG DC 60 %
  • Duty cycle at max. current 40°C Electrode 60 %
  • Efficiency 90,48 %
  • Electrode adjustment range 10 – 320 A
  • Frequency 50/60 Hz
  • Height 445 mm
  • Input current TIG DC 19.5 A
  • Input current electrode AC 24.3 A
  • Length 630 mm
  • Net weight 26.2 kg
  • Open circuit voltage AC TIG 84.6/DC TIG 76.4/AC MMA 75.8 /DC MMA 75.6 V
  • Power consumption TIG 4,8 kVA
  • Power consumption electrode 6.5 kVA
  • Power consumption in idle mode < 50 W
  • Power factor 0.65 cos phi
  • Process TIG pulsing ✔
  • Pulse rate 0,5 - 999 Hz
  • Required generator output >10.3 kVA
  • Setting range TIG DC 10 – 320 A
  • Sheet thicknesses 0,5 - 15 mm
  • Supply voltage 400±10% V
  • Torch cooling gas / water
  • Trolley ✔
  • Water cooling device 4 l
  • Weldable electrodes 1.6 – 5.0 mm
  • Width 240 mm
  • VarioProtect XXL W welding helmet
  • 3 m ground cable 35 mm² with ground terminal 300 A
  • Torch Pro18 4 m, water cooled
  • 4 m gas hose including quick connector
  • Water cooler
  • Trolley
  • TIG welding glove Basic size L/size 9
