Electrode grinding machine EG 5

€584,25 EUR (€475,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 1692005 Barcode: 4036351279457

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

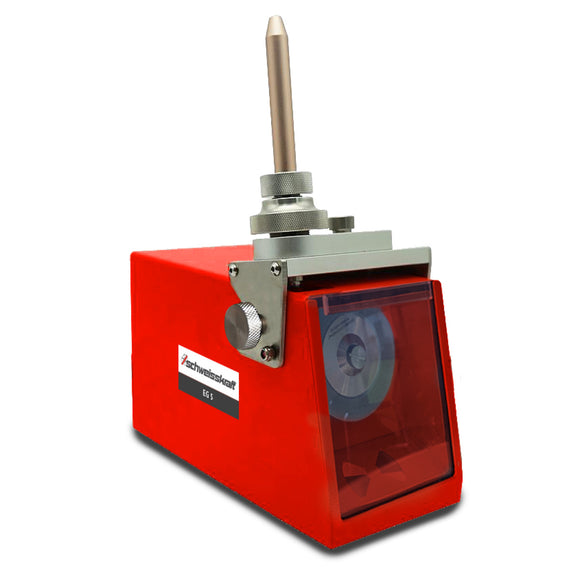

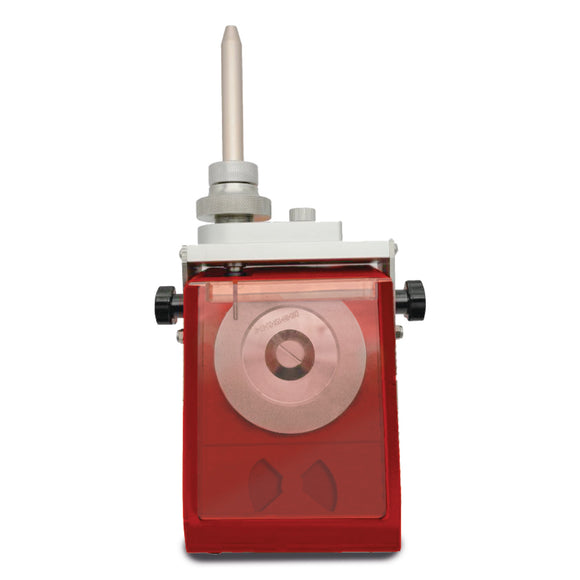

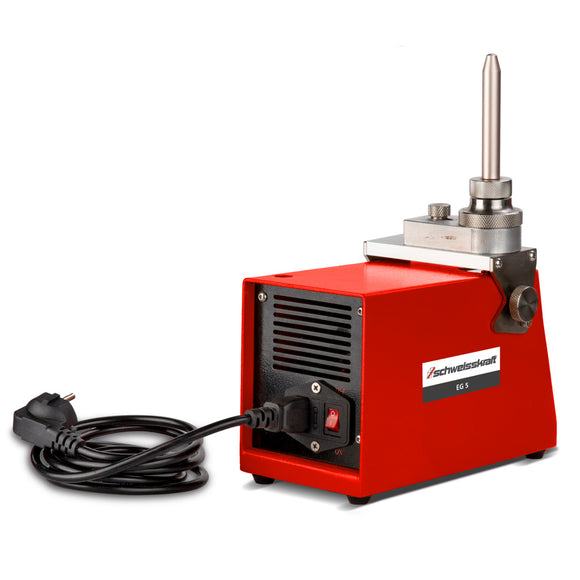

Electrode grinding machine EG 5.
  • For the perfect grinding of tungsten electrodes with a diameter of 1. 6 to 5 mm
  • Grinding angle stepless adjustable from 15 to 60°
  • Stop unit integrated in the device for setting the correct grinding length
  • Precise grinding in longitudinal direction causing better ignition performance, stable arc and longer service life
  • Easy grinding even with a length of only 35 mm, calottes or metal drops
  • Clamping also possible with work gloves via smooth knurled screw
  • Grinding dust can be simply removed via drawer


.
  • Diamond disk diameter 90 mm
  • Electrode diameter 1,6 - 5,0 mm
  • Frequency 50 Hz
  • Grain size 180
  • Grinding angle 15 – 60 °
  • Height 195 mm
  • Length 225 mm
  • Min. electrode length 35 mm
  • Motor power 0.07 kW
  • Net weight 4.1 kg
  • Speed 6500 min¯¹
  • Supply voltage 230 V
  • Width 150 mm
  • Diamond disc Ø 90 mm
  • One collet each 1,6 / 2,0 / 2,4 / 3,2 / 4,0 mm
