Hand held laser welding device MA1-45-1
Hand held laser welding device MA1-45-2
Hand held laser welding device MA1-45-3
Hand held laser welding device MA1-45-4
Hand held laser welding device MA1-45-5
Hand held laser welding device MA1-45-6
Hand held laser welding device MA1-45-7

Hand held laser welding device MA1-45

Tax includedShipping calculated at checkout

SKU: 1870045 Barcode: 4036351338178

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping
Hand held laser welding device MA1-45.
  • Innovative welding process with high-precision and high-performance laser beam
  • Great savings potential due to three to four times faster processing and reduction of the defect rate
  • Extremely fine and clean weld seams are possible at the same time at significantly higher welding speeds than with conventional welding processes

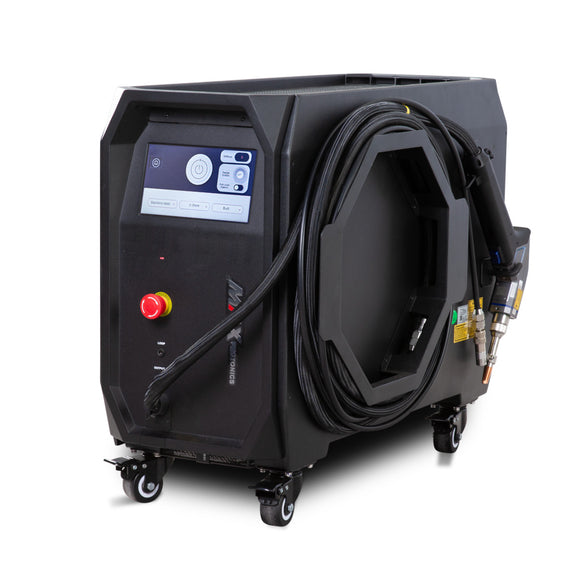

  • Compact laser welding system with large LCD touch display and trolley
  • Low heat input into the workpiece
  • With wobble function with a maximum deflection of 0 - 4 mm
  • Easy operation with laser welding gun and automatic wire feed: High quality welds, even without many years of welding experience
  • Program memory with 32 memory locations
  • For wire thicknesses from 0.
  • Duty cycle at 90% output power 50 %
  • Emission wavelength 1080 nm
  • Frequency 50 Hz
  • Height power source 542 mm
  • Input Power 4.5 kW
  • Length power source 667 mm
  • Output Power 1.2 kW
  • Red guide laser power > 400 µW
  • Spectrum width 3 nm
  • Supply voltage 230 V
  • Weight power source 38 kg
  • Width/Depth power source 276 mm
  • Wire feet unit 4 Rollers
  • Wobble from to 0 – 4 mm
  • weldable material thickness CuSi 3.5 mm
  • weldable material thickness aluminum 4 mm
  • weldable material thickness copper 1.5 mm
  • weldable material thickness stainless steel 4.5 mm
  • weldable material thickness steel 4.5 mm

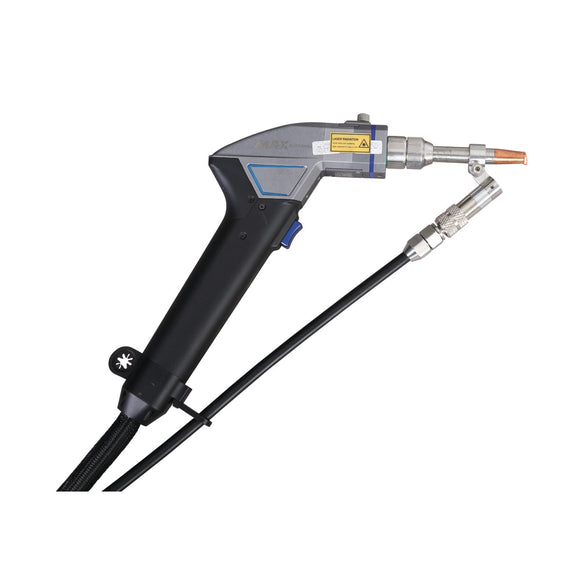

  • Laser gun with 5 m fiber cable

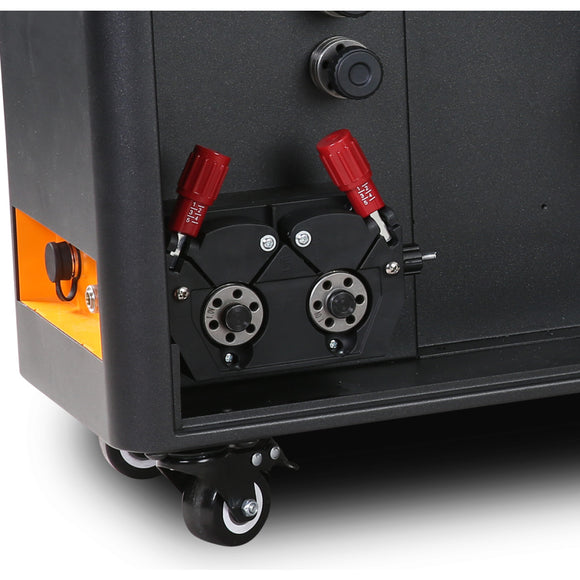

  • Wire feed unit
  • Five spare protection glasses for laser welding gun
  • Four wire feed nozzle for laser welding gun (1x each 0.8 mm, 1.0 mm, 1.2 mm, 1.6 mm)
  • Five nozzles for laser welding gun (1x each nozzle 1, nozzle 3, nozzle A, nozzle B and flat nozzle)
