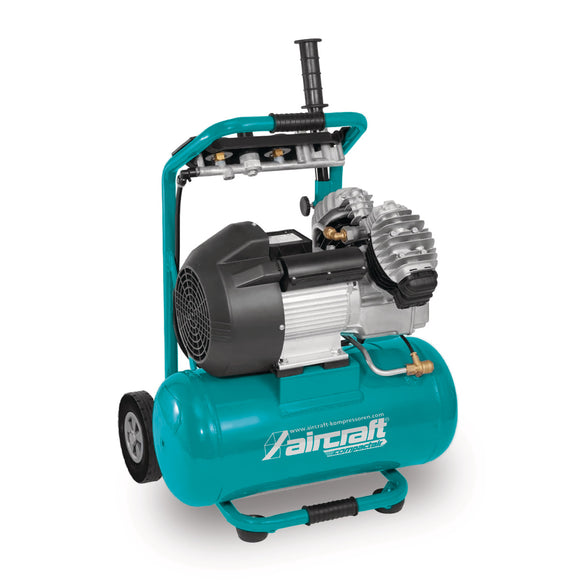

Mobile piston compressor COMPACT-AIR 321/24

€1.469,85 EUR (€1.195,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 2005305 Barcode: 4036351343486

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping
Mobile piston compressor COMPACT-AIR 321/24.
  • One manometer each to indicate the tank pressure and the set working pressure
  • With the pressure regulator, the desired working pressure can be infinitely fixed.
  • With two compressed air extraction points
  • Standard with quality quick couplings

    • Engine

    • High quality electric motors with high torque
    • Motor start unloading, thus no startup problems
    • Electric motor equipped with motor protection switch

    Tires

    • The large, stable wheels in conjunction with the wide wheelbase ensure safe and comfortable transport even on uneven ground.

    Protection

    • Compressor in protected sack cart construction
    • The fittings are optimally protected against damage by the tubular frame.

    Copper-pressure line

    Maintenance block

    • Standard with high quality Condor pressure switch
    • The on-off switch is protected and easily accessible.
    • Equipped with quality filter for dirt, oil and condensate separation

    Handle

    • As standard with rubber carrying handle against slipping during transport

    High performance aggregate HOS

    • The precisely machined piston is equipped with a high-alloy piston ring, oil scraper ring and oil scraper ring, which seal the piston from the cylinder wall.
    • The crankcase is filled with oil, which is sprayed against the cylinder wall with each piston stroke.
    • The oil scraper wipes the oil-wetted cylinder wall downwards.


    .
    • Air outlet 2 x 1/4 "
    • Compressor speed 1450 min¯¹
    • Condensate drain 1/4 "
    • Connection cable 1.85 m
    • Connector CEE 7/4
    • Explanation filling capacity at 6 bar working pressure
    • Explanation sound power level Lw Sound power level according to DIN EN ISO 3744 (RL 2000/14/EG)
    • Filling capacity 240 l/min
    • Frequency 50 Hz
    • Height 780 mm
    • Length 520 mm
    • Maximum pressure 10 bar
    • Motor duty cycle 75 %
    • Motor output power 2.2 kW
    • Motor power (input power) 2.8 kW
    • Net weight 36 kg
    • Number of compressor stages 1
    • Number of cylinders 2
    • Pressure vessel capacity 24 l
    • Sound power level 93 dB(A)
    • Sound pressure level 72 dB(A)
    • Suction capacity 310 l/min
    • Supply voltage 230 V
    • Width 500 mm
