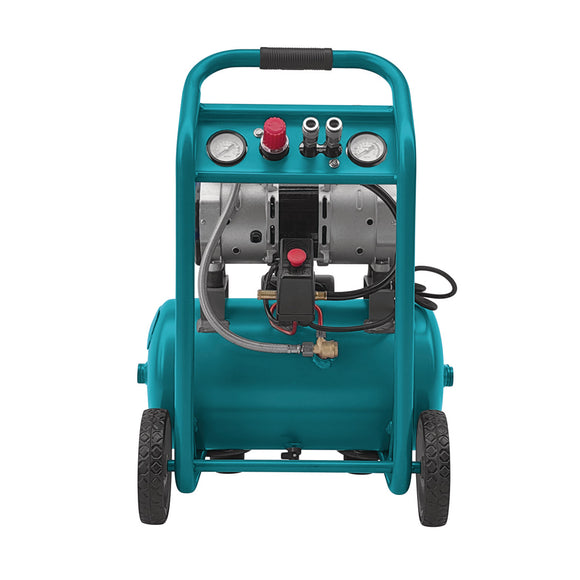

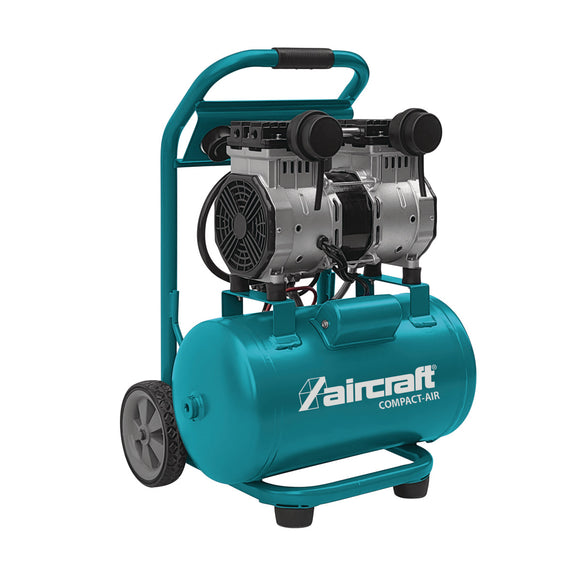

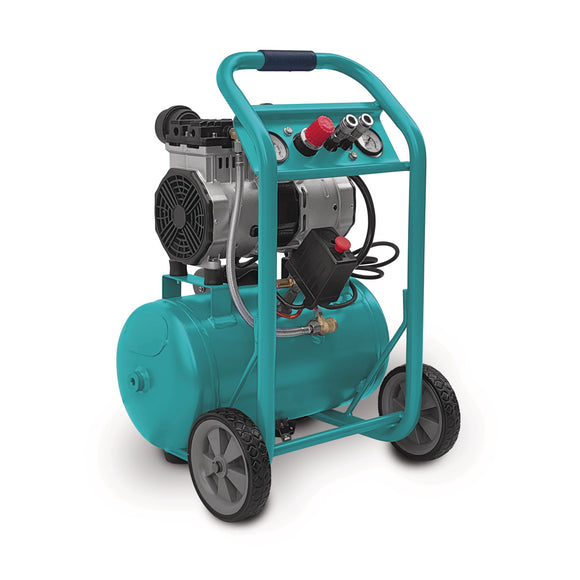

Piston compressor COMPACT-AIR 241/16 OF E-1
Piston compressor COMPACT-AIR 241/16 OF E-2
Piston compressor COMPACT-AIR 241/16 OF E-3
Piston compressor COMPACT-AIR 241/16 OF E-4
Piston compressor COMPACT-AIR 241/16 OF E-5

Piston compressor COMPACT-AIR 241/16 OF E

€281,67 EUR (€229,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 2005450 Barcode: 4036351356356

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping
Piston compressor COMPACT-AIR 241/.
  • Versatile in use
  • Switches and fittings are optimally protected by the tubular frame
  • Oil-free piston compressor, so no oil change necessary and no oil in the condensate
  • Compressed air extraction via two one-hand quick-release couplings
  • Pressure reducer for infinitely variable adjustment of the desired working pressure

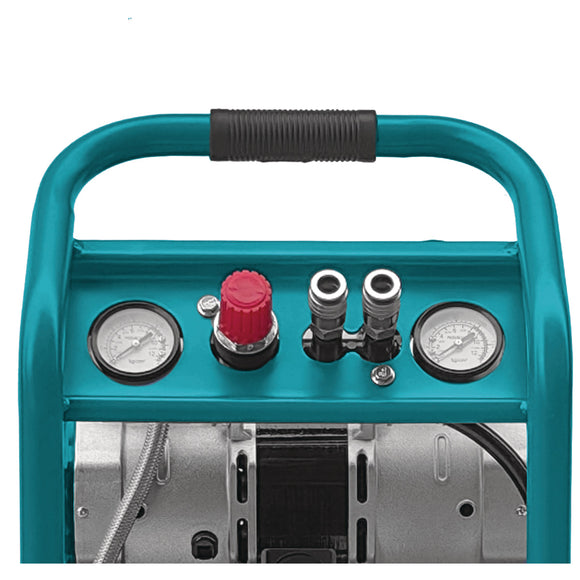

  • One pressure gauge each for displaying the tank and working pressure
  • Aluminum-wound electric motor equipped with circuit breaker
  • Sturdy wheels with solid rubber tires and wide wheelbase for comfortable transport even on uneven surfaces and a stable stand
  • Vibration-damping rubber feet
  • Rubberized handle to prevent slipping during transport
  • Powder-coated compressed air tank


.
  • Air outlet 1/4 "
  • Automatic pressure switch ✔
  • Compressor speed 2850 min¯¹
  • Connection cable 1.5 m
  • Diameter of piston 63.7 mm
  • Drive motor power 1 kW
  • Explanation filling capacity at 6 bar working pressure
  • Explanation sound power level Lw Sound power level according to DIN EN ISO 3744 (RL 2000/14/EG)
  • Explanation sound pressure level Lp Sound pressure level at a distance of 1 m according to DIN 45635 T 13
  • Filling capacity 120 l/min
  • Frequency 50 Hz
  • Height 650 mm
  • Length 460 mm
  • Maximum pressure 10 bar
  • Motor duty cycle 70 %
  • Motor output power 1 kW
  • Motor power (input power) 1.5 kW
  • Net weight 23 kg
  • Number of compressor stages 1
  • Number of cylinders 2
  • Piston stroke 13 mm
  • Pressure vessel capacity 16 l
  • Sound power level 84 dB(A)
  • Sound pressure level 64 dB(A)
  • Suction capacity 242 l/min
  • Supply voltage 230 V
  • Width 370 mm
