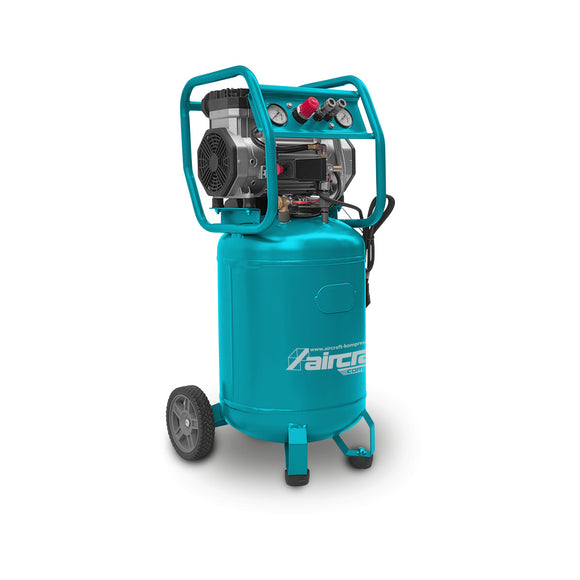

Piston compressor COMPACT-AIR 401/50 OF E-1
Piston compressor COMPACT-AIR 401/50 OF E-2
Piston compressor COMPACT-AIR 401/50 OF E-3
Piston compressor COMPACT-AIR 401/50 OF E-4
Piston compressor COMPACT-AIR 401/50 OF E-5

Piston compressor COMPACT-AIR 401/50 OF E

€404,67 EUR (€329,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 2005452 Barcode: 4036351356370

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping
Piston compressor COMPACT-AIR 401/.
  • Versatile in use

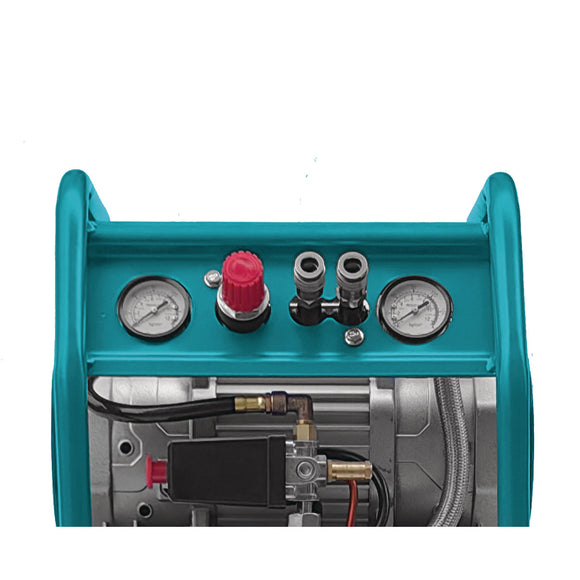

  • Switches and fittings are optimally protected by the tubular frame
  • Oil-free piston compressor, so no oil change necessary and no oil in the condensate
  • Compressed air extraction via two one-hand quick-release couplings
  • Pressure reducer for infinitely variable adjustment of the desired working pressure
  • One pressure gauge each for displaying the tank and working pressure
  • Aluminum-wound electric motor equipped with circuit breaker
  • Sturdy wheels with solid rubber tires and wide wheelbase for comfortable transport even on uneven surfaces and a stable stand
  • Vibration-damping rubber feet
  • Rubberized handle to prevent slipping during transport
  • Powder-coated compressed air tank


.
  • Air outlet 1/4 "
  • Automatic pressure switch ✔
  • Compressor speed 2850 min¯¹
  • Connection cable 1.5 m
  • Diameter of piston 69.7 mm
  • Drive motor power 1.5 kW
  • Explanation filling capacity at 6 bar working pressure
  • Explanation sound power level Lw Sound power level according to DIN EN ISO 3744 (RL 2000/14/EG)
  • Explanation sound pressure level Lp Sound pressure level at a distance of 1 m according to DIN 45635 T 13
  • Filling capacity 200 l/min
  • Frequency 50 Hz
  • Height 920 mm
  • Length 420 mm
  • Maximum pressure 10 bar
  • Motor duty cycle 70 %
  • Motor output power 2.1 kW
  • Motor power (input power) 2.2 kW
  • Net weight 46 kg
  • Number of compressor stages 1
  • Number of cylinders 2
  • Piston stroke 18 mm
  • Pressure vessel capacity 50 l
  • Sound power level 89 dB(A)
  • Sound pressure level 69 dB(A)
  • Suction capacity 400 l/min
  • Supply voltage 230 V
  • Width 420 mm

Add content using the options to the left

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.
