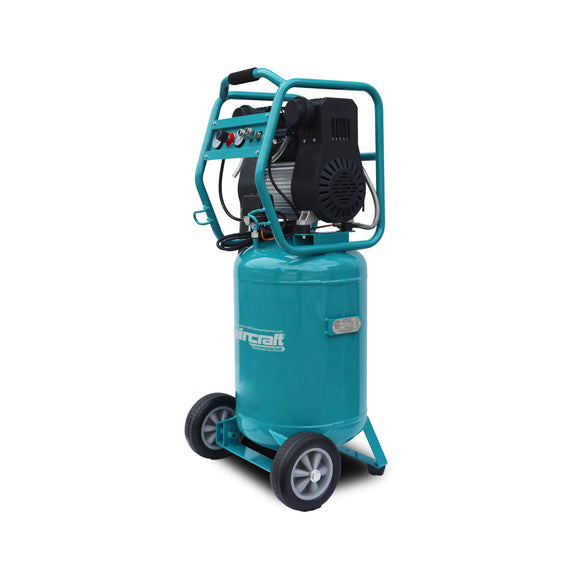

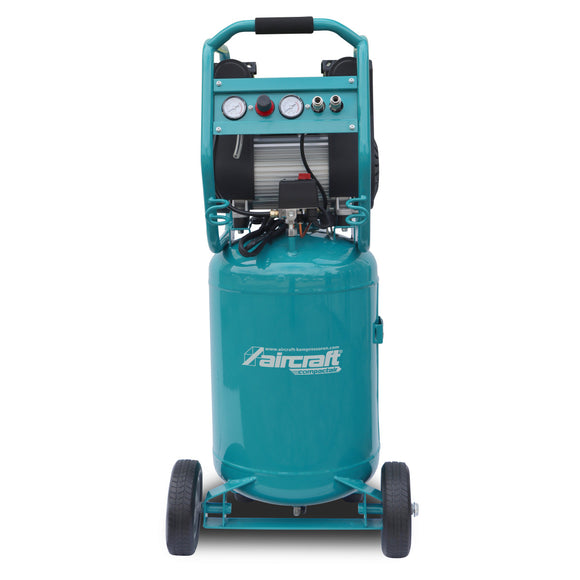

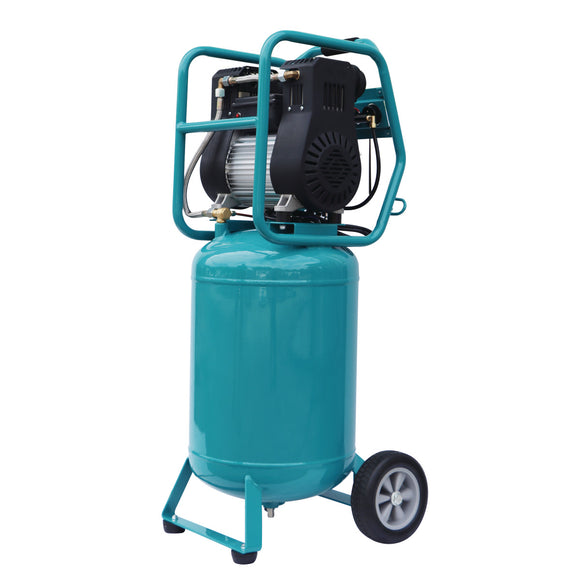

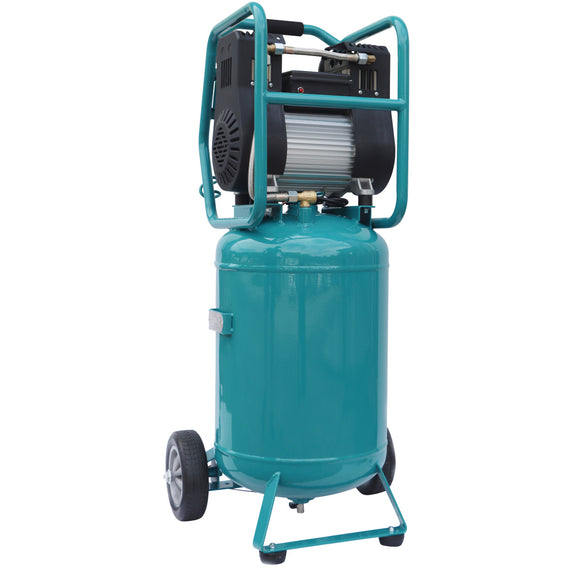

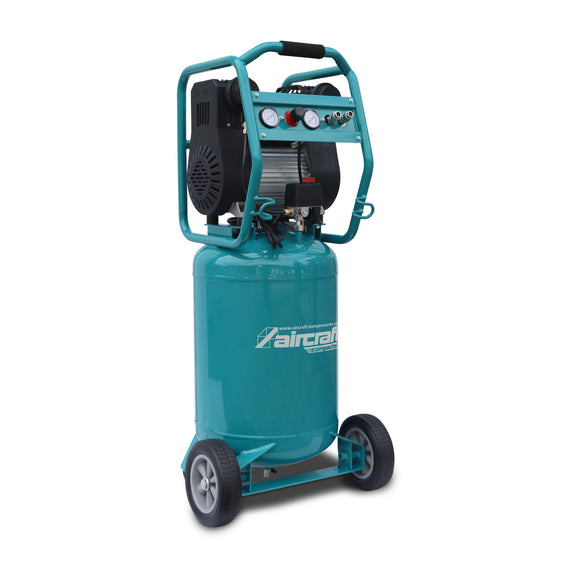

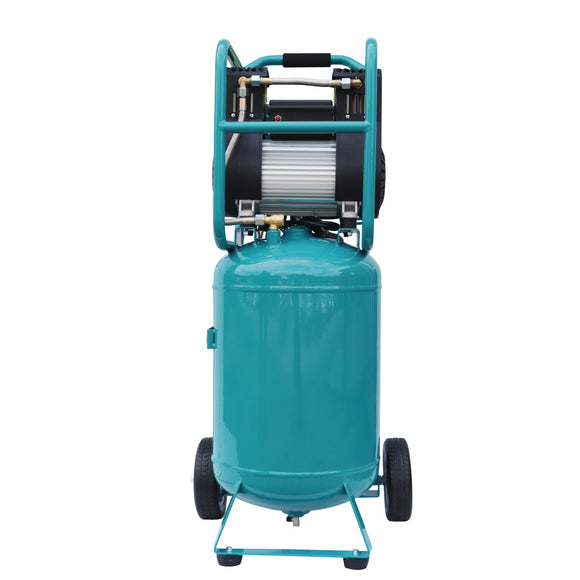

Piston compressor COMPACT-AIR 320/90 V OF E

€1.044,27 EUR (€849,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 2005499 Barcode: 4036351340904

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping
Piston compressor COMPACT-AIR 320/.
  • Very smooth operation and therefore very quiet
  • Oil-free piston compressor: no oil change necessary and no oil in condensate - best working quality with long service life of compressed air tools
  • Compressed air reducer for infinitely variable adjustment of the desired working pressure
  • High-quality CONDOR pressure switch
  • Electric motor equipped with motor protection switch
  • Fully automatic on-turn-off mode
  • One pressure gauge for displaying the container and working pressure
  • Compressed air container powder-coated


.
  • Air outlet 1/4 "
  • Compressor speed 1400 min¯¹
  • Connection cable 1.8 m
  • Connector CEE 7/4
  • Diameter of piston 69.7 mm
  • Explanation filling capacity at 6 bar working pressure
  • Explanation sound power level Lw Sound power level according to DIN EN ISO 3744 (RL 2000/14/EG)
  • Explanation sound pressure level Lp Sound pressure level at a distance of 1 m according to DIN 45635 T 13
  • Filling capacity 230 l/min
  • Frequency 50 Hz
  • Height 1212 mm
  • Length 440 mm
  • Maximum pressure 10 bar
  • Motor duty cycle 70 %
  • Motor output power 1.6 kW
  • Motor power (input power) 2.2 kW
  • Net weight 61 kg
  • Number of compressor stages 1
  • Number of cylinders 2
  • Piston stroke 30 mm
  • Pressure vessel capacity 90 l
  • Sound power level 90 dB(A)
  • Sound pressure level 72 dB(A)
  • Suction capacity 320 l/min
  • Supply voltage 230 V
  • Width 415 mm
