Piston compressor AIRSTAR 863/200

€2.397,27 EUR (€1.949,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 2007832 Barcode: 4036351336884

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

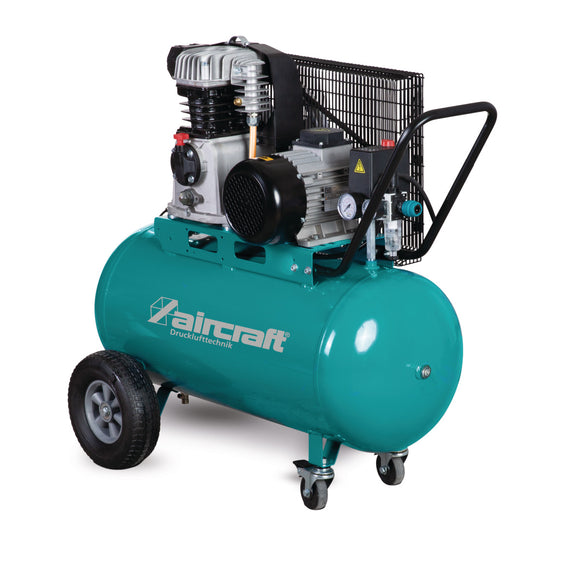

Piston compressor AIRSTAR 863/200.

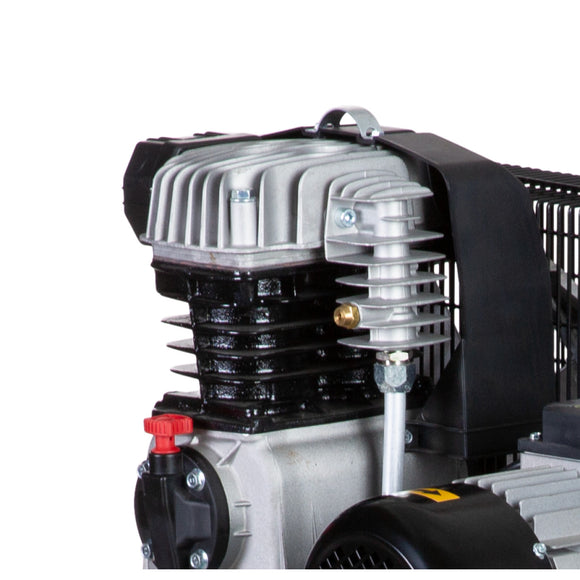

  • Two-cylinder high-performance units made of gray cast iron for a long service life.
  • Large fan wheel and a cooling air baffle on the cylinder for optimal cooling of the compressor
  • Quality electric motor with high starting torque
  • Electric motor equipped with motor protection switch
  • Aftercooler with cooling fins ensures a low tank inlet temperature and thus less moisture in the compressed air
  • Sturdy metal belt guard
  • Start-up capacitor and start-up relief valve ensure easy start-up on 230 volt models
  • Container pressure gauge "

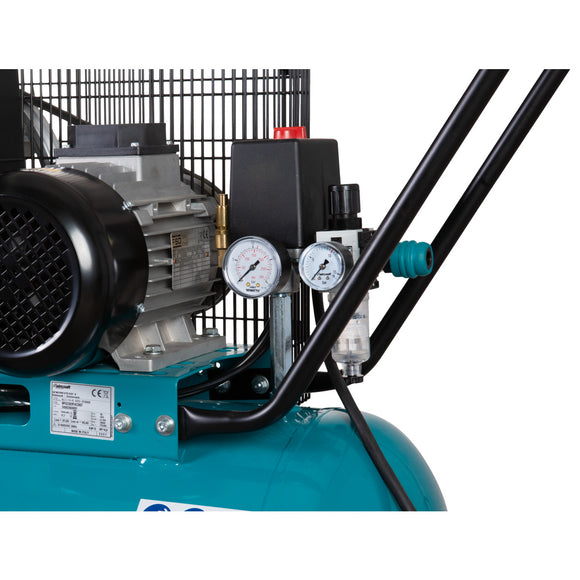

  • Filter pressure regulator with pressure gauge "" for regulated compressed air cleaned of condensate, dirt and oil
  • Ten-year warranty against rust-through on powder-coated compressed air reservoir
  • Includes high quality composite safety coupling and high quality CONDOR pressure switch
  • Large ergonomic handle

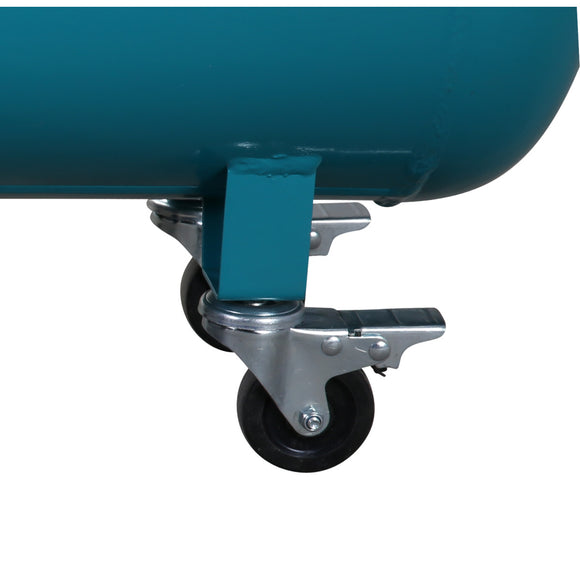

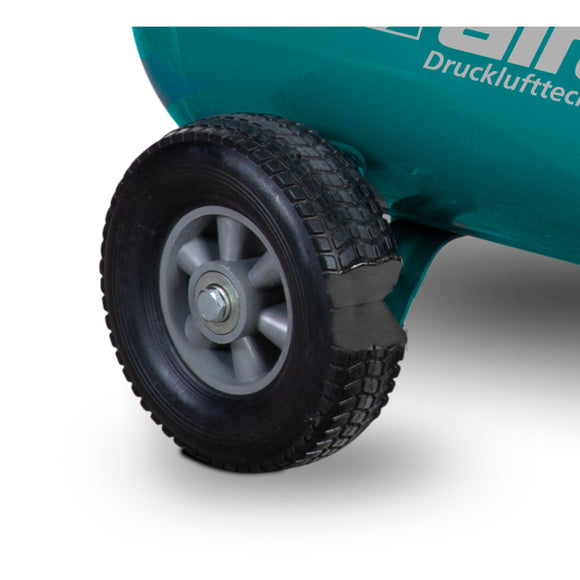

  • Stable steering chassis with parking brake in combination with large, puncture-proof PU wheels


.
  • Compressor speed 1240 min¯¹
  • Connection cable 2 m
  • Connector 400V CEE plug with phase inverter
  • Explanation filling capacity at 6 bar working pressure
  • Explanation sound power level Lw Sound power level according to DIN EN ISO 3744 (RL 2000/14/EG)
  • Explanation sound pressure level Lp Sound pressure level at a distance of 1 m according to DIN 45635 T 13
  • Filling capacity 680 l/min
  • Frequency 50 Hz
  • Height 1220 mm
  • Length 1440 mm
  • Maximum pressure 10 bar
  • Motor duty cycle 75 %
  • Motor output power 5.5 kW
  • Motor power (input power) 6.5 kW
  • Net weight 153 kg
  • Number of compressor stages 2
  • Number of cylinders 2
  • Piston stroke 78 mm
  • Pressure vessel capacity 200 l
  • Sound power level 95 dB(A)
  • Sound pressure level 79 dB(A)
  • Suction capacity 850 l/min
  • Supply voltage 400 V
  • Width 470 mm
