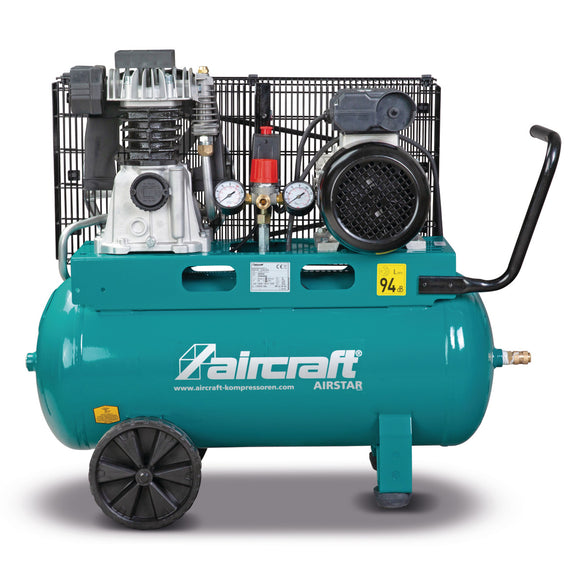

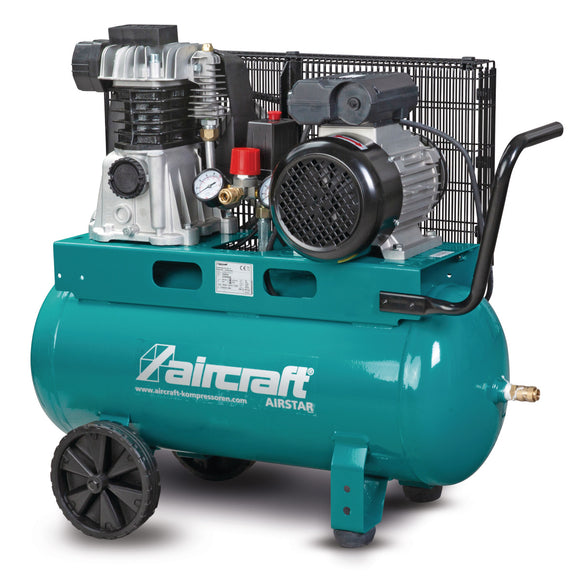

Mobile piston compressor with belt drive AIRSTAR 401/50 E 230V

€724,47 EUR (€589,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 2009413 Barcode: 4036351047933

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Only 1 in stock!
Description Features Delivery contents Shipping
Mobile piston compressor with belt drive AIRSTAR 401/50 E 230V.

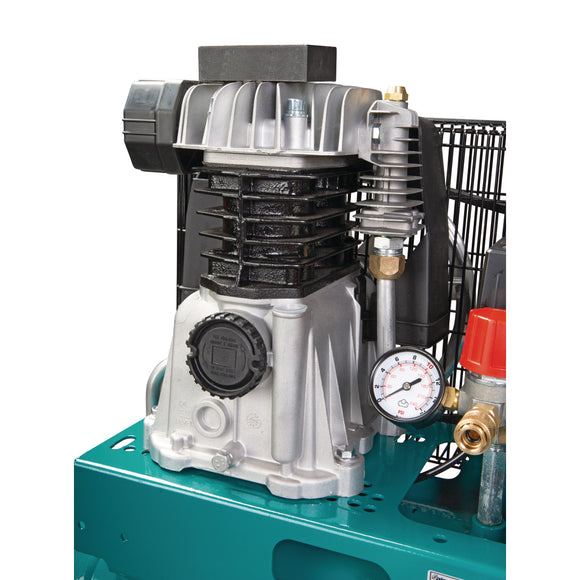

  • 2-cylinder high-performance units made of cast iron for a long service life.
  • Large fan wheel and a cooling air baffle on the cylinder for optimal cooling of the compressor

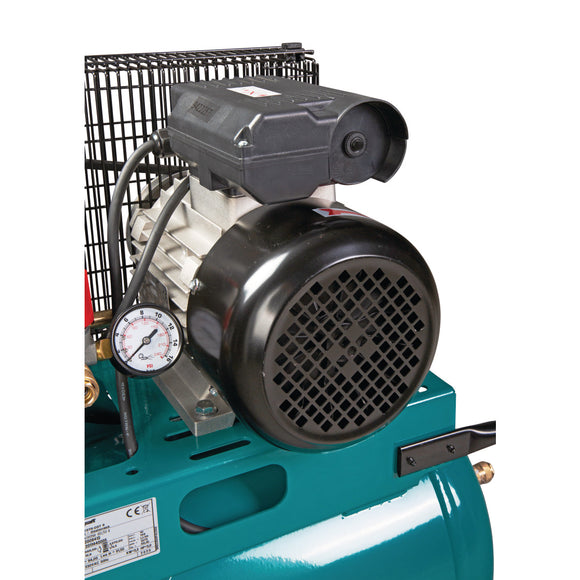

  • Quality electric motor with high starting torque
  • Electric motor equipped with motor protection switch
  • Aftercooler with cooling fins ensures a low tank inlet temperature and thus less moisture in the compressed air

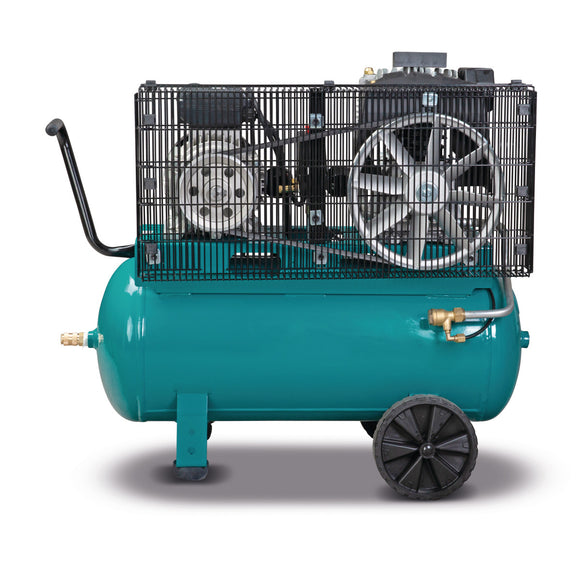

  • Sturdy metal belt guard
  • Start-up capacitor and start-up relief valve ensure easy start-up on 230 volt models
  • for easy reversal of direction of rotation
  • Air receiver equipped with safety valve, receiver pressure gauge and condensate drain valve
  • With all safety devices
  • Completely ready for connection
E-model equipment
  • Pressure reducer for stepless adjustment of the desired working pressure

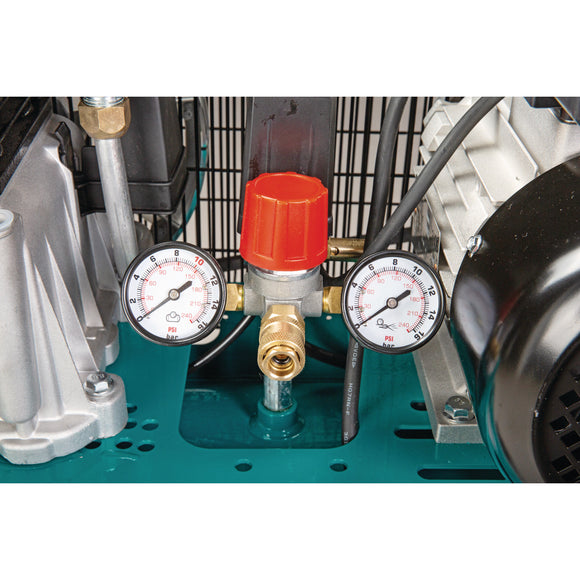

  • One pressure gauge each for indication of vessel and working pressure
  • Simple one-hand quick coupling
  • Automatic pressure switch

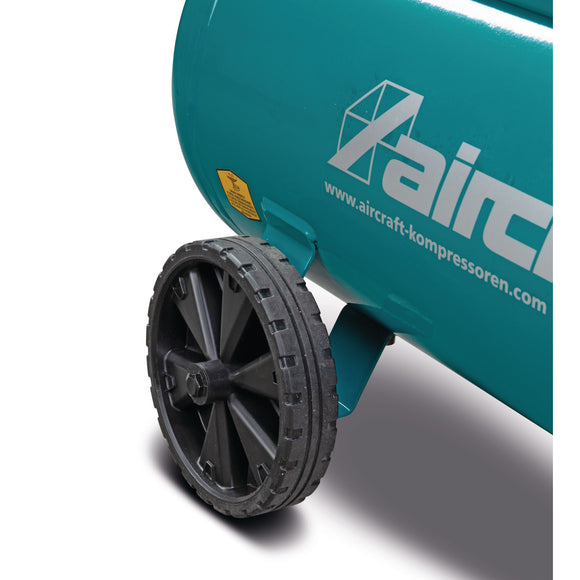

  • Plastic wheels at the rear
  • Rubber suction feet in front

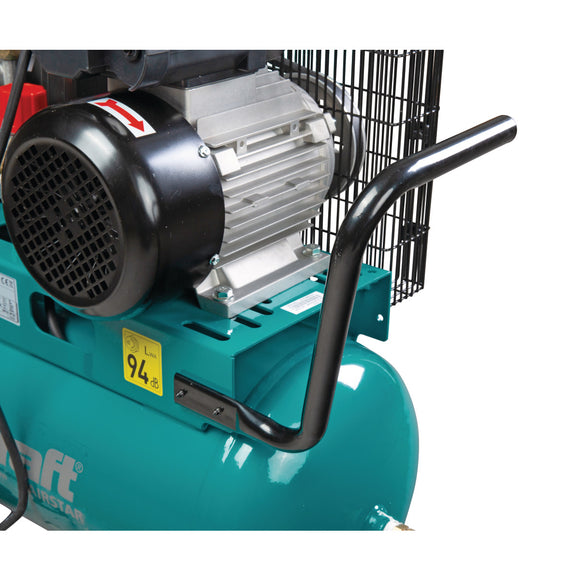

  • Single handle Detail illustration similar


.
  • Automatic pressure switch ✔
  • Compressor speed 1375 min¯¹
  • Explanation filling capacity at 6 bar working pressure
  • Explanation sound power level Lw Sound power level according to DIN EN ISO 3744 (RL 2000/14/EG)
  • Filling capacity 270 l/min
  • Frequency 50 Hz
  • Height 710 mm
  • Length 810 mm
  • Maximum pressure 10 bar
  • Motor output power 2.2 kW
  • Motor power (input power) 2.8 kW
  • Net weight 50.1 kg
  • Number of compressor stages 1
  • Number of cylinders 2
  • Pressure vessel capacity 50 l
  • Sound power level 94 dB(A)
  • Suction capacity 365 l/min
  • Supply voltage 230 V
  • Width 365 mm
